4 User Interface and Programming

4.1 Programming

4.1.1 Programming with the Numerical
Local Control Panel (LCP 21)
The FC 360 supports graphic and numerical local control
panels as well as blind covers. This chapter covers
4 4
programming with LCP 21. For programming with the
GLCP, see the VLT
Guide.
NOTICE
The frequency converter can also be programmed from a
PC via RS-485 com-port by installing the MCT-10 Setup
software. This software can either be ordered using code
number 130B1000 or downloaded from the Danfoss Web
site: www.danfoss.com/BusinessAreas/DrivesSolutions/
softwaredownload

4.1.2 LCP 21

The LCP 21 is divided into four functional sections.
A. Numeric display
B. Menu key
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
1
2
4
9
6
8
D
13

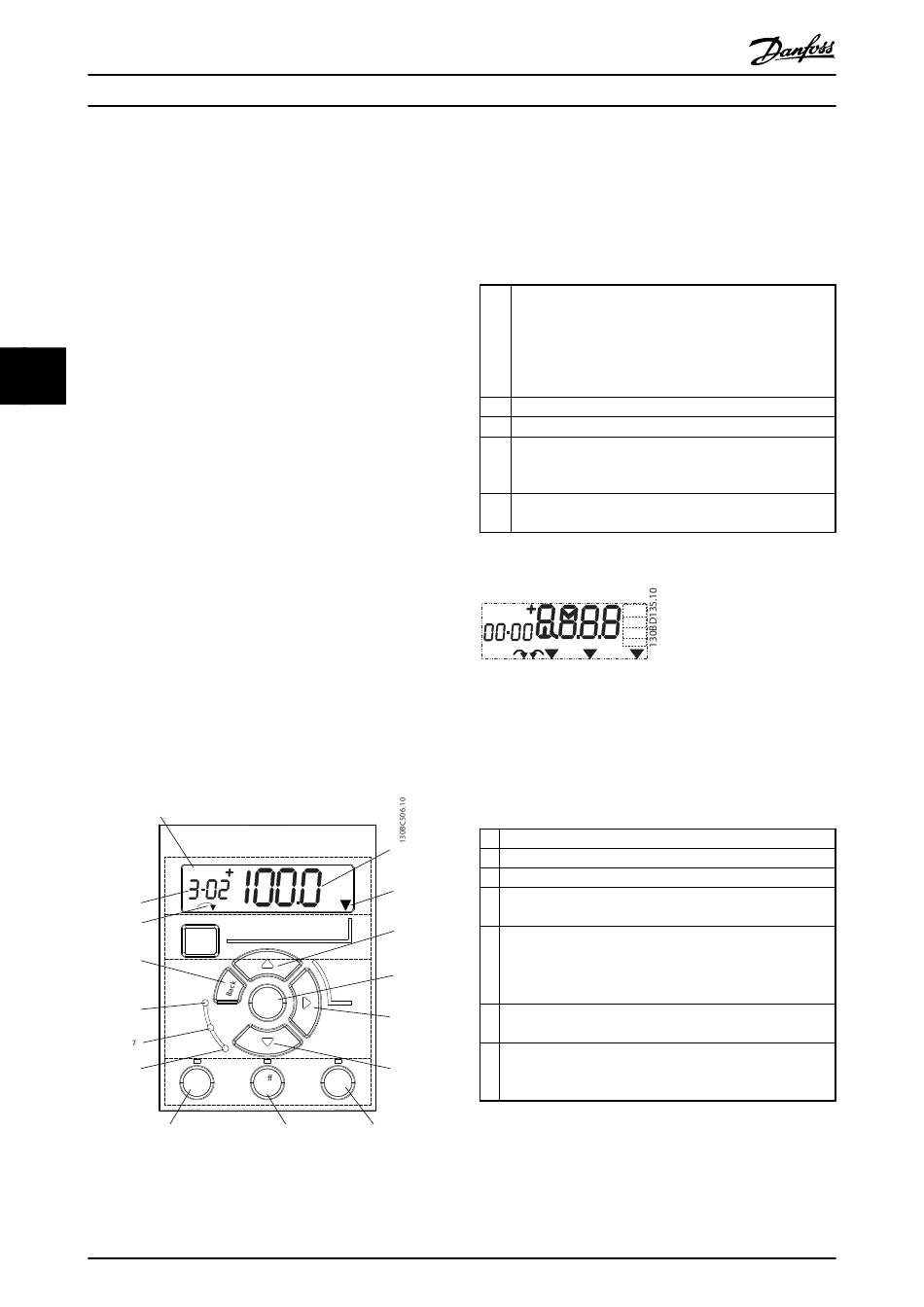

Illustration 4.1 View of the LCP 21
18
®
AutomationDrive FC 360 Programming
A
Setup 1
Status Quick Main
B
Menu Menu
Menu
C
On
OK
Warn
Alarm
O
Hand Auto
Reset
On On
14
MG06A302 - VLT
®
VLT AutomationDrive FC 360 Quick Guide
A. Numeric Display
The LCD-display is back-lit with 1 numeric line. All data is
displayed in the LCP.
1 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-up differ, both numbers are shown in
the display (Setup 12). The number flashing, indicates the
edit set-up.
2 Parameter number.
3 Parameter value.
4 Motor direction is shown to the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counterclockwise.
5 The triangle indicates if the LCP is in status, quick menu or
main menu.
Table 4.1 Legend to Illustration 4.1
Setup 12
p5
INDEX
Illustration 4.2 Display Information
B. Menu Key
Press [Menu] to select between status, quick menu or main
menu.
C. Navigation keys and indicator lights (LEDs)
6 Green LED/On: Control section is working.
3
7 Yellow LED/Warn.: Indicates a warning.
8 Flashing Red LED/Alarm: Indicates an alarm.
5
9 [Back]: For moving to the previous step or layer in the
navigation structure
10
10 Arrows [
parameters and within parameters or increasing/decreasing
11
parameter values. Can also be used for setting local
reference.
11 [OK]: For selecting a parameter and for accepting changes to
12
parameter settings
12 [►]: For moving from left to right within the parameter value
10 in order to change each digit individually. See description in
4.1.3 The Right-Key Function.
Table 4.2 Legend to Illustration 4.1
15
®
is a registered Danfoss trademark
AHP
VkW
srpm
Hz%
n1 n2 n3
p4
p3 p2 p1
▲ ▼
] [ ]: For maneuvering between parameter groups,
