Exploded View Of The Fcd 302 - Danfoss VLT Decentral Drive FCD 302 Operating Manual

Installation

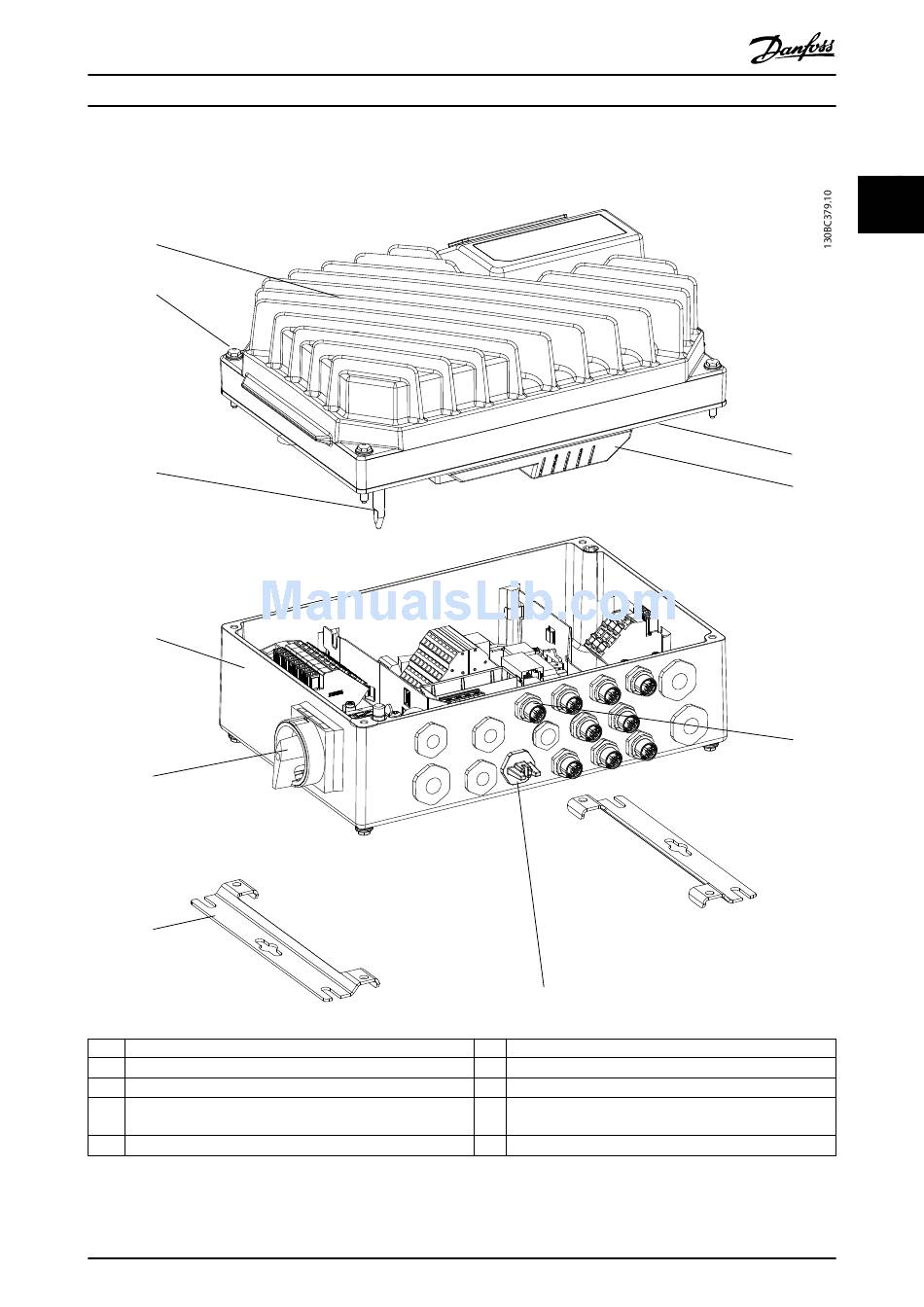

2.2 Exploded View of the FCD 302

1
2
5
6
9
10
1 Inverter part
2 Fastening screws (4 x, 1 in each corner)
3 Sealing gasket
4 Inverter part plastic cover
5 Ground connection pin
Illustration 2.1 Exploded View Small Unit
MG04F402
Operating Guide
6 Installation box
7 Display connection
8 Access to USB port
9 Service switch-motor side (alternatively, switch located on
mains side, or not mounted)
10 Flat mounting brackets
Danfoss A/S © 05/2016 All rights reserved.
8
2 2
3
4
7
9
