Parts Replacement and Cleaning Procedure > Switches > Removing the Front Door Switch

Switches

Removing the Front Door Switch

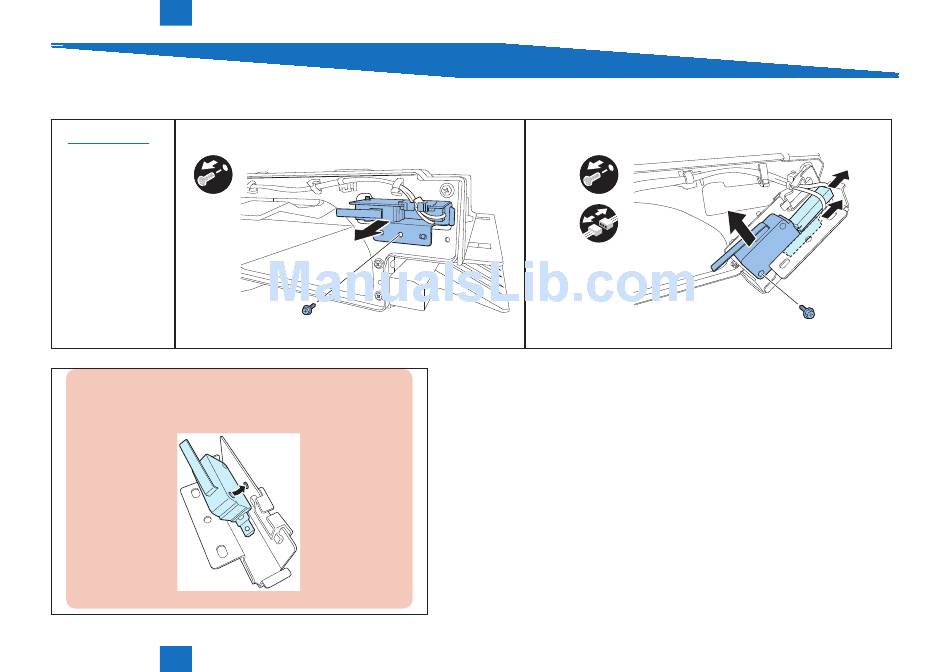

1) Remove the front cover.
2) Remove the screw, and then remove the switch along with the support plate.
(Refer to page 4-7)
x1
CAUTION:
When attaching the front door switch to the support plate, check that the
boss of the support plate is in the hole on the switch.
4
Parts Replacement and Cleaning Procedure > Switches > Removing the Front Door Switch
F-4-52
3) Remove the screw and disconnect the 2 connectors, and then remove the front
door switch.
x1
x2
F-4-50
4-23
F-4-51
4-23
