Parts Replacement and Cleaning Procedure > Motors > Removing the Feed Motor (M1)

Motors

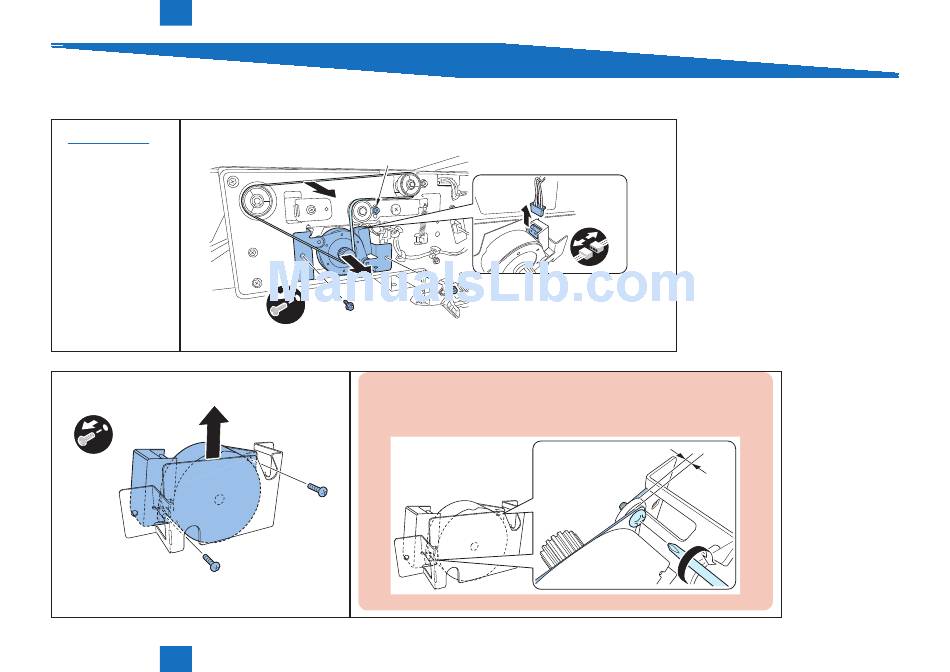

Removing the Feed Motor (M1)

1) Remove the rear cover.
2) Remove the 2 screws and disconnect the connector, and remove the belt by loosening the screw [A] of the belt
(Refer to page 4-7)
tensioner, and then remove the feed motor along with its support plate.
3) Remove the 2 screws, and then remove the feed motor.
x2
4
Parts Replacement and Cleaning Procedure > Motors > Removing the Feed Motor (M1)
A
x2
CAUTION:
When attaching the feed motor to the support plate, tighten the 2 screws in such a manner
that the clearance between the motor and support place is about 1.0 mm to 1.5 mm.
F-4-32
x1
F-4-31
Approx. 1.0mm to 1.5mm
F-4-33
4-16
4-16
