Technology > Feed Unit > Feeding Paper to Processing Tray Unit

Feed Unit

Outline

The feed unit feeds the paper delivered from the host machine and feeds it to the processing
tray unit.

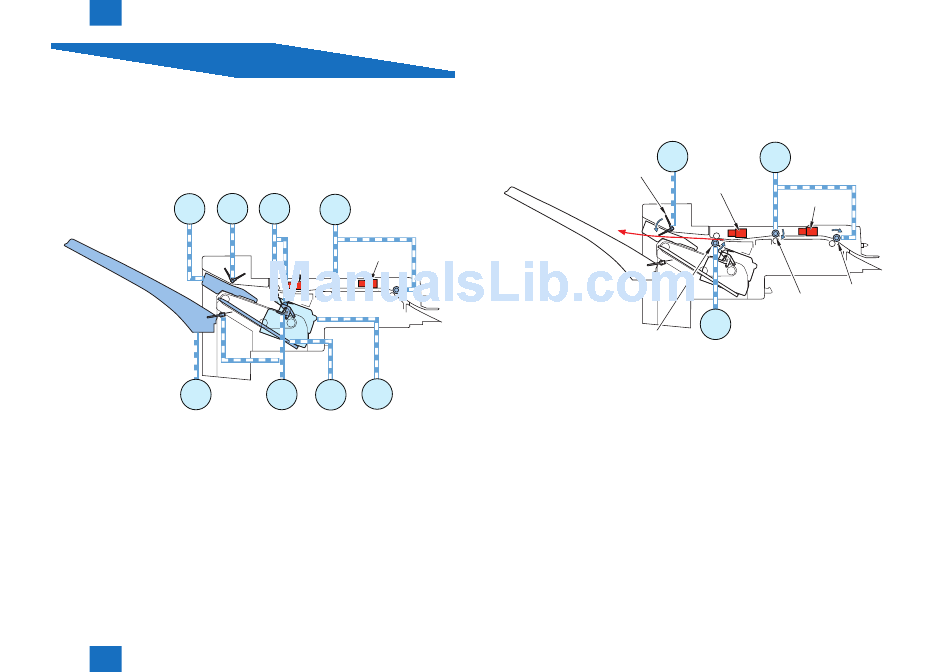

Two sensors, an inlet sensor (S1) and a delivery sensor (S2), are provided along the paper
feed path in the feed unit to detect the paper feed state and jam.
M4/5
M3
M8
M1
Feed Motor
M2
Delivery Motor
M3
Paddle Motor
M4
Front Alignment Motor
M5
Rear Alignment Motor
M6
Tray Auxiliary Guide Motor
2
Technology > Feed Unit > Feeding Paper to Processing Tray Unit
M2
M1
S2
S1
M7
M6
M9
F-2-8
M7
Gripper Motor
M8
Stack Tray Shift Motor
M9
Staple Motor
S1
Inlet Sensor
S2
Delivery Sensor
T-2-2

Feeding Paper to Processing Tray Unit

The paper delivered from the host machine is fed by the inlet roller, feed roller, and delivery
roller.
The paper delivered by the delivery roller is stacked on the processing tray by the paddle.
M3
Paddle
Delivery Sensor (S2)
Delivery Roller
M1
Paddle Motor
Feed Motor
Inlet Sensor (S1)
Inlet Roller
Feed Roller
M2
Delivery Motor
2-6
F-2-9
2-6
