Technology > Processing Tray Unit > Alignment / Shifting Operation

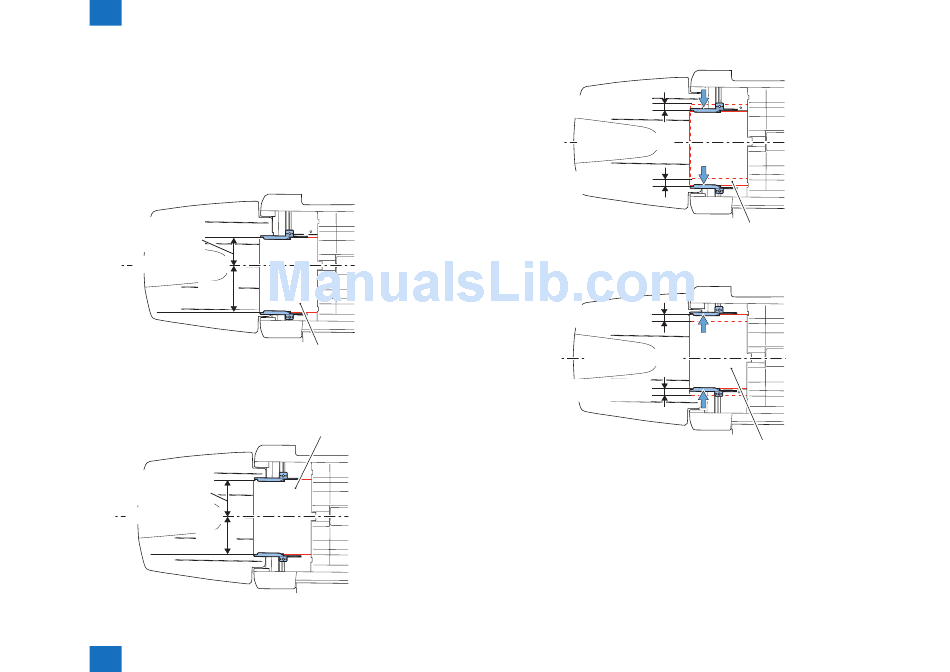

● Shifting Operation in Non-sort / Sort Mode
(1) After alignment of the sheet stacked on the processing tray lastly, it is shifted according
to the paper width.
• Front / Rear shift position (when the paper width is 210 mm or more)
The shift position is the same as the alignment position
• Front shift position (when the paper width is from 180 mm or more to less than 210
mm)
The position that aligns
paper by the front and
rear alignment plates
Middle of Feeding Path
110mm
• Rear shift position (when the paper width is from 180 mm or more to less than 210
mm)
The position that aligns
paper by the front and
rear alignment plates
Middle of Feeding Path
85mm
2
Technology > Processing Tray Unit > Alignment / Shifting Operation
Paper (when aligning in the front)
F-2-23
Paper (when aligning in the rear)
F-2-24
• Front shift position (when the paper width is less than 180 mm)
Alignment position
+10mm front side
Middle of Feeding Path
Alignment position
+10mm front side
Paper (when aligning in the front)
• Rear shift position (when the paper width is less than 180 mm)
Alignment position
+10mm rear side
Middle of Feeding Path
Alignment position
+10mm rear side
Paper (when aligning in the rear)
2-14
F-2-25
F-2-26
2-14
