1

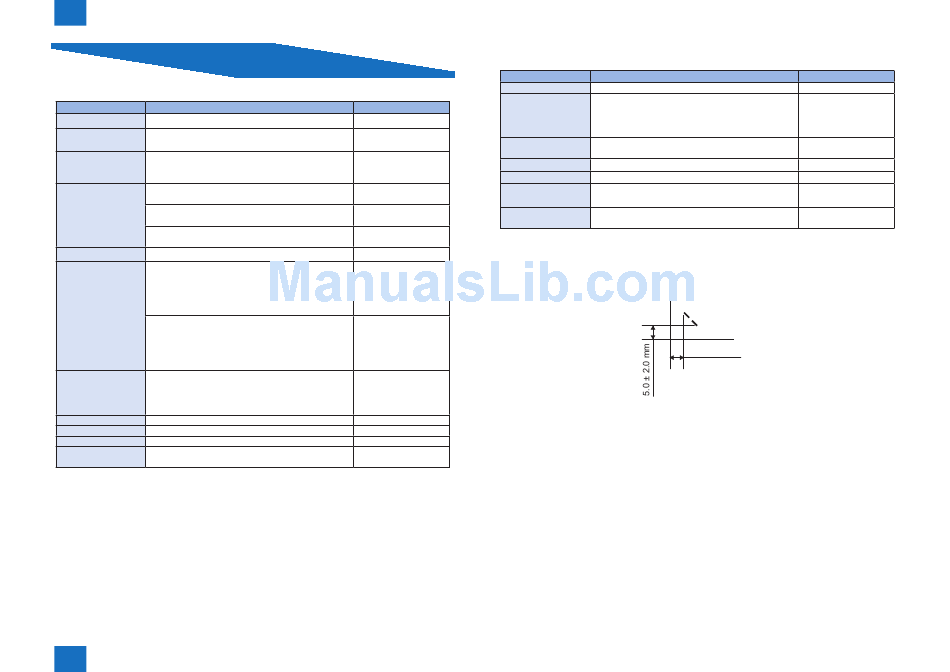

Product Outline > Specifications
Specifications
● Finisher Unit
Item
Specifications
Stacking method
Stack tray: moving up and down
Stacking orientation
Face down
Stacking paper size
Feed direction: 139 to 356 mm
(extra-length paper: 139 to 630 mm)
Cross feed direction: 98 to 216 mm
Alignment stacking
[Non sort]
paper size
Cross feed direction: 98 to 216 mm
[Sort]
Cross feed direction: 138 to 216 mm
[Staple sort]
Cross feed direction: 182 to 216 mm
Paper weight
64 to 128 g/m2
Stacking capacity
- Processing tray
[Non sort / sort]
6 sheets or less
[Staple sort]
50 sheets or less
- Stack tray
[Non sort / sort]
73.5 mm or less in height (equivalent of 500 sheets)
[Staple sort]
73.5 mm or less in height, or 22 sets or less
Mixed stacking
[Non sort / sort]
capacity
73.5 mm or less in height
[Staple sort]
73.5 mm or less in height, or 22 sets or less
Dimensions
263 mm (H) × 798 mm (W)× 395 mm (D)
Weight
Approx. 10.5 kg
Power supply
From host machine: 24V, 5V
Power consumption
Standby: 2.5 W or less
Operating: 50 W or less
1
Product Outline > Specifications
● Staple Unit
Stapling method
Stapling capacity
Remarks
Stapling paper size
Staple supply
Staple detection
Manual stapling
Initial feed of staple
head
• Staple Position
Front 1-point stapling (45 degrees)
- Equivalent of 80 g/m2
paper
- Equivalent of 80 g/m2
paper
T-1-1
Item
Specifications
Punching by rotating cam
50 sheets
Paper thickness: 5.7 mm or less
A4R, B5R, LGL, LTRR, EXECR, 16KR
Special staple cartridge (5000 staples)
Provided
Not provided
Provided
5.0 ± 2.0 mm
1-3
Remarks
- Flat clinch
- Equivalent of 80 g/m2
paper
- Including 2 sheets of
128 g/m2 paper
T-1-2
F-1-1
1-3
