Parts Replacement and Cleaning Procedure > Finisher > Detaching the Finisher from the Host Machine

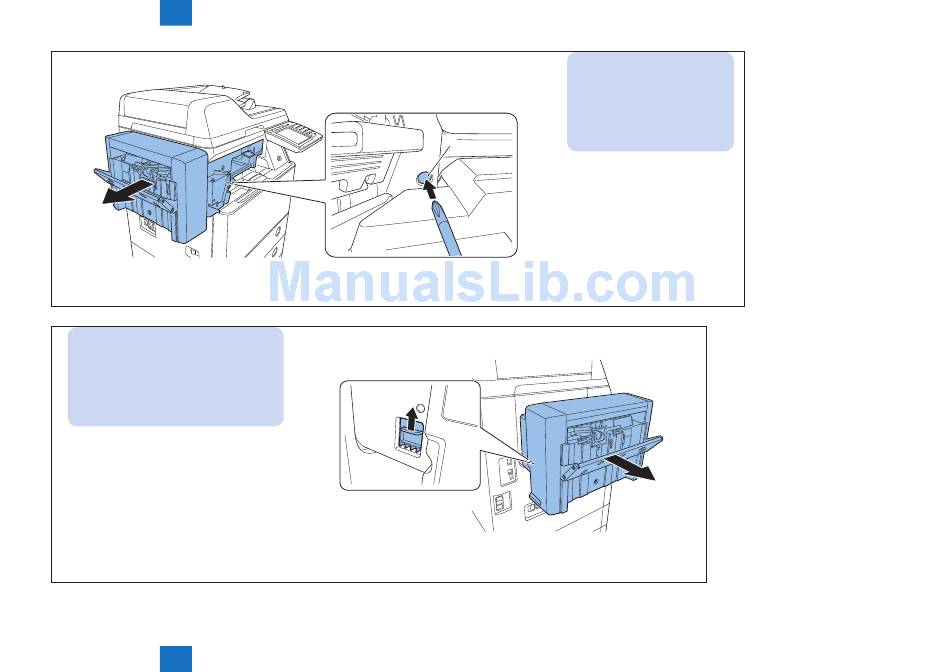

4) Insert a screwdriver or the like in the hole [A] to release the hook, and then slide the finisher leftward until it stops.
CAUTION:
The hook may not be released completely
with the finisher at the leftmost position.
In this case, slide the finisher 1-2 cm back
and raise the lever to release the hook.
4
Parts Replacement and Cleaning Procedure > Finisher > Detaching the Finisher from the Host Machine
A
5) While releasing the hook by raising the lever, remove the finisher from the host machine.
NOTE:
After releasing the hook by
sliding the finisher 2-3 cm, you
can remove the screwdriver or
the like.
F-4-4
F-4-5
4-3
4-3
