Technology > Processing Tray Unit > Alignment / Shifting Operation

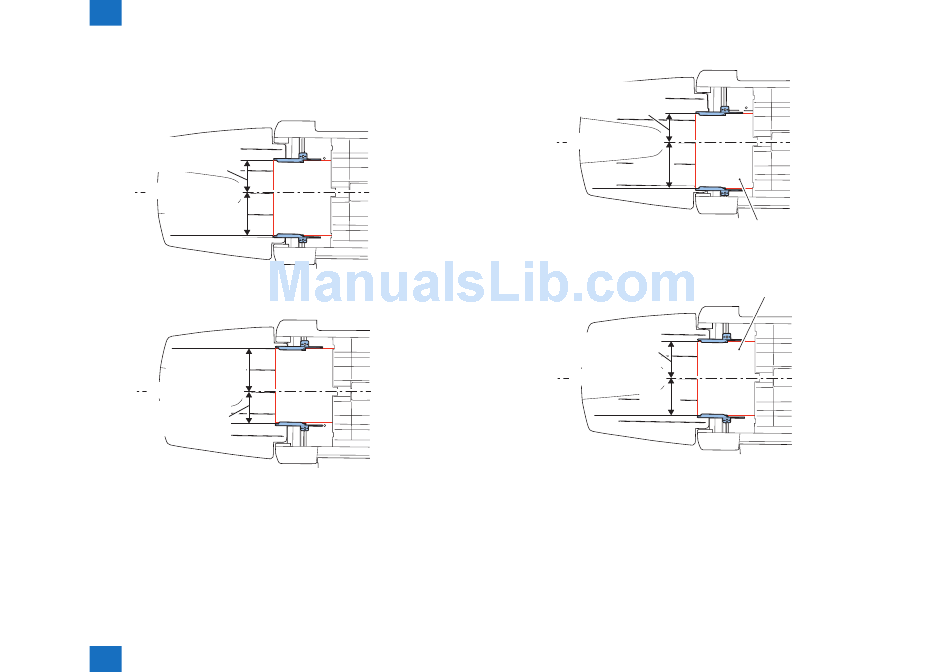

● Shifting Operation in Staple Mode
(1) After completion of stapling, the paper stack is shifted according to the paper width.
• Front shift position (when the paper width is 210 mm or more)
The position that aligns
paper by the front and
rear alignment plates
Middle of Feeding Path
Half of Paper Width
+10mm
• Rear shift position (when the paper width is 210 mm or more)
Half of Paper Width
+10mm
Middle of Feeding Path
The position that aligns
paper by the front and
rear alignment plates
2
Technology > Processing Tray Unit > Alignment / Shifting Operation
• Front shift position (when the paper width is less than 210 mm)
• Front shift position (when the paper width is less than 210 mm)
F-2-27
F-2-28
The position that aligns
paper by the front and
rear alignment plates
Middle of Feeding Path
110mm
Paper (when aligning in the front)
Paper (when aligning in the rear)
The position that aligns
paper by the front and
rear alignment plates
Middle of Feeding Path
85mm
2-15
F-2-29
F-2-30
2-15
