4
Parts Replacement and Cleaning Procedure > Main Units > Removing the Upper Processing Tray Unit (Front / Rear)

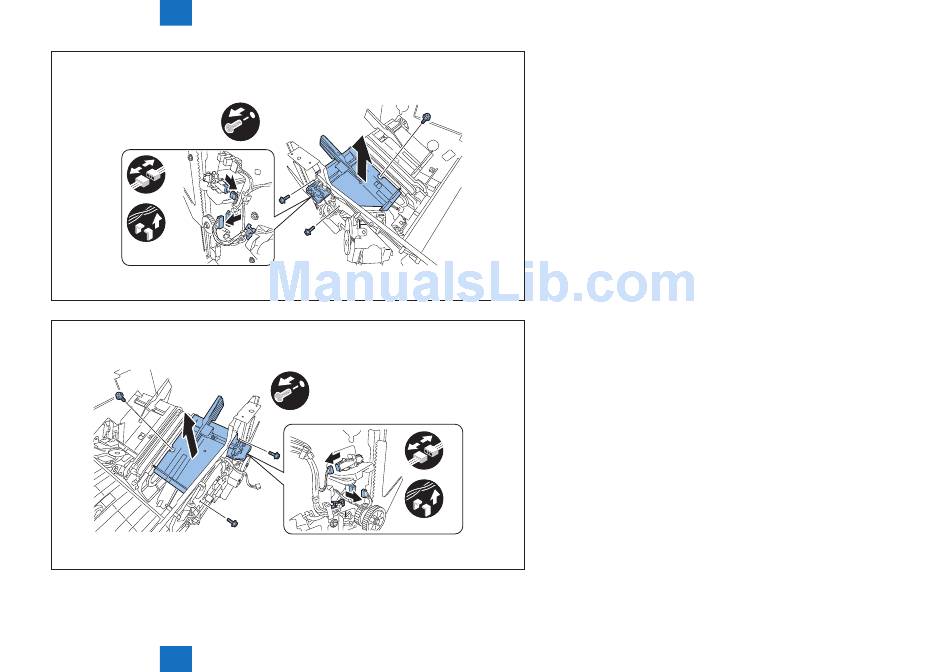

10) Remove the 3 screws and disconnect the 2 connectors, and then release the harness from the harness
guide to remove the upper processing tray unit (front).
x2
x1
11) Remove the 3 screws and disconnect the 2 connectors, and then release the harness from the harness
guide to remove the upper processing tray unit (rear).
4
Parts Replacement and Cleaning Procedure > Main Units > Removing the Upper Processing Tray Unit (Front / Rear)
x3
x3
F-4-28
x2
x1
F-4-29
4-14
4-14
