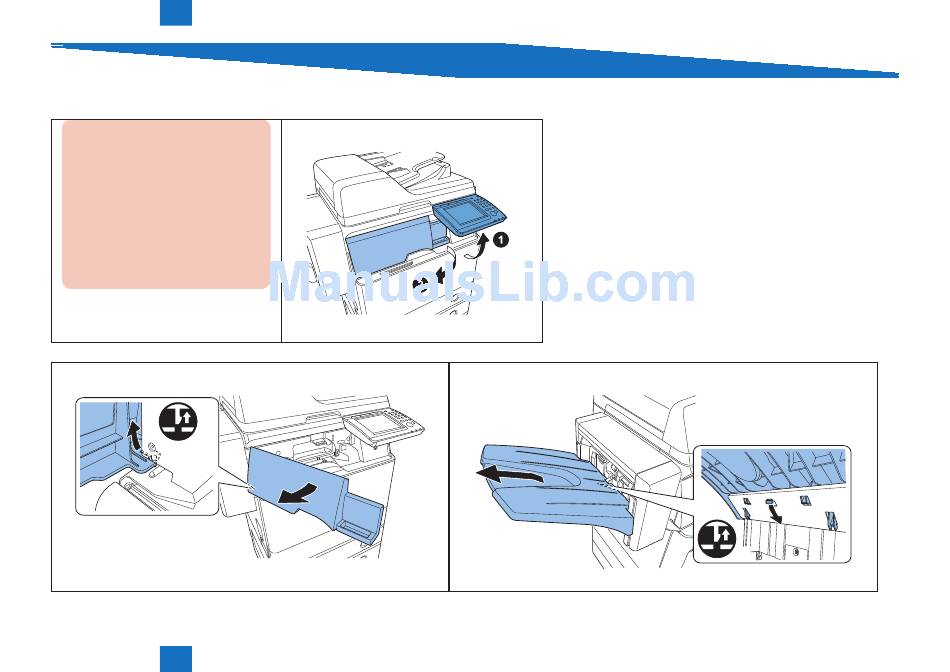

Parts Replacement and Cleaning Procedure > Finisher > Detaching the Finisher from the Host Machine
Finisher

Detaching the Finisher from the Host Machine

CAUTION:
• When detaching this finisher from the
host machine, be sure to check that
the host machine has been turned
off and its power plug has been
disconnected from the outlet.
• When disassembling or assembling
this finisher, remove it from the host
machine following the specified
procedure.
2) Release the hook to remove the front door.
x1
4
Parts Replacement and Cleaning Procedure > Finisher > Detaching the Finisher from the Host Machine
1) Lift the control panel and open the front door.
3) Release the hook to remove the stack tray.
F-4-2
F-4-1
4-2
x1
F-4-3
4-2
