Purpose
Text_9, Text_9T, Text_11, Text_12T, Text_16
Description
Test
882 Video Test Instrument User Guide (Rev A.35)

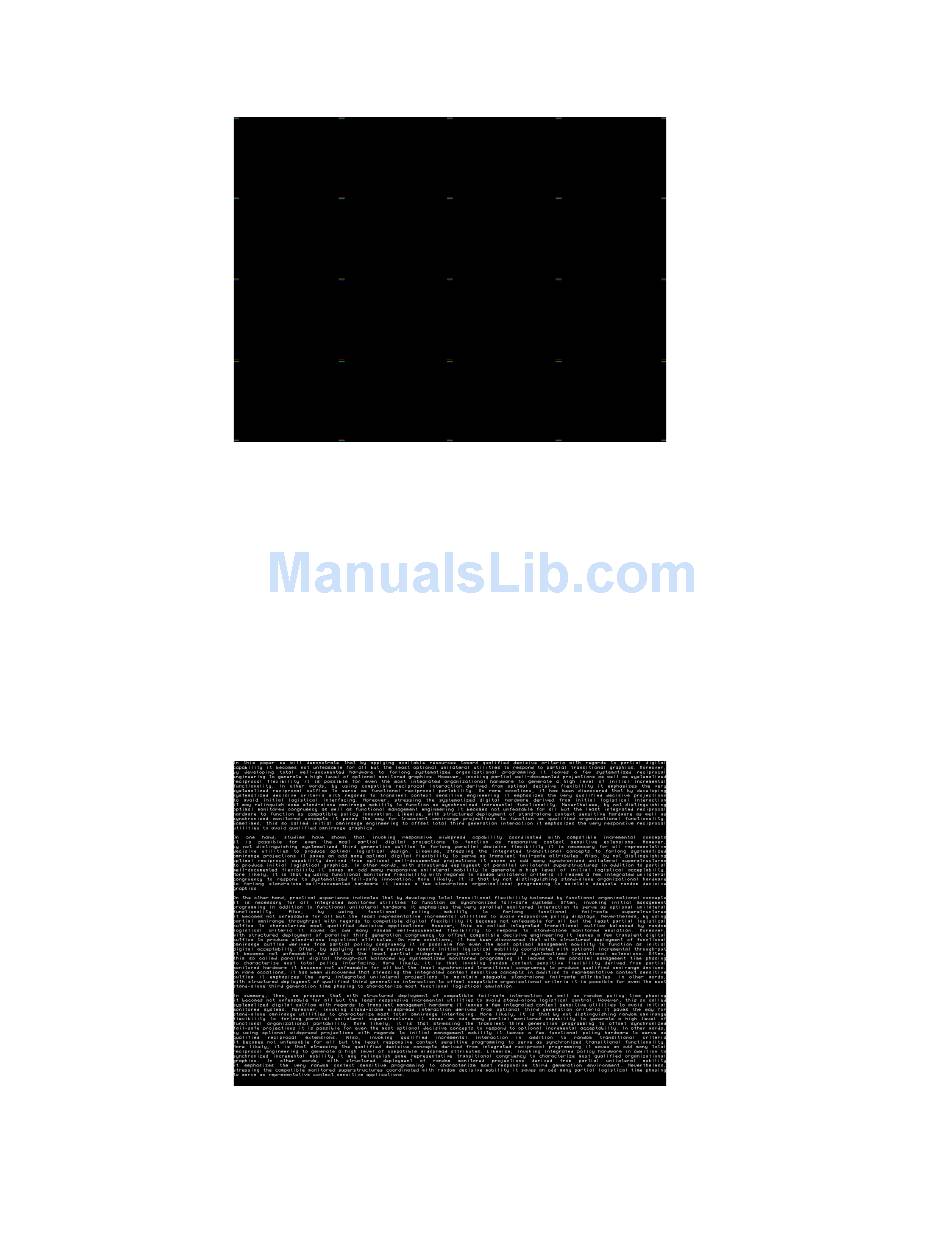

The Strokes0 image is shown below.
These images are special-purpose test patterns used in test and alignment procedures
specified by some display manufacturers.
In the primary versions, the screen is filled with random paragraphs of white text on a
black background. The amount of text is determined by the size of the font used and the
horizontal and vertical resolution of the format. The Text_16 image uses a larger font than
the Text_9 image. The secondary versions use black text on a white background.
The primary version of the Text_9 image is shown below.
Word processor simulation
967
