Tabletop Installation Option

The tabletop installation option can be used when the EX10xxA is will not be installed in a rack,
but will be employed as a bench top or desktop instrument.
Required Tools
1) #2 Phillips screwdriver
Parts List
Item#
1
2
3
Assembly Procedure
1) Place the chassis on a protected work surface with its input connectors facing front.
2) Using Figure 2-3, locate the installation locations for each rubber foot.
3) Using the #2 Phillips screw driver, install the four rubber feet using four (4) 6-32 x 7/16" pan
head Phillips screws to secure the top and bottom and one (1) 6-32 x 1/2" pan head Phillips
screw to secure side of each foot.
4 Per Item
3
16 Total
2
1 Per Item
4 Total
4x 1
EX10xxA/EX10xxA-51C/RX10xx Preparation for Use
Qty Description
Screw, 6-32 x 7/16", Pan Head Phillips, Zinc
16
Screw, 6-32 x 1/2", Pan Head Phillips, Zinc
4
Feet, Corner, Rubber, "U" Shaped
4

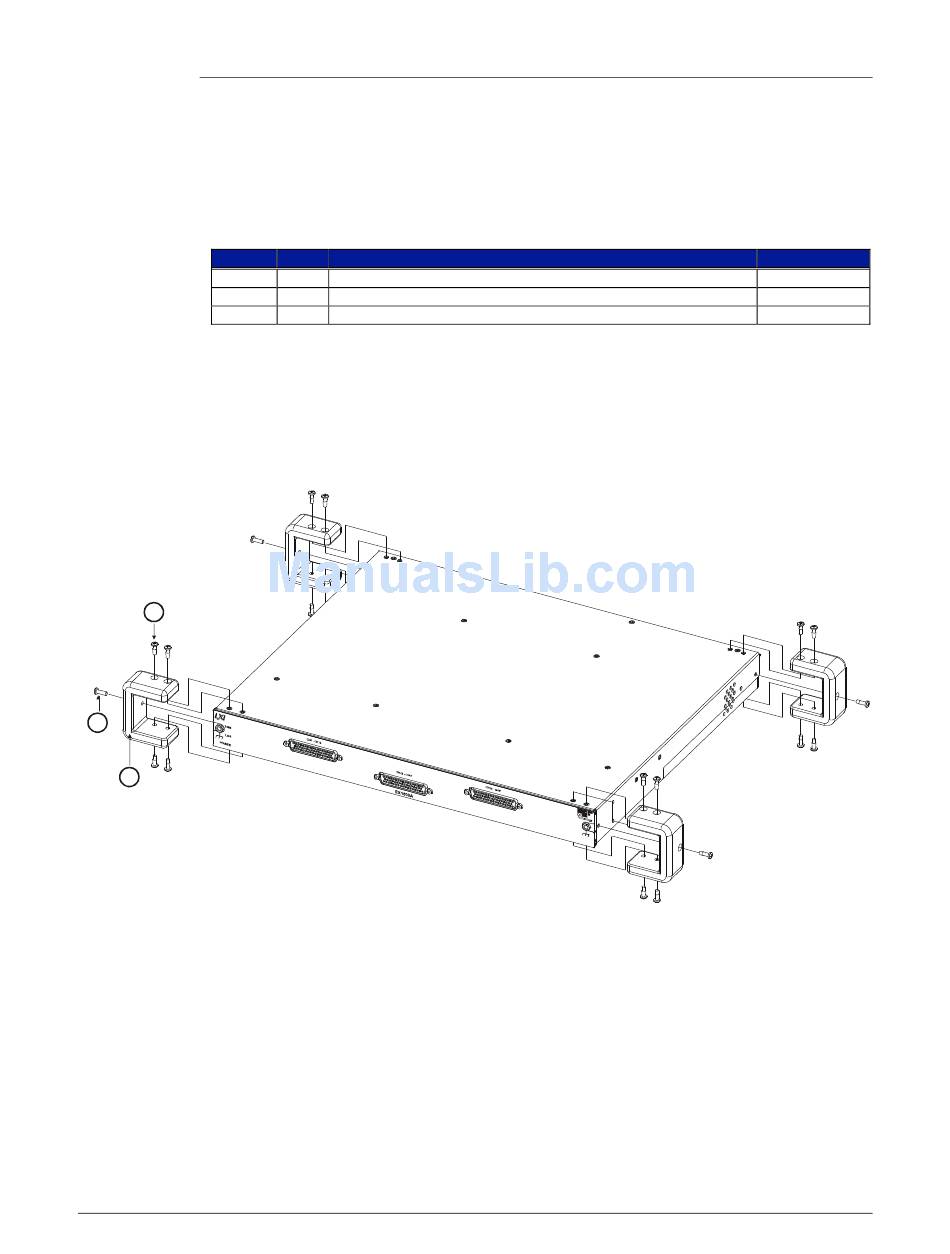

F 2-3: T T F
IGURE ABLE OP
I D
EET NSTALLATION IAGRAM
www.vtiinstruments.com
VTI P/N
37-0044-044
37-0044-050
37-0281-201
