3) Once the Factory Mode is enabled successfully, in the browser's address bar, replace
"factory.cgi" with "fullcal.cgi?" and then press Enter in order to access to the Factory
Calibration page.
4) On the Factory Calibration page, select the appropriate DMM from the DMM Model drop
menu.
5) Enter the LAN/GPIB Gateway's IP address in the LAN/GPIB Gateway Address field.
6) Enter the DMM's GPIB address (example: gpib0, 1) in the GPIB Address field. This can be
obtained from LAN/GPIB Gateway's web page. Refer to the LAN/GPIB Gateway's user's
manual for more information.
7) Click the Submit button to begin calibration.
8) Once calibration is complete, the calibration file can be retrieved from EX10xxA/RX10xx SFP
using the Get Calibration Files link in the command menu.
NOTE The NFS settings are optional. Enabling NFS will cause a log to be stored as well as a new
calibration file on the NFS Host.
M C
ONITORING ALIBRATION
Once the Submit button is clicked, the web page redirects to a status web page and will indicate that
factory calibration has started successfully. If this page indicates an error during calibration, one of
the previous steps may not have been followed correctly or there may be a problem with the
EX10xxA/RX10xx. If a problem occurs during calibration, an error message is displayed on the
screen next to the step that failed. If the progress reaches Calibration Completed and no steps
report Failed or Aborted, then the factory calibration has completed successfully. If a
Failed/Aborted status appears, the EX10xxA/RX10xx may require repair.
308

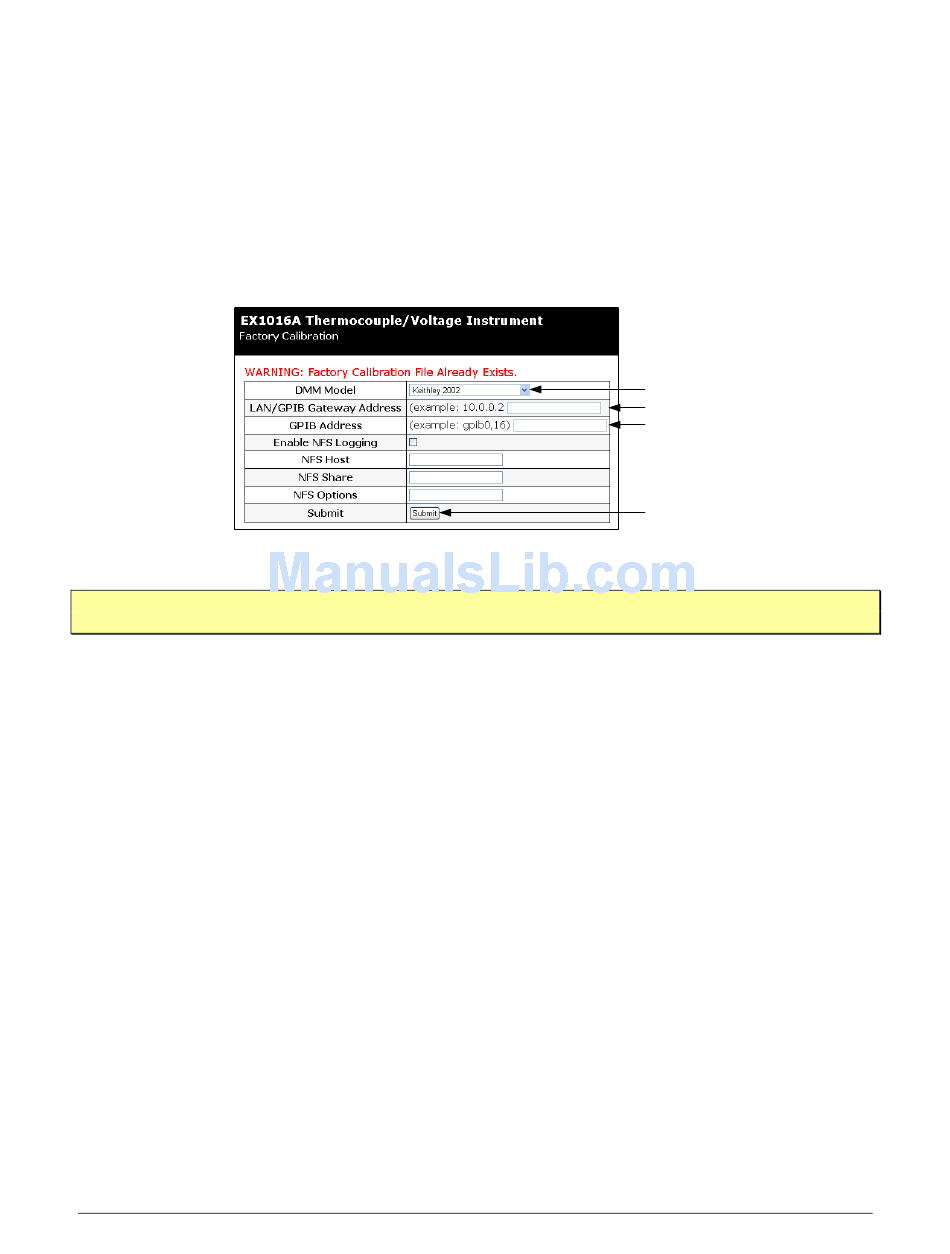

F 10-7: F
IGURE ACTORY
P
ROGRESS
Select the DMM Model
Enter LAN/GPIB Gateway IP Address
Enter DMM IP Address
Click Submit
C P
ALIBRATION AGE
EX10xxA Calibration
