The Trigger menu is used to configure and operate the EX10xxA's trigger system.

Configuration

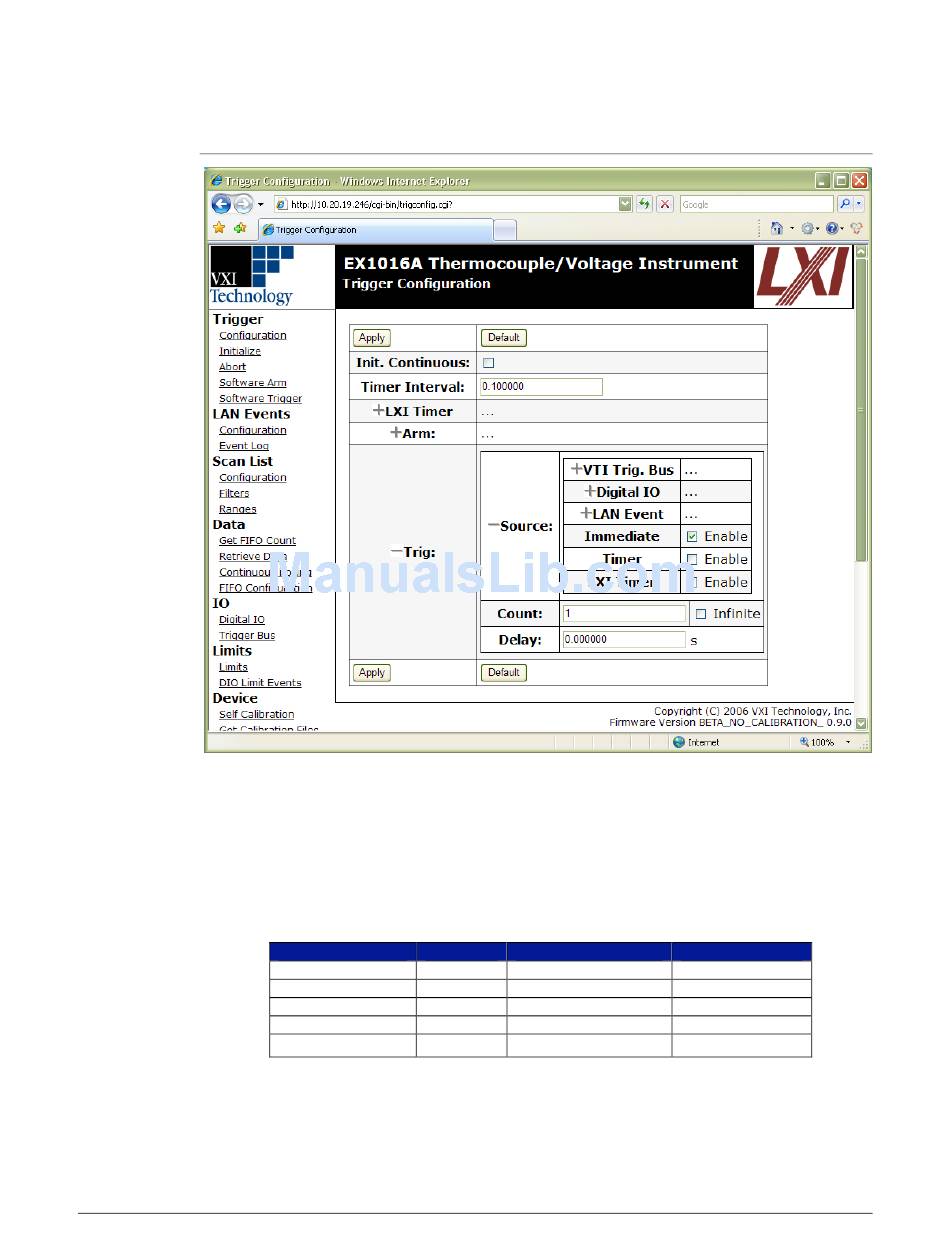

This entry page is used to configure the arm and trigger sources of the EX10xxA. The page is
designed with a collapsible and expandable menu structure that is retained between page visits. This
allows the user to expose only as much as the trigger system as needed, making navigation through
the configuration options easier. Detailed information on triggering is provided in Error! Reference
source not found.. Most of the controls on this page are checkboxes to enable different levels of
functionality. The rest are parameter entry fields that have the following valid input ranges:
In addition to the two standard buttons, this page also provides a Default button. This button
provides a one-click method of returning all trigger configuration parameters to their reset values.
EX10xxA Web Page Operation
F
IGURE
Parameter Min
Timer Interval (s) 0.001
Arm Count 1
Arm Delay (s) 0
Trig Count 1
Trig Delay (s) 0
T 5-1: T
ABLE RIGGER
5-3: T P
RIGGER AGE
Max
4294
31
(2 -1)
4294
31
(2 -1)
4294
C P
ONFIGURATION ARAMETER
www.vtiinstruments.com
Resolution
0.000001
1
0.000001
1
0.000001
R
ANGES
