Rack Ear Installation Option

The rackmount installation option includes all the parts necessary to mount the EX10xxA to the
front of a standard test rack.
Required Tools
1) #2 Phillips screwdriver
Parts List
Item#
1
2
Assembly Procedure
1) Place the chassis on a protected work surface with its input connectors facing front.
2) Using a #2 Phillips screwdriver, install the rack ears (P/N: 41-0482-009) on the front of the
EX10xxA using five (5) 6-32 x 3/8" flat head Phillips stainless steel screws (P/N: 37-0173-037)
for each rack ear. Note that the "Optional Mounting Locations" in Figure 2-2 allow the
EX10xxA to be installed in a rack either flush or recessed.
OPTIONAL MOUNTING LOCATIONS
38
Qty Description
2 Rack Ear, EX10XXA
10 Screw, 6-32 x 3/8", Flat Head Phillips, 82°, Stainless Steel

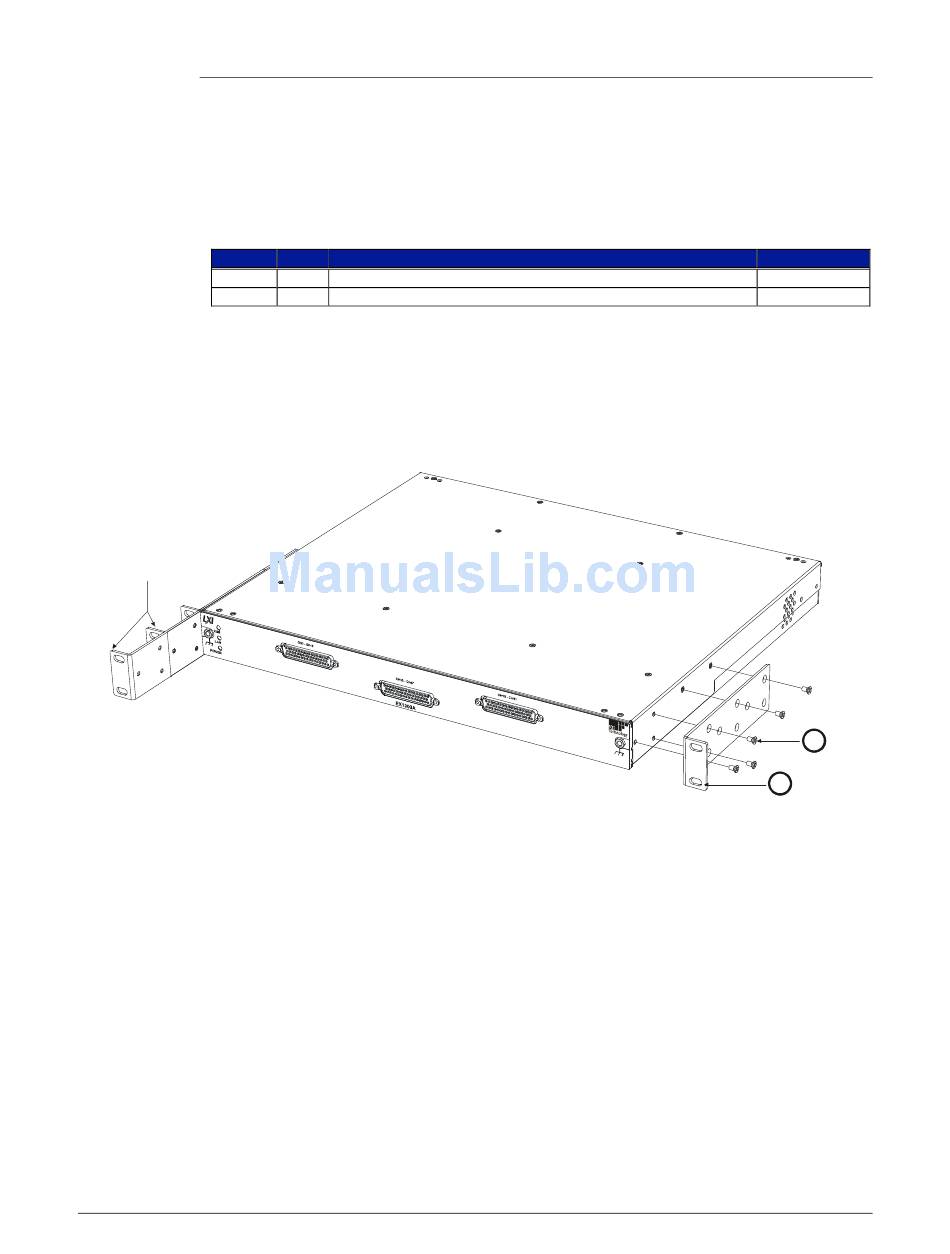

F 2-2: R E
IGURE ACK AR
I D
NSTALLATION IAGRAM
VTI P/N
41-0482-009
37-0173-037
2 5x Per Side
1 1x Per Side
