Status

This status page shows the trigger and arm states for all eight LAN event lines. If a "0" is shown in
the state field, the associated LAN event line is in a low state. If a "1" is shown, the line is in a high
state.
S L M
CAN IST ENU
The Scan List menu is used to configure the EX10xxA input channels with regards to scan list
inclusion, EU conversion, and hardware filter setting.

Configuration

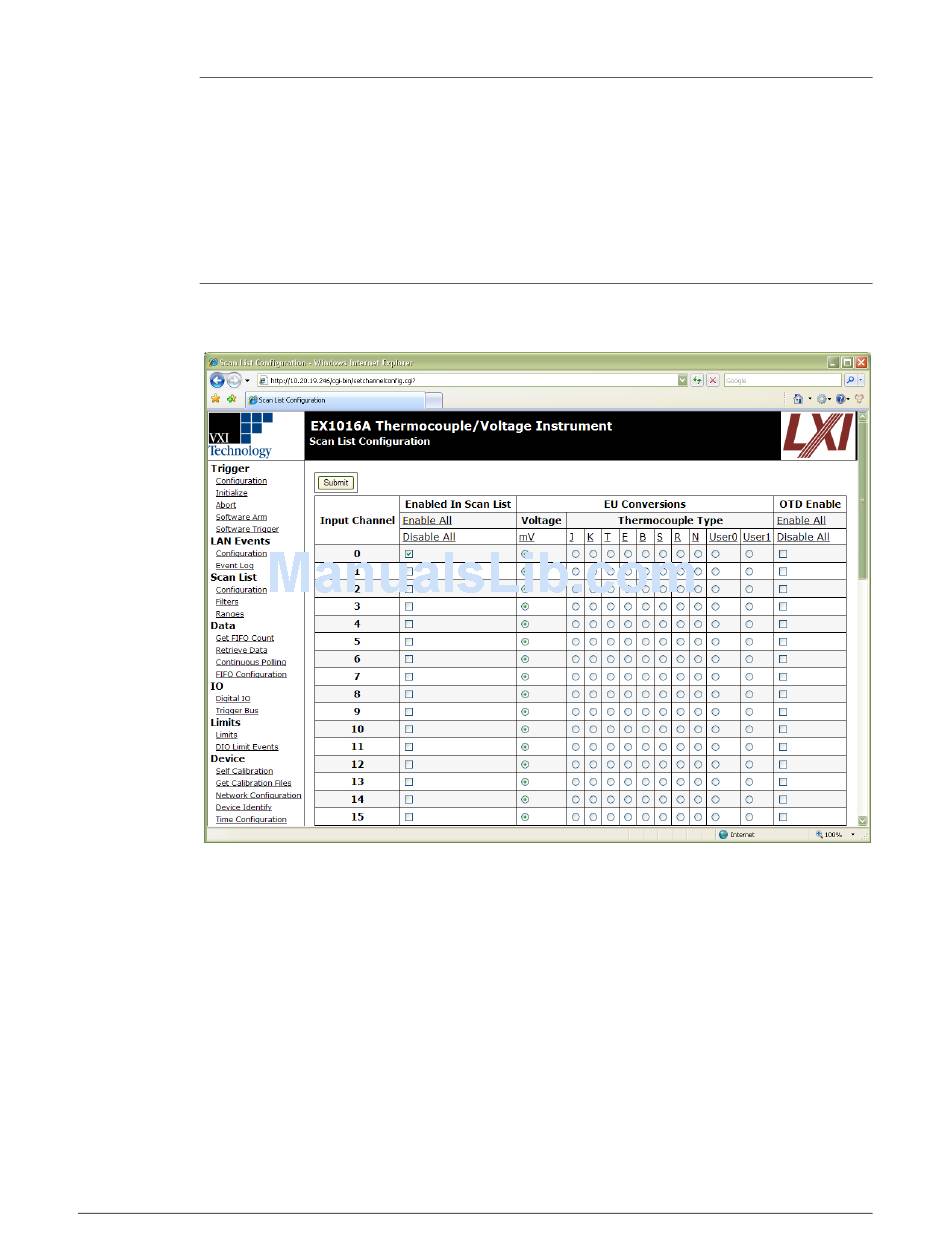

This entry page is used to define the channel scan list and the EU conversion setting for each
channel. An example of this page is shown Figure 5-4.
This screen displays that currently channel 0 is enabled in the scan list and is set to perform voltage
measurements. Channels are enabled or disabled in the scan list by toggling the appropriate
checkbox. Additionally, all channels can simultaneously be enabled or disabled by clicking on the
Enabled or Disabled link. If the channel is a voltage channel, the Voltage radio box will be selected.
For thermocouple channels, the EU conversion is set by clicking the appropriate radio button under
the desired conversion type. Additionally, all channels can simultaneously be set to the same
conversion type by clicking on the appropriate link. It should be noted that the use of these links
does not eliminate the need to click the Apply button to accept the changes. The user can also
enable/disable OTD on either a per channel or global basis form by using the OTD Enable check
boxes.
