Prior to performing calibration, the EX10xxA/RX10xx must be connected to the required equipment
as indicated in the steps below:

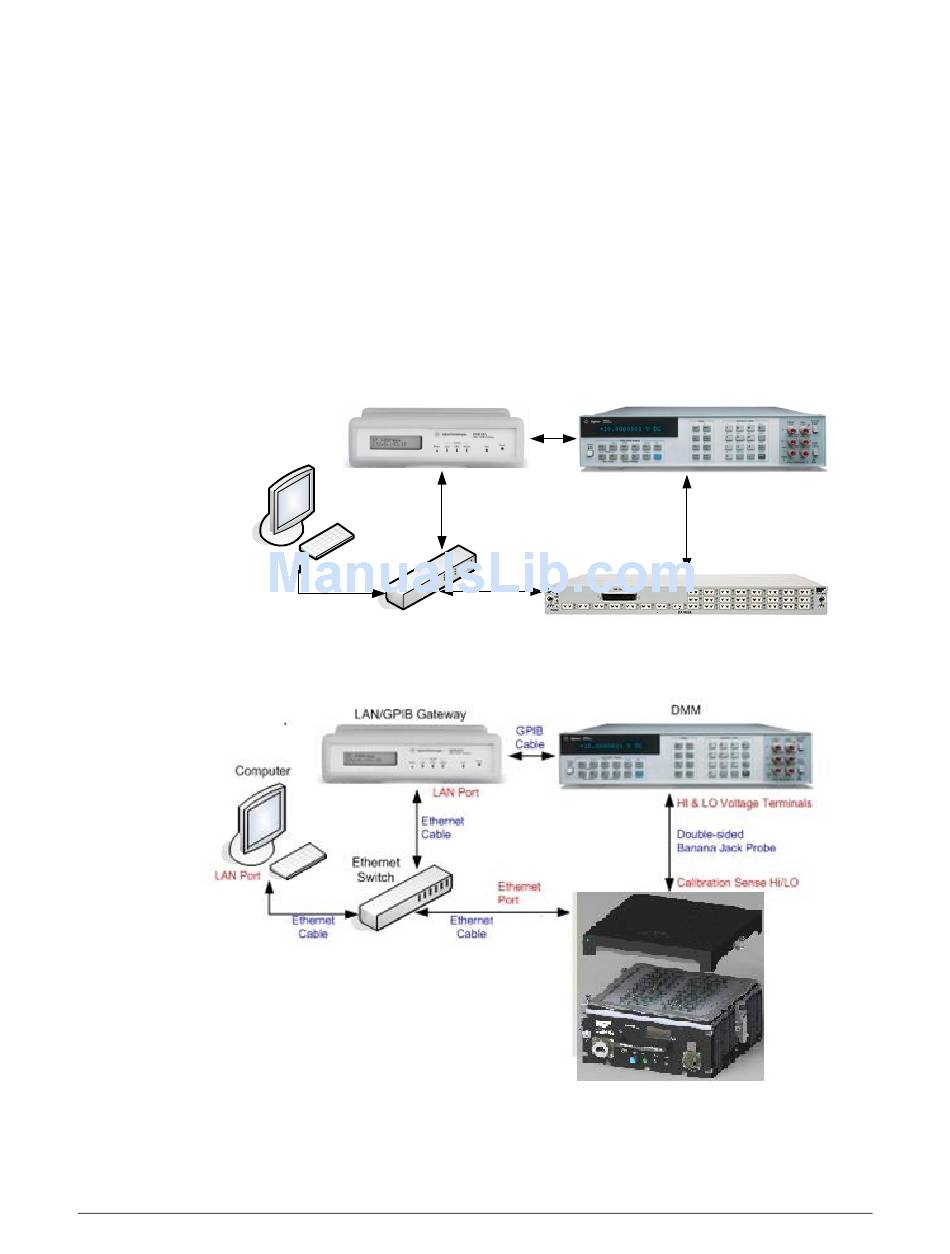

Fig 10-1, Demonstrates the EX10xxA unit for EX10xx calibration
Fig 10-2, Demonstrates the RX10xx unit for RX10xx calibration
1) Connect a GPIB cable from the LAN/GPIB gateway to the DMM.
2) Connect a banana jack probe from the Calibration Sense HI/LO jacks of EX10xxA/RX10xx to
the HI/LO voltage terminals of DMM.
3) Connect an Ethernet cable from the PC's LAN port to the Ethernet switch.
4) Connect an Ethernet cable from the Ethernet switch to the LAN/GPIB gateway.
5) Power up all the instruments.
6) The GPIB/LAN Gateway should be able to query and list the attached GPIB devices through
the browser. Note the GPIB address of connected DMM.
LAN Port
304
LAN/GPIB Gateway
Computer
Ethernet
Switch
Ethernet
Cable
F 10-1: EX10
IGURE
F 10-2: RX10
IGURE
GPIB
Cable
LAN Port
Ethernet
Cable
Ethernet
Port
Ethernet
Cable
EX10xxA Series Instrument
A C D
XX ABLING
C D
XX ABLING
DMM
HI & LO Voltage Terminals
Double-sided
Banana Jack Probe
Calibration Sense Hi/LO
IAGRAM
IAGRAM
EX10xxA Calibration
