6) If set to use a static IP, record the IP address, subnet mask, and default gateway for use later.
Select Obtain an IP address automatically to establish a connection to the EX10xxA. Click
the OK button and proceed to Set the EX10xxA to Static IP. If set to use a dynamic IP, click
the OK button and proceed to Set the EX10xxA to Auto IP.

Set the EX10xxA to Auto IP

1) Remove all network connections from the PC except for the connection to the EX10xxA.
Wireless adapters should be disabled as well.
2) Apply power to the EX10xxA and wait for the LAN LED to turn green.
3) Discover EX10xxA using Bonjour as described in the Web Page Operation in Section 4. The
steps taken previously should ensure that discovery works.
4) Once connected to the EX10xxA, click on Network Configuration in the command menu.
5) Select DHCP and AutoIP in the IP Address Source field and ensure that Static IP is not

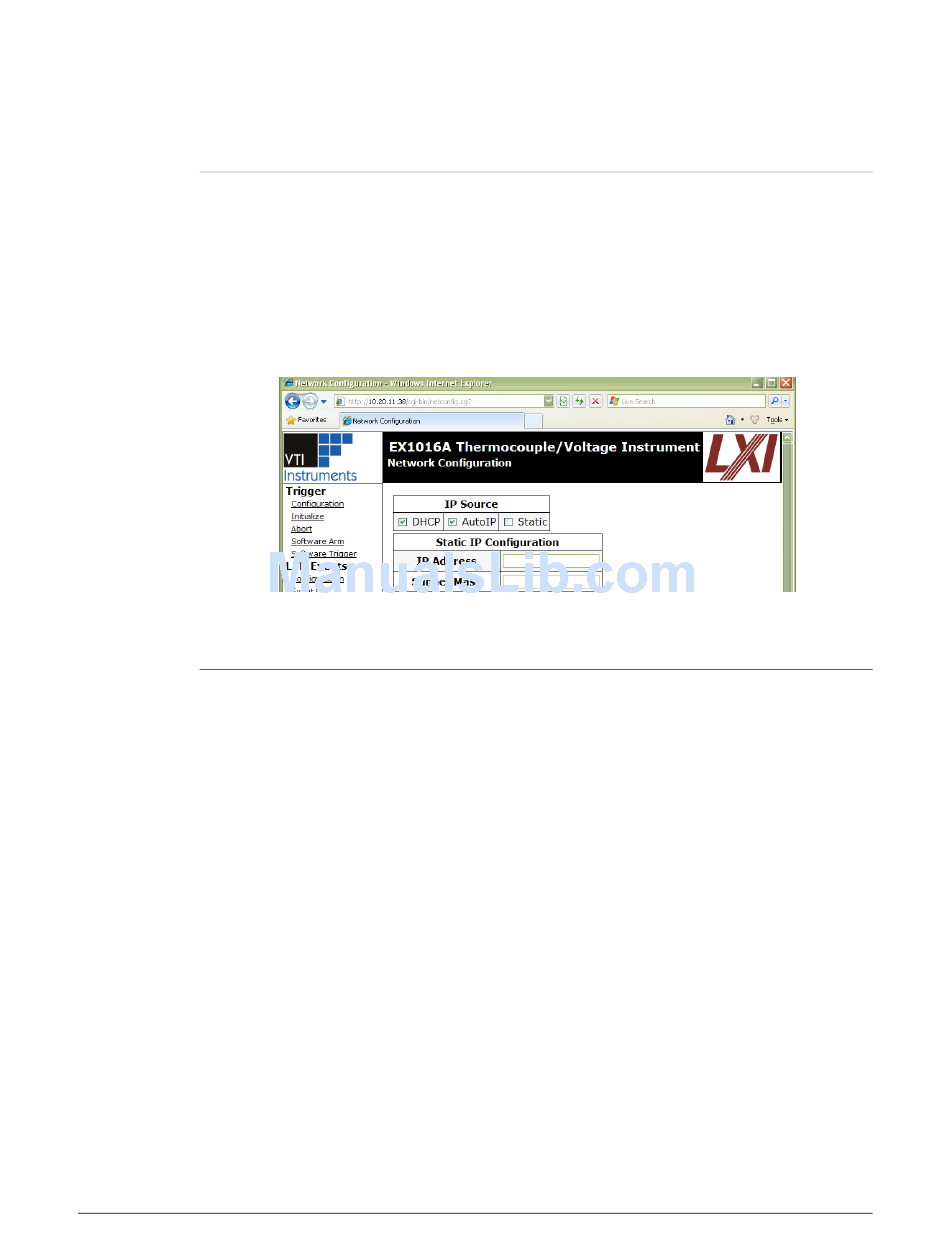

selected. Figure 2-7 shows the proper configuration. Click the Submit button to save all
changes.

Set the EX10xxA to Static IP

1) Disconnect all network connections from the PC except for the connection between the PC
and the EX10xxA.
2) Apply power to the EX10xxA and wait for the LAN LED to turn green.
3) Discover EX10xxA using Bonjour as described in the Web Page Operation in Section 4. The
steps taken previously should ensure that discovery works.
4) Once connected to the embedded web interface, click on the Network Configuration link in
the command menu.
5) Select the Static checkbox in the IP Address Source field and ensure that DHCP and
AutoIP are not selected.
6) In the IP Address field, enter an appropriate IP address for the EX10xxA. Use the IP address
obtained the Determine PCs Network Settings.
7) step to determine the network address. The network address is the first three digits of the IP
address (10.1.0 in the example provided). The last digit of the IP address (the node), is a
number, 0 through 255, that is not currently assigned to any other device on the network.
Ensure that a unique IP address is assigned to the EX10xxA by consulting a network
administrator.
8) In the Subnet Mask field, enter the subnet mask in the Determine PCs Network Settings
9) step.
10) In the Gateway Address field, enter the same gateway address in the Determine PCs Network
Settings step.
11) Click Submit to save all changes made to the Network Configuration page.
