Installation Option of RX10xx

Mechanical Accessories
1) Power Connector: 27-0673-315, CONN, MIL-C-26482-1, CABLE PLUG, SIZE 14, 15 WAY,
SOCKET
2) Ethernet Connector: 27-0926-008I, CONN, IP67, RJ-45, PL, 8POS, ST
3) Mounting Angle Bracket: 41-0604-012 (2 ea)
4) Screw, M6X10mm: 37-1901-010 (6 ea)
5) Cable Mount Bracket: 41-0604-013 (2 ea)
6) Screw, M3X6mm: 37-0223-006 (4 ea)
Mechanical accessories need to order separately
NOTE:
Assembly Procedure

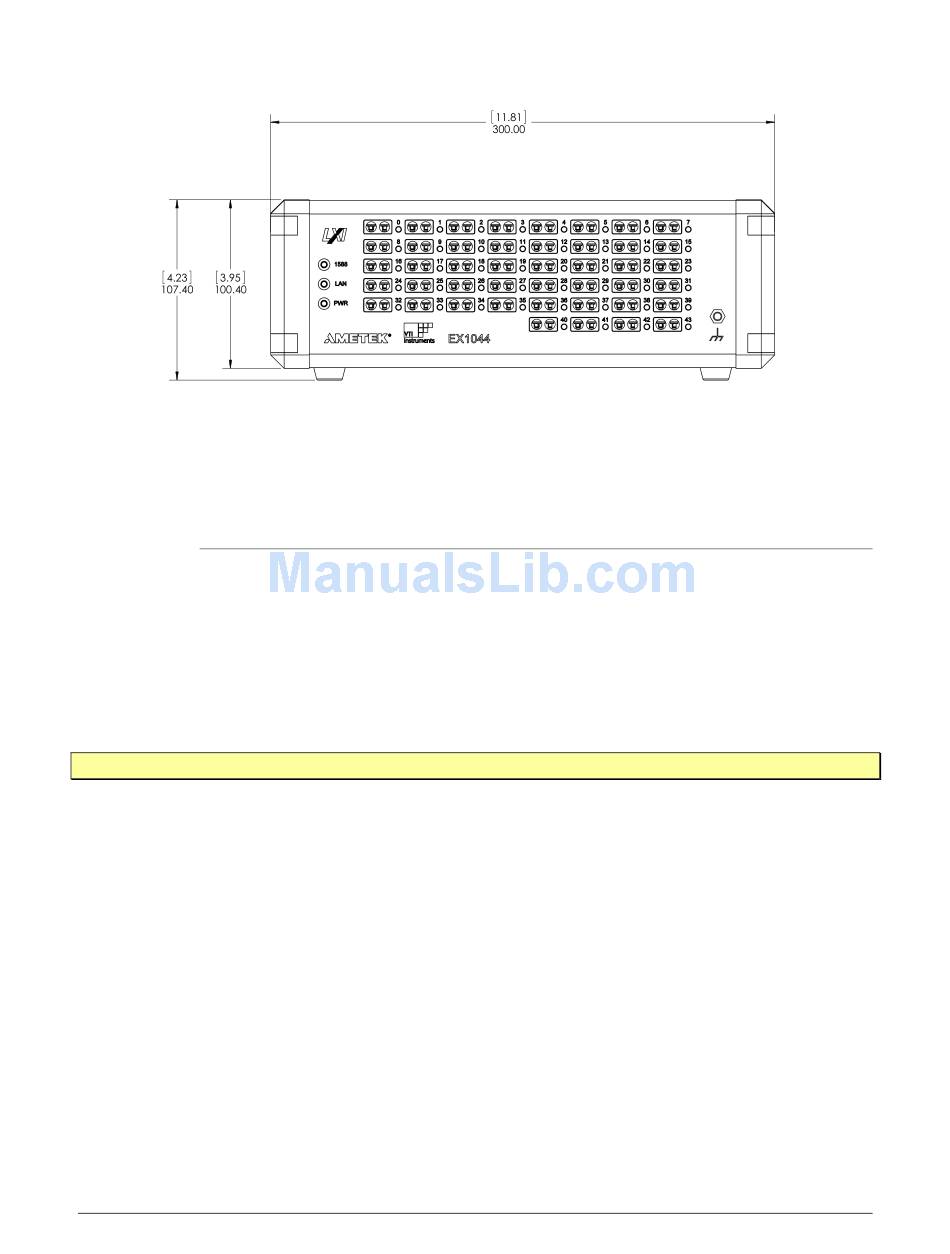

7) Mount option-I: 6X M6 tapped holes are provided at the bottom of the chassis as per Figure 2-3-1
for fixing on horizontal plate or with vibration mount.
8) Mount option-II: The System using Left and Right angle plates provided in the chassis.
9) Mount the unit to the protected area with mounting details provided as per Figure 2-3-1
10) Hole size in the mounting angle bracket is 6.5 mm (dia). Use 6 X M6 X 10mm LG, CAP FLANGE
HD, 10.9 STEEL SCREWS
