Tabletop Installation Option

The tabletop installation option can be used when the EX1401 will not be installed in a rack, but
will be employed as a bench top or desktop instrument.
Required Tools
1) #2 Phillips screwdriver
Parts List
Item#
1
2
Assembly Procedure
1) Place the chassis on a protected work surface, upside down, with its input connectors facing
front.
2) Using Figure 2-2, locate the installation locations (on the bottom of the chassis) for each rubber
cap bezel.
3) Using the #2 Phillips screw driver, install the four rubber feet using four (4) 6-32 x 3/8" pan
head Phillips screws to secure the bottom.
W -U T
ARM P IME
The specified warm-up time of the EX1401 is 60 minutes. If, however, the unit is being subjected
to an ambient temperature change greater than 5 ºC, extra stabilization time is recommended to
achieve maximum performance.
P U G
OWERING P AND ROUNDING
The EX1401 is designed to be powered by a DC power source. It can be provided by either using a
PoE+ enabled Ethernet port (which injects DC power into the network lines, such that there is no
need of additional wiring), or through an external DC power adaptor. Many PoE+ enabled switches
are compatible with EX1401. Some of the PoE+ switches that have been tested for compatibility are
listed below.
28
Qty Description
Screw, 6-32 x 3/8", Pan Head Phillips
4
2 Bezel, Cap, EX1401 Chassis

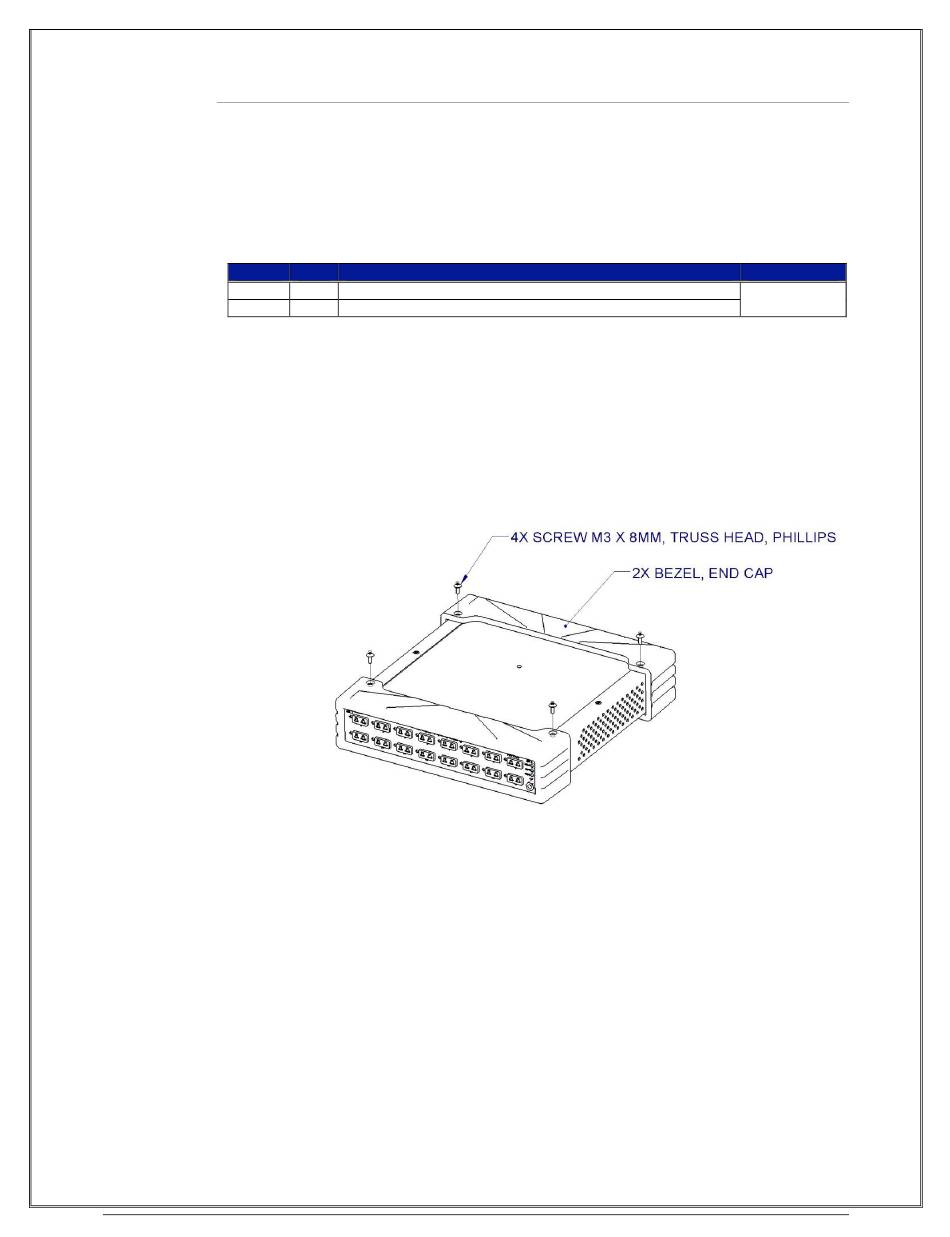

F 2-2: T T F
IGURE ABLE OP EET
I D
NSTALLATION IAGRAM
VTI P/N
41-0620-003
