14) Connect RJ45 Ethernet cable connector to J1 connector and other end to PC
15) Prepare P1 mating connector cable loom as per the "RX10xx Connections" Section
16) Connect P1 mating connector cable loom and other end +28V_IN and +28V_RET signals into
28V DC power supply. Power Supply should be capable of produce 2Amps min.
17) Power ON the supply.
18) Wait for 2min time to system boot.
19) Run the SFP application software and configure the channel as per requirement.
20) Wait for warm up time as mentioned in "WARMUP TIME" section
21) Start acquire the channel data
W -U T
ARM P IME
The specified warm-up time of the EX10xxA/EX10xxA-51C/RX10xx/EX1044 is 60 minutes. If,
however, the unit is being subjected to an ambient temperature change greater than 5 ºC, extra
stabilization time is recommended to achieve maximum performance.
S I
OFTWARE NSTALLATION
The fastest way to begin controlling an EX10xxA/EX10xxA-51C/RX10xx/EX1044 is to discover
the unit using VTI's LAN Instrument Connection and Upgrade (or LInC-U) utility. To do this, the
following is required:

A PC or laptop computer
EX10xxA/EX10xxA-51C/RX10xx Preparation for Use

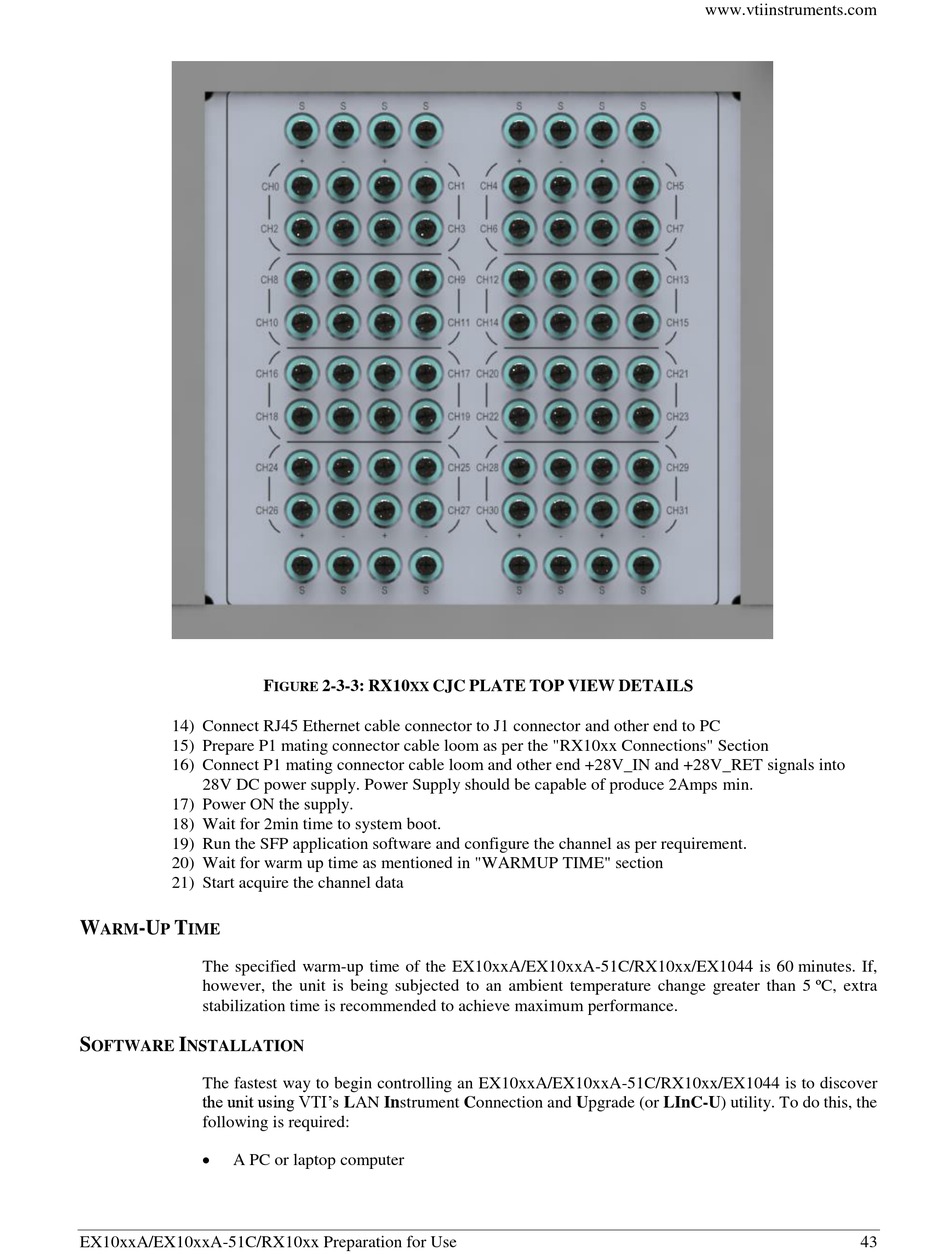

F 2-3-3: RX10 CJC PLATE TOP VIEW DETAILS
IGURE XX
