5

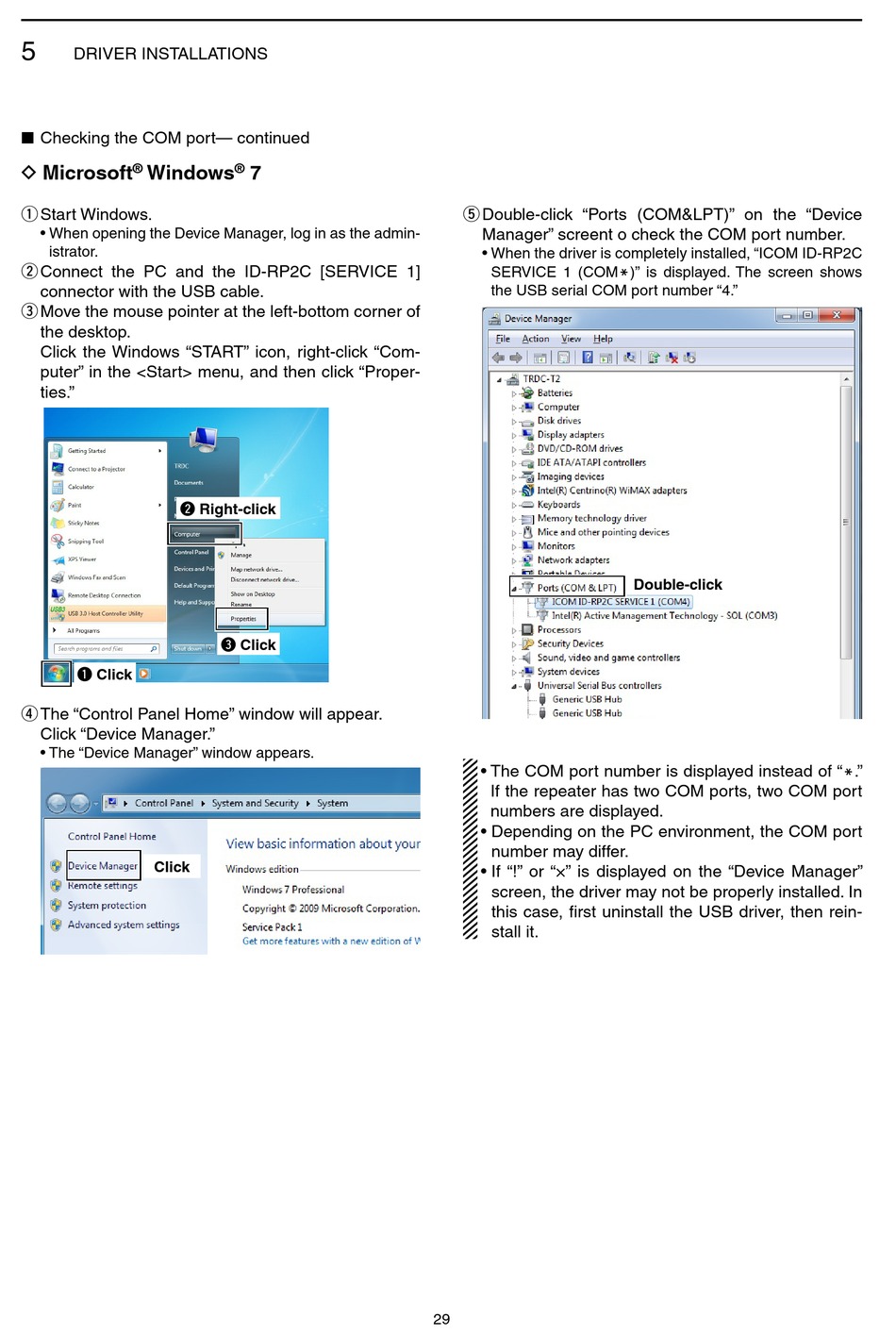

DRIVER INSTALLATIONS
Checking the COM port— continued
■
D Microsoft ® Windows
Start Windows.
q
• When opening the Device Manager, log in as the admin-
istrator.
Connect the PC and the ID-RP2C [SERVICE 1]
w
connector with the USB cable.
Move the mouse pointer at the left-bottom corner of
e
the desktop.
Click the Windows "START" icon, right-click "Com-
puter" in the <Start> menu, and then click "Proper-
ties."
w Right-click
q Click
The "Control Panel Home" window will appear.
r
Click "Device Manager."
• The "Device Manager" window appears.
Click
® 7
e Click
Double-click "Ports (COM&LPT)" on the "Device
t
Manager" screent o check the COM port number.
• When the driver is completely installed, "ICOM ID-RP2C
SERVICE 1 (COMM)" is displayed. The screen shows
the USB serial COM port number "4."
• The COM port number is displayed instead of "
If the repeater has two COM ports, two COM port
numbers are displayed.
• Depending on the PC environment, the COM port
number may differ.
• If "!" or "×" is displayed on the "Device Manager"
screen, the driver may not be properly installed. In
this case, first uninstall the USB driver, then rein-
stall it.
29
Double-click
."
