7
REPEATER SETTINGS
ID-RP2L setting— continued
■
w
e Click
Click [Z], then select
"Normal."
q Enter the speci-
fied frequencies.

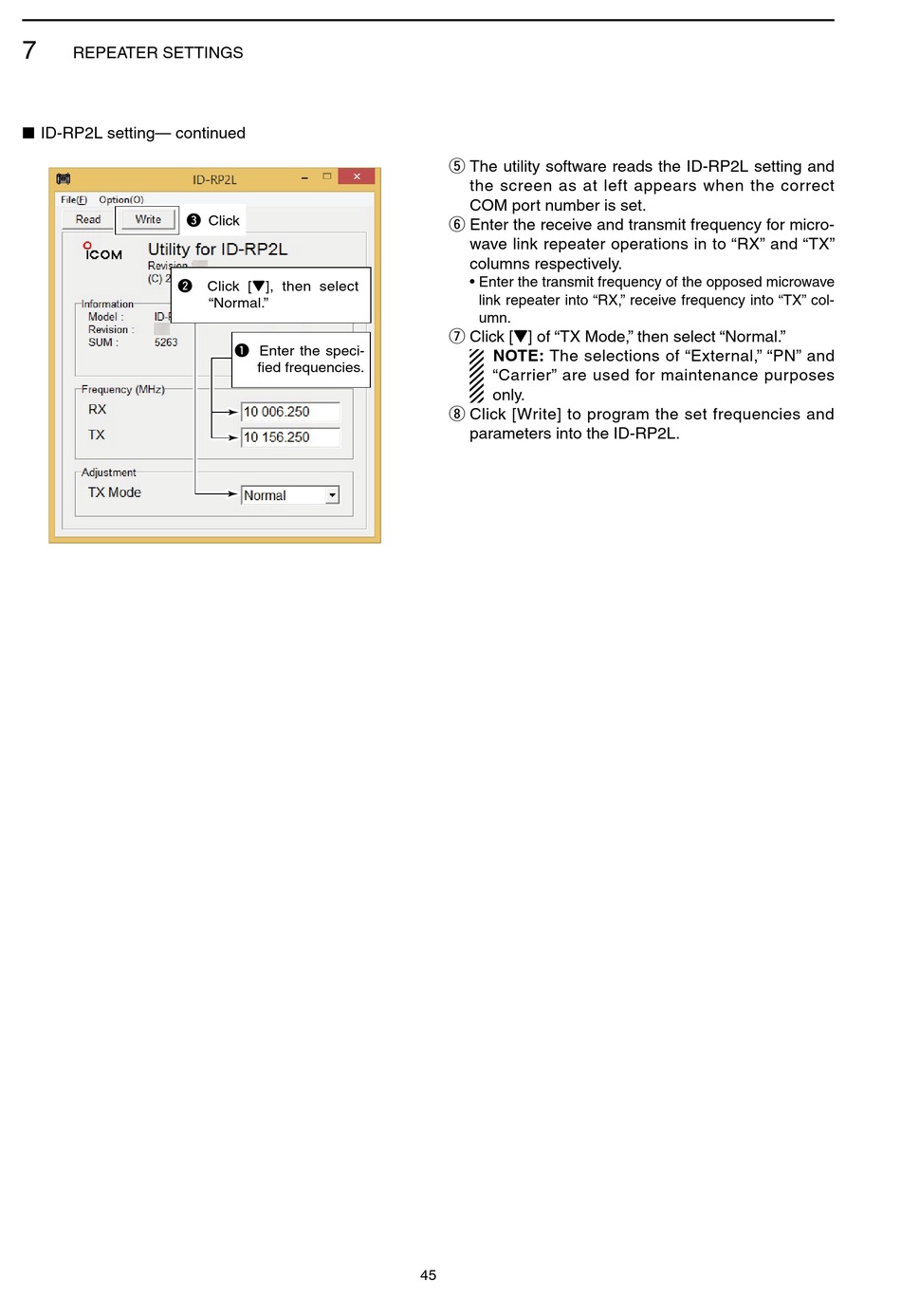

t The utility software reads the ID-RP2L setting and
the screen as at left appears when the correct
COM port number is set.
y Enter the receive and transmit frequency for micro-
wave link repeater operations in to "RX" and "TX"
columns respectively.
• Enter the transmit frequency of the opposed microwave
link repeater into "RX," receive frequency into "TX" col-
umn.
u Click [Z] of "TX Mode," then select "Normal."
NOTE: The selections of "External," "PN" and
"Carrier" are used for maintenance purposes
only.
i Click [Write] to program the set frequencies and
parameters into the ID-RP2L.
45
