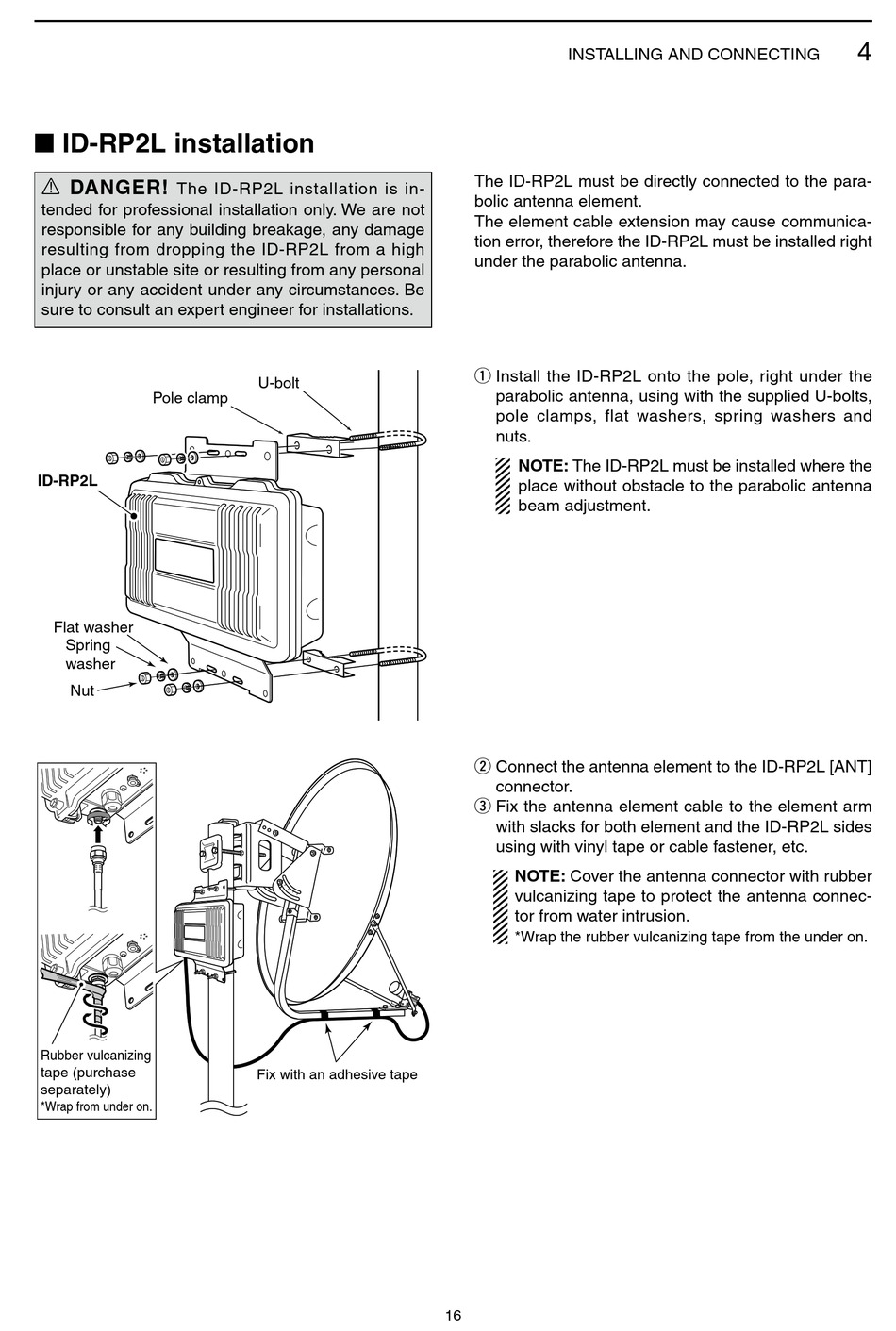

ID-RP2L installation

■
R DANGER!
The ID-RP2L installation is in-
tended for professional installation only. We are not
responsible for any building breakage, any damage
resulting from dropping the ID-RP2L from a high
place or unstable site or resulting from any personal
injury or any accident under any circumstances. Be
sure to consult an expert engineer for installations.
Pole clamp
ID-RP2L
Flat washer
Spring
washer
Nut
Rubber vulcanizing
tape (purchase
separately)
*Wrap from under on.
U-bolt
Fix with an adhesive tape
INSTALLING AND CONNECTING
The ID-RP2L must be directly connected to the para-
bolic antenna element.
The element cable extension may cause communica-
tion error, therefore the ID-RP2L must be installed right
under the parabolic antenna.
q Install the ID-RP2L onto the pole, right under the
parabolic antenna, using with the supplied U-bolts,
pole clamps, flat washers, spring washers and
nuts.
NOTE: The ID-RP2L must be installed where the
place without obstacle to the parabolic antenna
beam adjustment.
w Connect the antenna element to the ID-RP2L [ANT]
connector.
e Fix the antenna element cable to the element arm
with slacks for both element and the ID-RP2L sides
using with vinyl tape or cable fastener, etc.
NOTE: Cover the antenna connector with rubber
vulcanizing tape to protect the antenna connec-
tor from water intrusion.
*Wrap the rubber vulcanizing tape from the under on.
