Pole

(48.6–89.1 mm)

Stopper

Element

Support arm

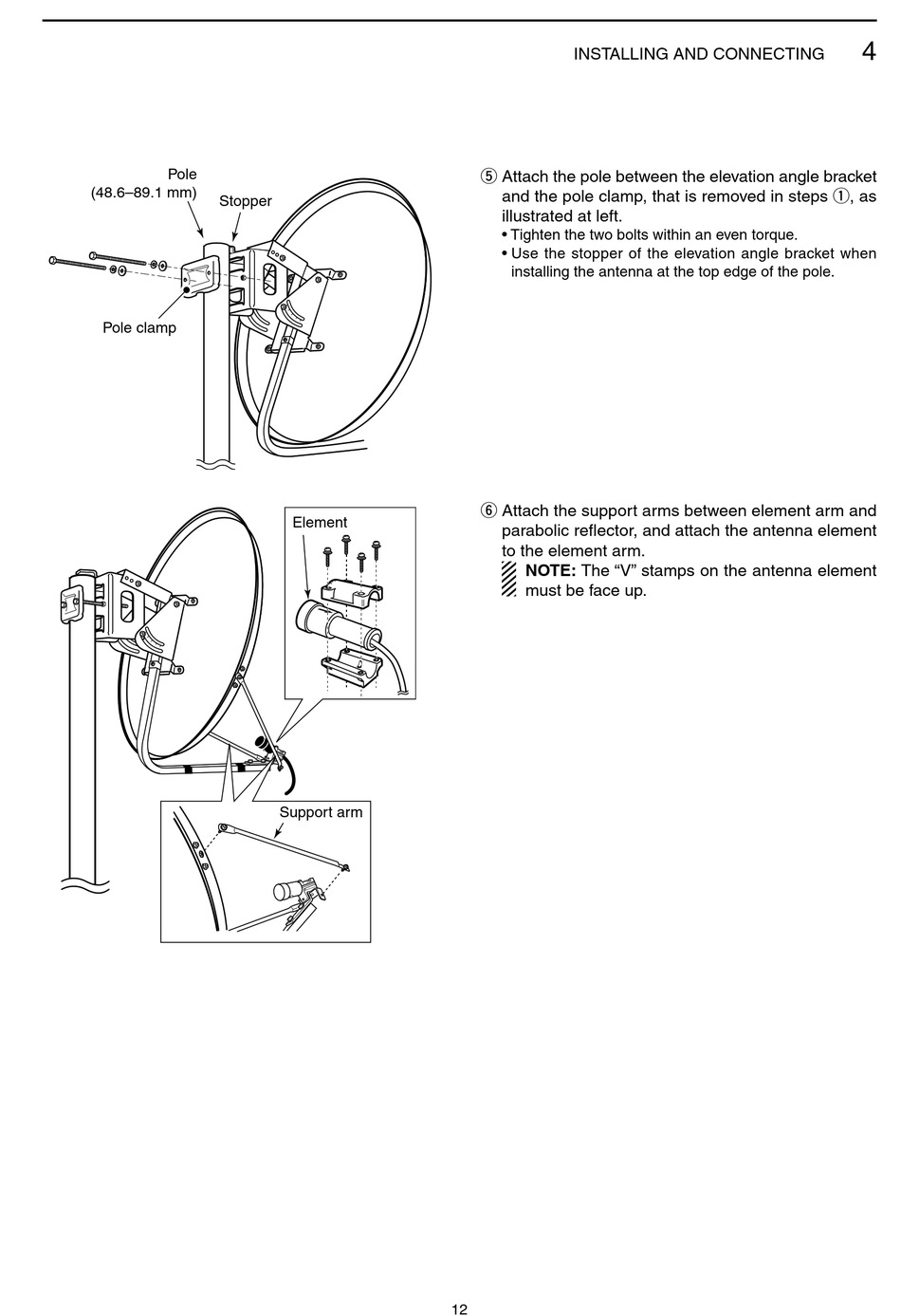

INSTALLING AND CONNECTING

t Attach the pole between the elevation angle bracket

and the pole clamp, that is removed in steps q, as

illustrated at left.

• Tighten the two bolts within an even torque.

• Use the stopper of the elevation angle bracket when

installing the antenna at the top edge of the pole.

y Attach the support arms between element arm and

parabolic reflector, and attach the antenna element

to the element arm.

NOTE: The "V" stamps on the antenna element

must be face up.
