Pole clamp
Element
Element
holder
Pole
(32–60mm)
Bolts (M8)
Pole clamp
Spring
washer (M8)
Pole clamp
Pole stopper
Pole (Supplied item)
Check the
orientation
Nut
(M8)

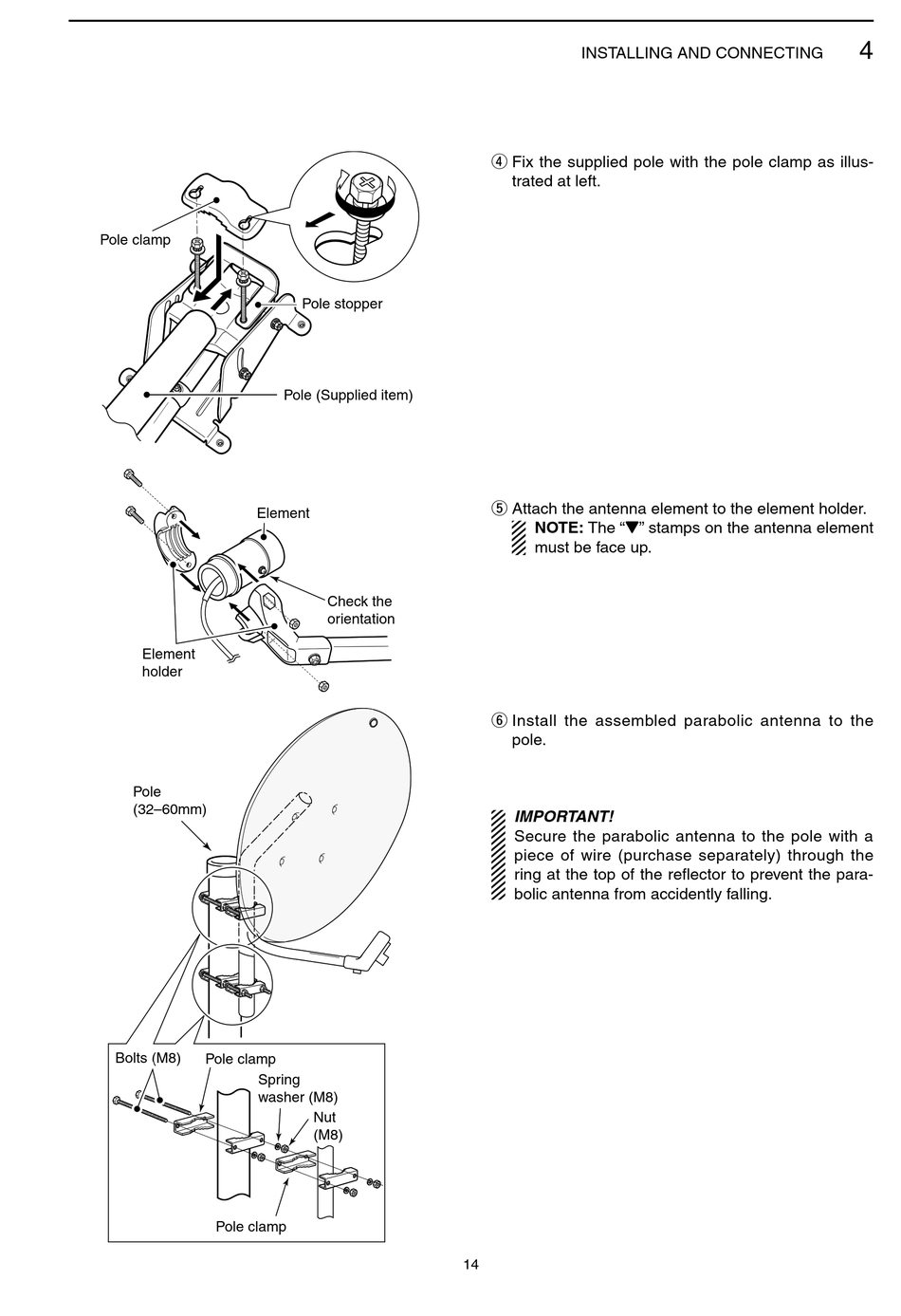

INSTALLING AND CONNECTING
r Fix the supplied pole with the pole clamp as illus-
trated at left.
t Attach the antenna element to the element holder.
NOTE: The "Z" stamps on the antenna element
must be face up.
y Install the assembled parabolic antenna to the
pole.
IMPORTANT!
Secure the parabolic antenna to the pole with a
piece of wire (purchase separately) through the
ring at the top of the reflector to prevent the para-
bolic antenna from accidently falling.
14
4
