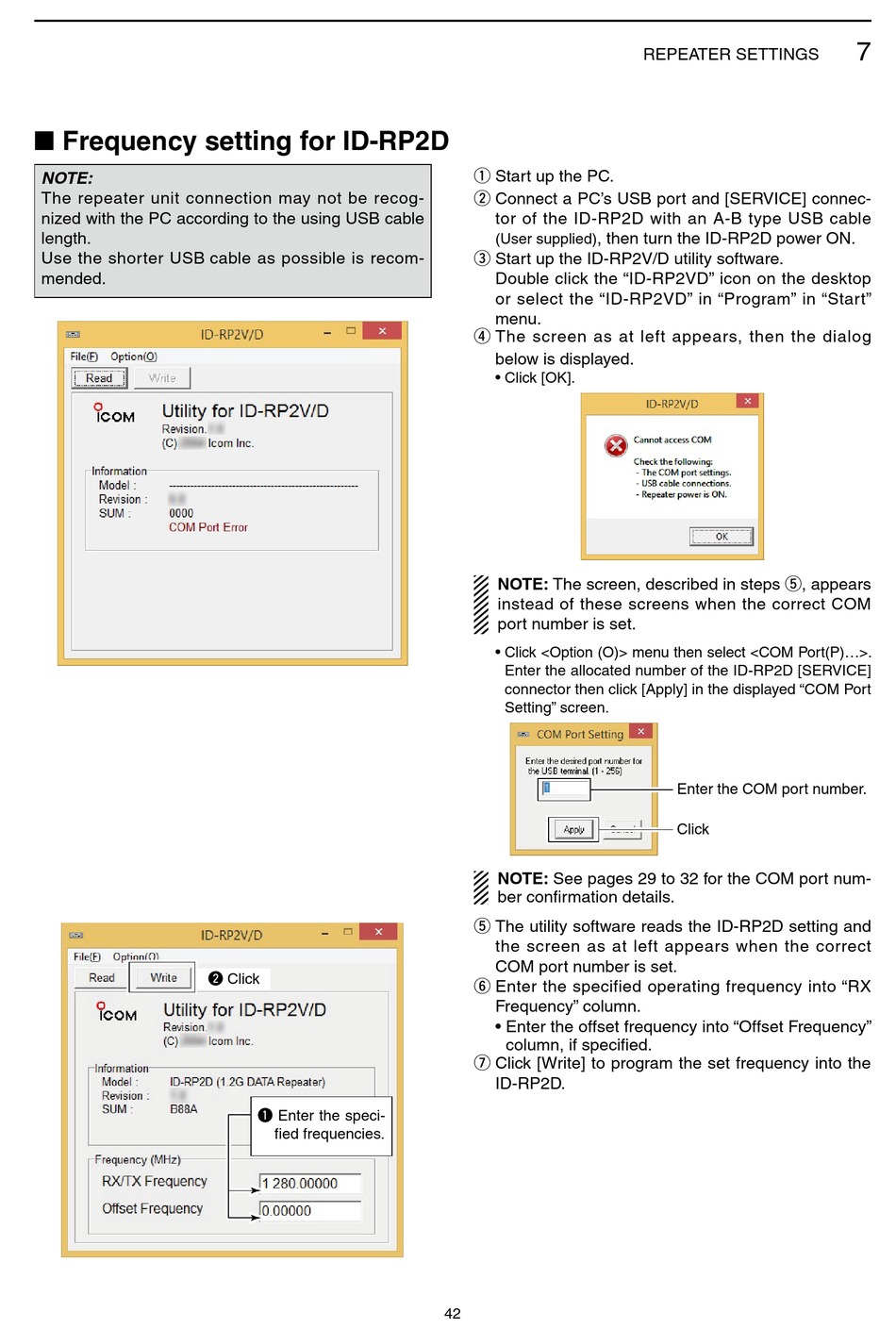

Frequency setting for ID-RP2D

■
NOTE:
The repeater unit connection may not be recog-
nized with the PC according to the using USB cable
length.
Use the shorter USB cable as possible is recom-
mended.
w Click
q Enter the speci-
fied frequencies.
q Start up the PC.
w Connect a PC's USB port and [SERVICE] connec-
tor of the ID-RP2D with an A-B type USB cable
, then turn the ID-RP2D power ON.
(User supplied)
e Start up the ID-RP2V/D utility software.
Double click the "ID-RP2VD" icon on the desktop
or select the "ID-RP2VD" in "Program" in "Start"
menu.
r The screen as at left appears, then the dialog
below is displayed.
• Click [OK].
NOTE: The screen, described in steps t, appears
instead of these screens when the correct COM
port number is set.
• Click <Option (O)> menu then select <COM Port(P)...>.
Enter the allocated number of the ID-RP2D [SERVICE]
connector then click [Apply] in the displayed "COM Port
Setting" screen.
NOTE: See pages 29 to 32 for the COM port num-
ber confirmation details.
t The utility software reads the ID-RP2D setting and
the screen as at left appears when the correct
COM port number is set.
y Enter the specified operating frequency into "RX
Frequency" column.
• Enter the offset frequency into "Offset Frequency"
column, if specified.
u Click [Write] to program the set frequency into the
ID-RP2D.
42
REPEATER SETTINGS
Enter the COM port number.
Click
