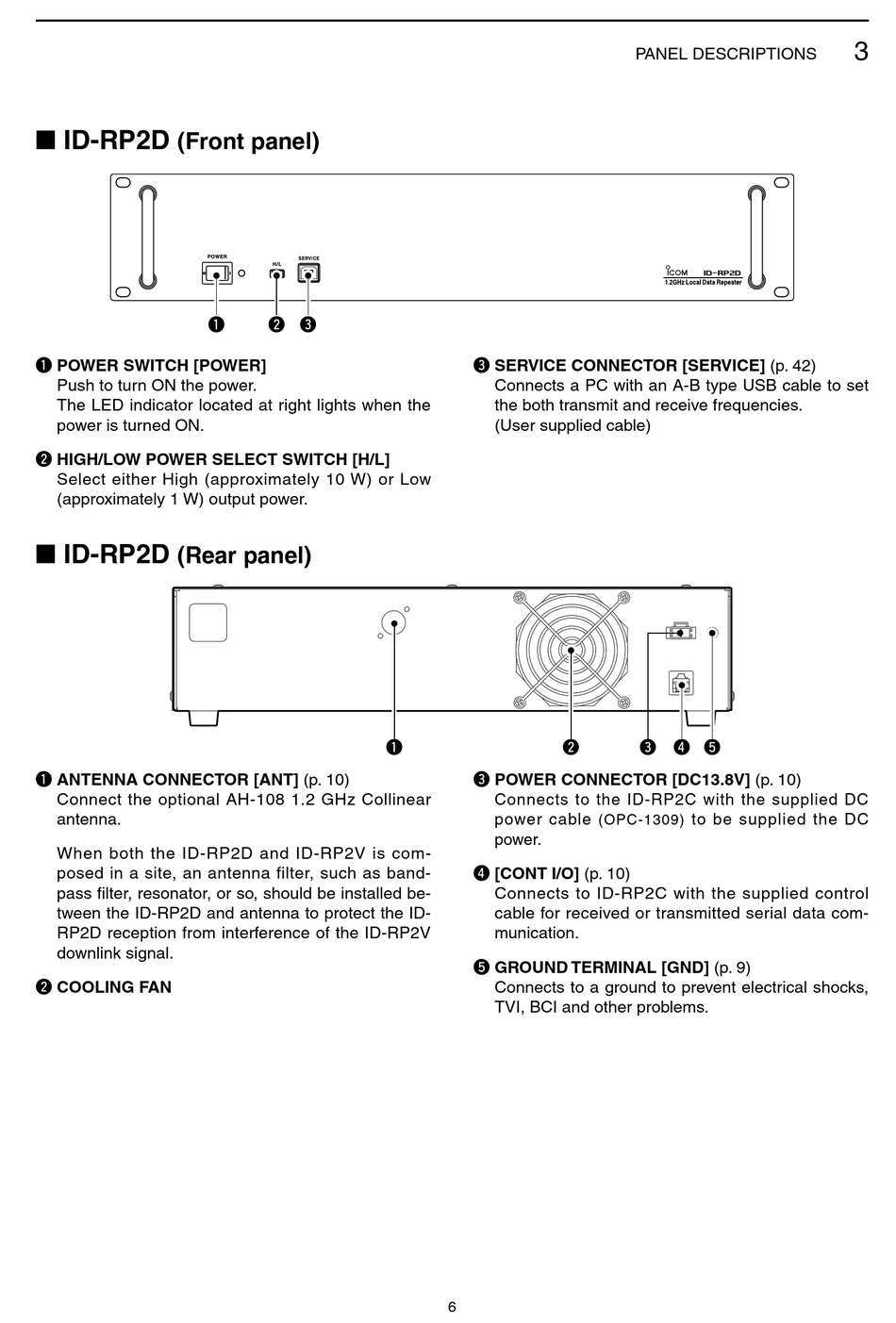

ID-RP2D
(Front panel)
■
q POWER SWITCH [POWER]
Push to turn ON the power.
The LED indicator located at right lights when the
power is turned ON.
w HIGH/LOW POWER SELECT SWITCH [H/L]
Select either High (approximately 10 W) or Low
(approximately 1 W) output power.
ID-RP2D
■ (Rear panel)
q ANTENNA CONNECTOR [ANT] (p. 10)
Connect the optional AH-108 1.2 GHz Collinear
antenna.
When both the ID-RP2D and ID-RP2V is com-
posed in a site, an antenna filter, such as band-
pass filter, resonator, or so, should be installed be-
tween the ID-RP2D and antenna to protect the ID-
RP2D reception from interference of the ID-RP2V
downlink signal.
w COOLING FAN
q w e
e SERVICE CONNECTOR [SERVICE] (p. 42)
Connects a PC with an A-B type USB cable to set
the both transmit and receive frequencies.
(User supplied cable)
q
e POWER CONNECTOR [DC13.8V] (p. 10)
Connects to the ID-RP2C with the supplied DC
power cable
power.
r [CONT I/O] (p. 10)
Connects to ID-RP2C with the supplied control
cable for received or transmitted serial data com-
munication.
t GROUND TERMINAL [GND] (p. 9)
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
6
PANEL DESCRIPTIONS
w e r t
to be supplied the DC
(OPC-1309)
3
