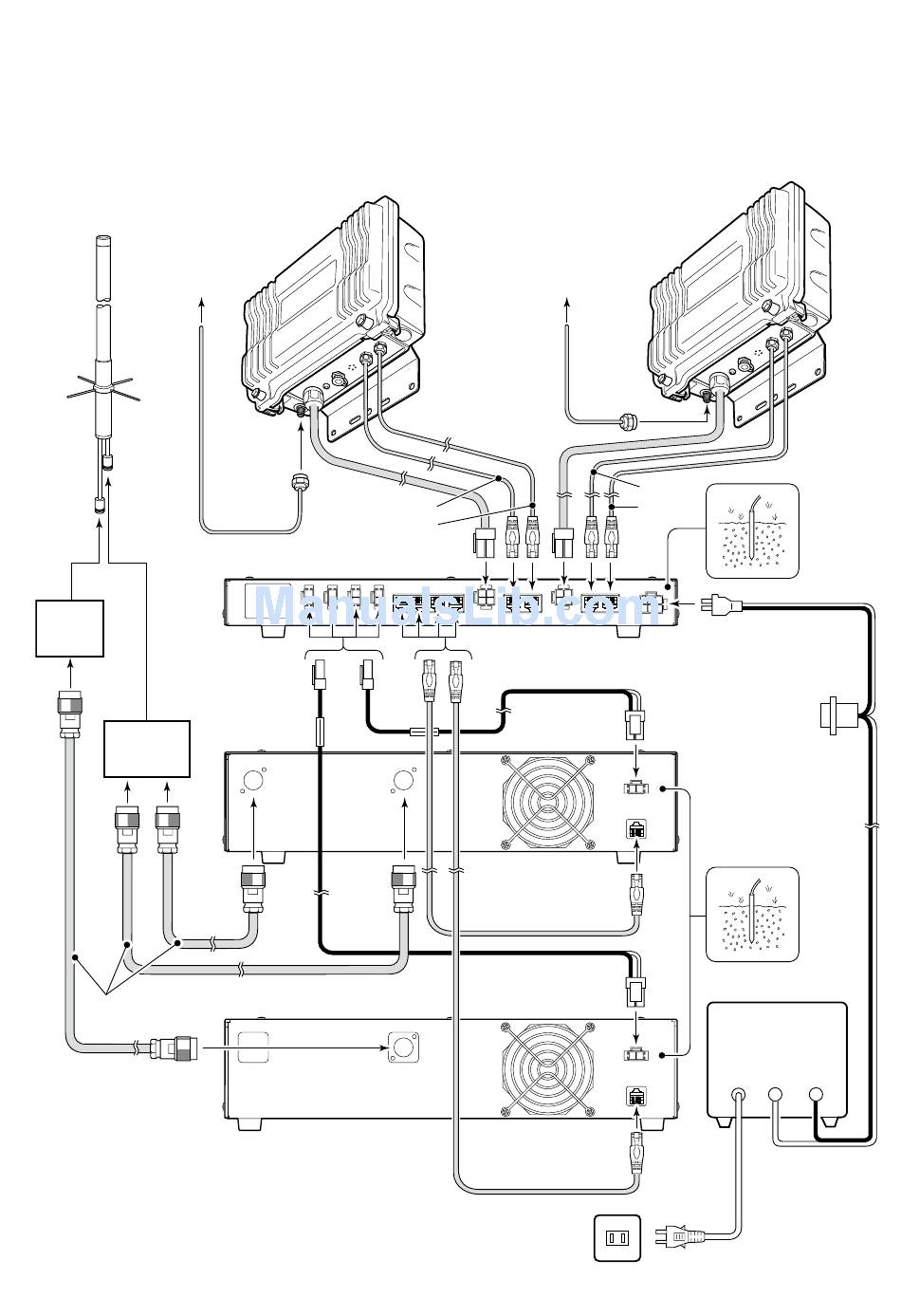

System connections

■
AH-108*
to AH-106/107*
Antenna
filter
Duplexer
Coaxial cables
(purchase separately)
*Not available in European
countries as of July 2015.
ID-RP2C
ID-RP2V
ID-RP2D
INSTALLING AND CONNECTING
ID-RP2L*
(Assist 1)
to AH-106/107*
[A]
[B]
Control cable
(supplied w/ID-RP2D/V)
OPC-1309
(supplied w/ID-RP2D/V)
Control cable
(supplied w/ID-RP2D/V)
AC outlet
10
ID-RP2L*
(Assist 2)
[A]
[B]
OPC-1380
(supplied w/ID-RP2C)
OPC-1309
(supplied w/ID-RP2D/V)
External DC power
supply 13.8 V
Red
+
AC power cable
4
Black
_
