3

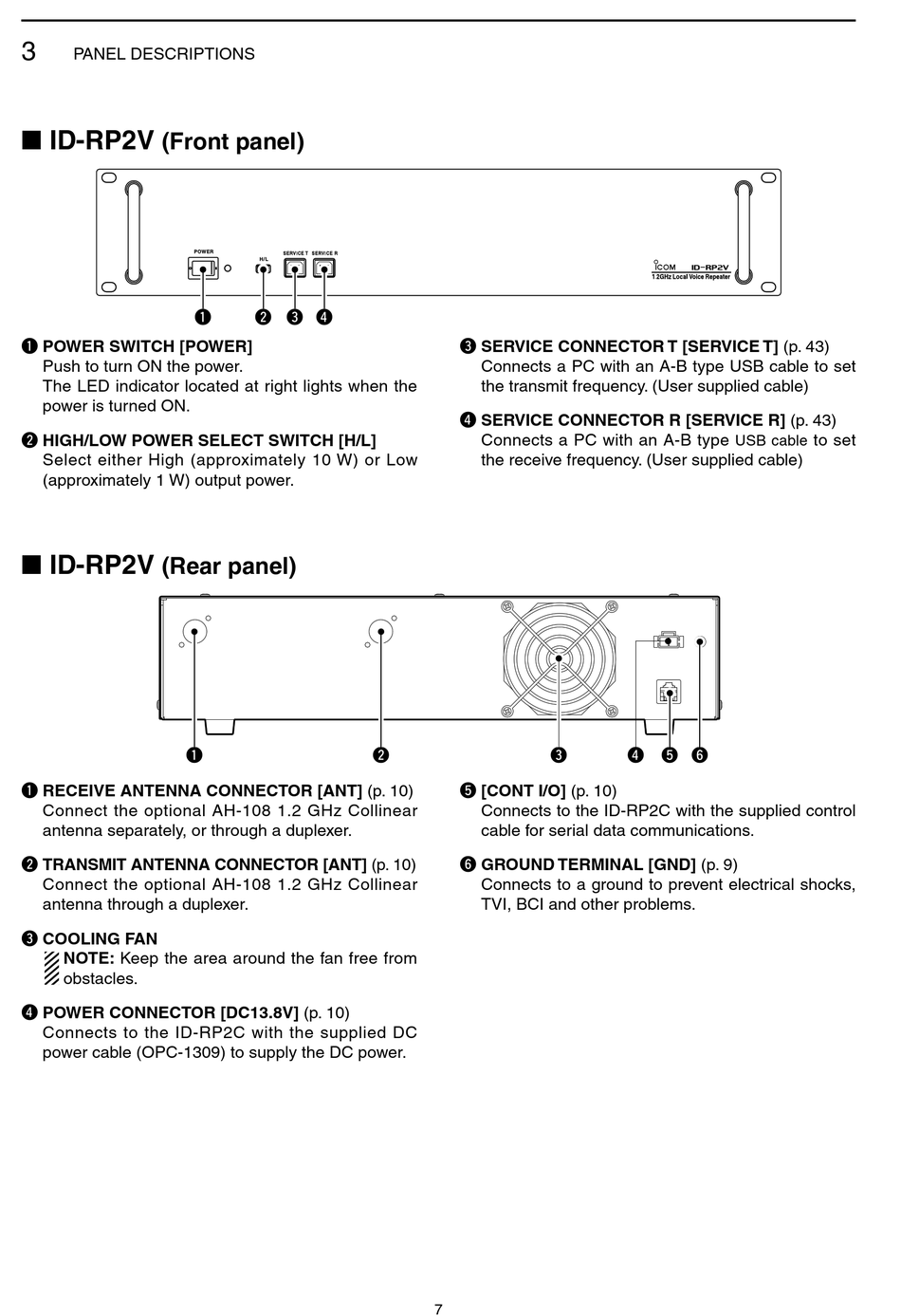

PANEL DESCRIPTIONS
ID-RP2V
(Front panel)
■
q POWER SWITCH [POWER]
Push to turn ON the power.
The LED indicator located at right lights when the
power is turned ON.
w HIGH/LOW POWER SELECT SWITCH [H/L]
Select either High (approximately 10 W) or Low
(approximately 1 W) output power.
ID-RP2V
■ (Rear panel)
q
q RECEIVE ANTENNA CONNECTOR [ANT] (p. 10)
Connect the optional AH-108 1.2 GHz Collinear
antenna separately, or through a duplexer.
w TRANSMIT ANTENNA CONNECTOR [ANT] (p. 10)
Connect the optional AH-108 1.2 GHz Collinear
antenna through a duplexer.
e COOLING FAN
NOTE: Keep the area around the fan free from
obstacles.
r POWER CONNECTOR [DC13.8V] (p. 10)
Connects to the ID-RP2C with the supplied DC
power cable (OPC-1309) to supply the DC power.
q w e r
e SERVICE CONNECTOR T [SERVICE T] (p. 43)
Connects a PC with an A-B type USB cable to set
the transmit frequency. (User supplied cable)
r SERVICE CONNECTOR R [SERVICE R] (p. 43)
Connects a PC with an A-B type
the receive frequency. (User supplied cable)
w
t [CONT I/O] (p. 10)
Connects to the ID-RP2C with the supplied control
cable for serial data communications.
y GROUND TERMINAL [GND] (p. 9)
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
7
e r t y
to set
USB cable
