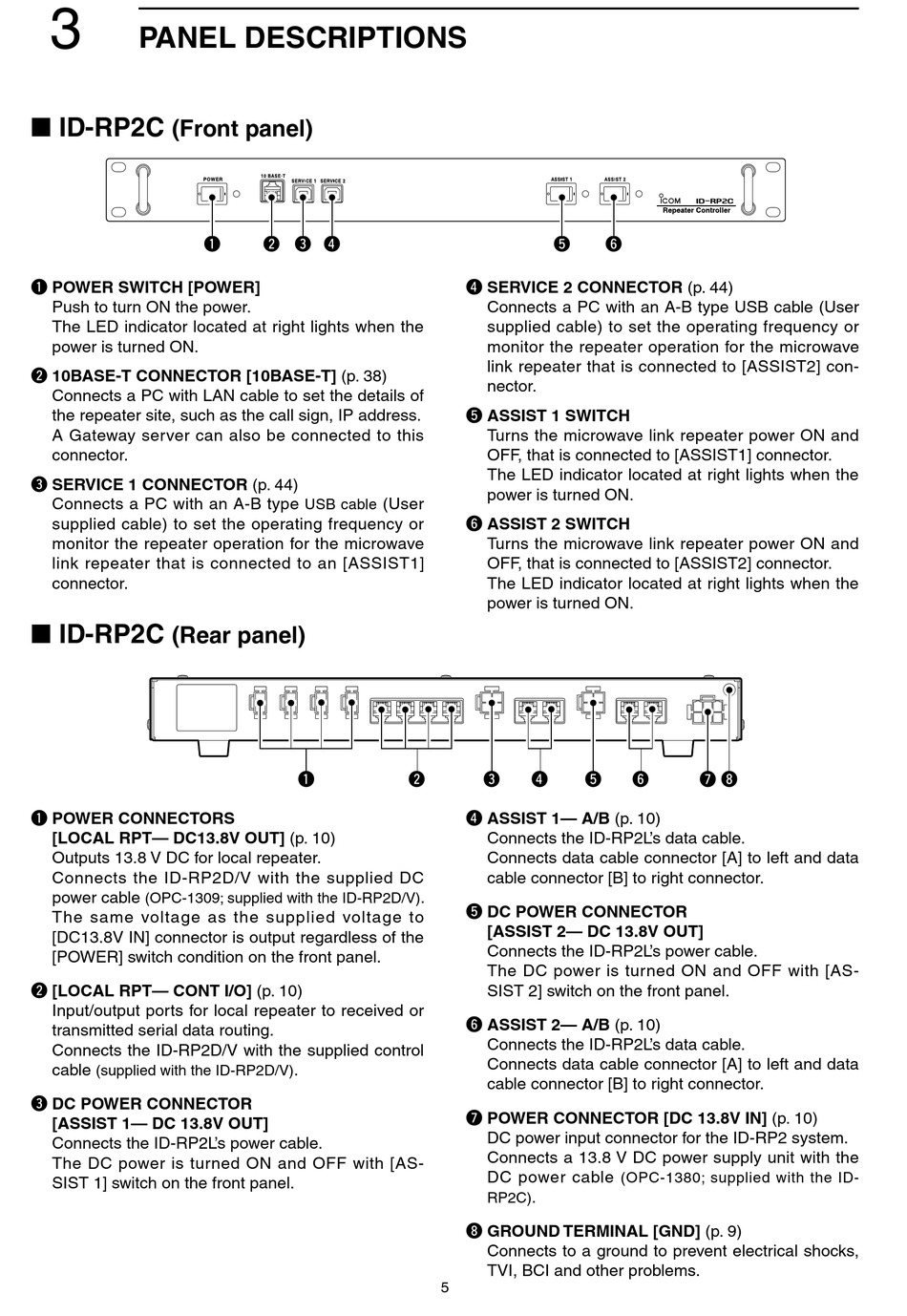

PANEL DESCRIPTIONS

ID-RP2C
■ (Front panel)
q POWER SWITCH [POWER]
Push to turn ON the power.
The LED indicator located at right lights when the
power is turned ON.
w 10BASE-T CONNECTOR [10BASE-T] (p. 38)
Connects a PC with LAN cable to set the details of
the repeater site, such as the call sign, IP address.
A Gateway server can also be connected to this
connector.
e SERVICE 1 CONNECTOR (p. 44)
Connects a PC with an A-B type
supplied cable) to set the operating frequency or
monitor the repeater operation for the microwave
link repeater that is connected to an [ASSIST1]
connector.
ID-RP2C
(Rear panel)
■
q POWER CONNECTORS
[LOCAL RPT— DC13.8V OUT] (p. 10)
Outputs 13.8 V DC for local repeater.
Connects the ID-RP2D/V with the supplied DC
power cable
(OPC-1309; supplied with the ID-RP2D/V)
The same voltage as the supplied voltage to
[DC13.8V IN] connector is output regardless of the
[POWER] switch condition on the front panel.
w [LOCAL RPT— CONT I/O] (p. 10)
Input/output ports for local repeater to received or
transmitted serial data routing.
Connects the ID-RP2D/V with the supplied control
cable
(supplied with the ID-RP2D/V)
e DC POWER CONNECTOR
[ASSIST 1— DC 13.8V OUT]
Connects the ID-RP2L's power cable.
The DC power is turned ON and OFF with [AS-
SIST 1] switch on the front panel.
q w e r
USB cable
q
.
r SERVICE 2 CONNECTOR (p. 44)
Connects a PC with an A-B type USB cable (User
supplied cable) to set the operating frequency or
monitor the repeater operation for the microwave
link repeater that is connected to [ASSIST2] con-
nector.
t ASSIST 1 SWITCH
Turns the microwave link repeater power ON and
OFF, that is connected to [ASSIST1] connector.
The LED indicator located at right lights when the
power is turned ON.
(User
y ASSIST 2 SWITCH
Turns the microwave link repeater power ON and
OFF, that is connected to [ASSIST2] connector.
The LED indicator located at right lights when the
power is turned ON.
w e r
r ASSIST 1— A/B (p. 10)
Connects the ID-RP2L's data cable.
Connects data cable connector [A] to left and data
cable connector [B] to right connector.
.
t DC POWER CONNECTOR
[ASSIST 2— DC 13.8V OUT]
Connects the ID-RP2L's power cable.
The DC power is turned ON and OFF with [AS-
SIST 2] switch on the front panel.
y ASSIST 2— A/B (p. 10)
Connects the ID-RP2L's data cable.
Connects data cable connector [A] to left and data
cable connector [B] to right connector.
u POWER CONNECTOR [DC 13.8V IN] (p. 10)
DC power input connector for the ID-RP2 system.
Connects a 13.8 V DC power supply unit with the
DC power cable
.
RP2C)
i GROUND TERMINAL [GND] (p. 9)
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
5
t y
t y u i
(OPC-1380; supplied with the ID-
