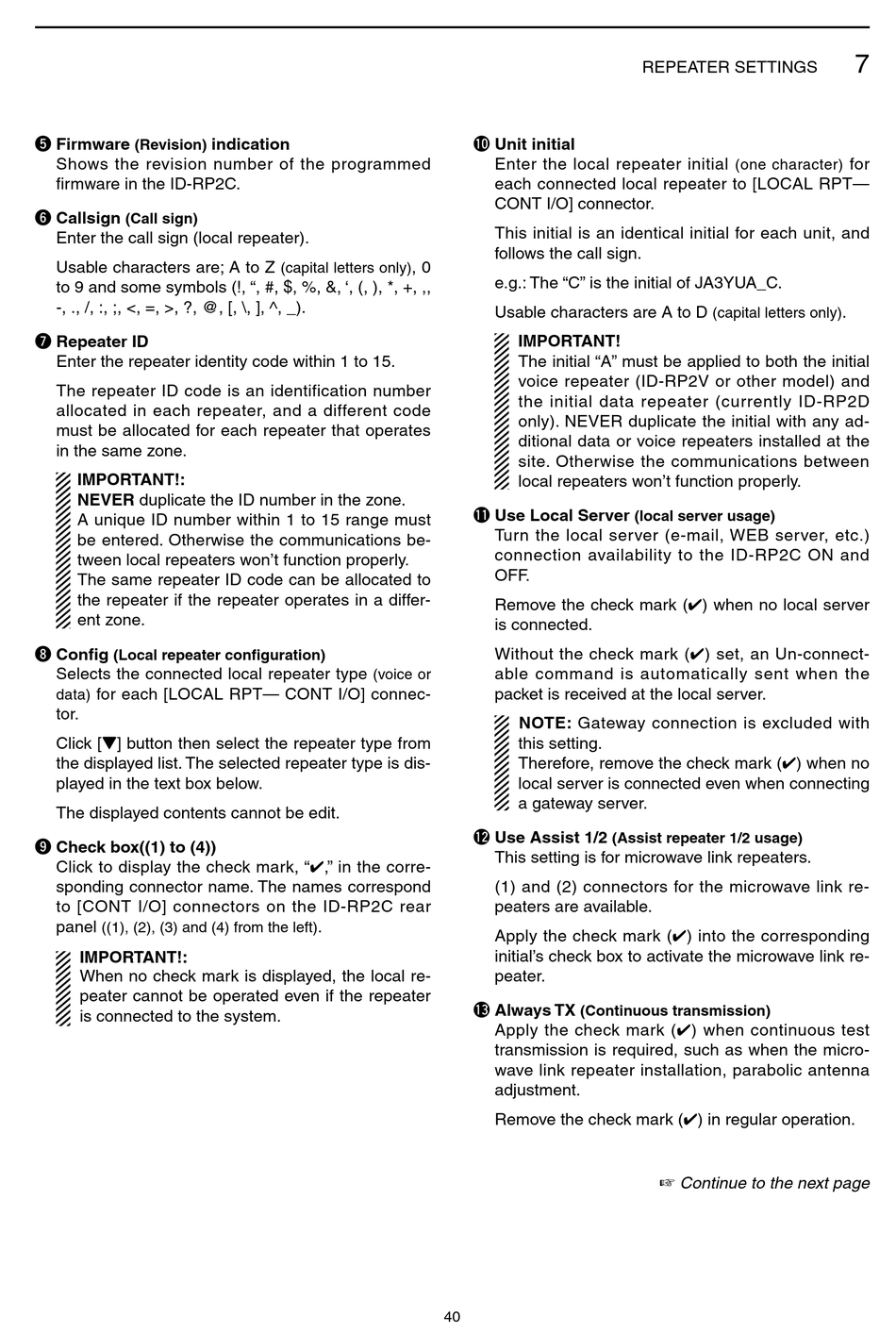

t Firmware
(Revision)
Shows the revision number of the programmed
firmware in the ID-RP2C.
y Callsign
(Call sign)
Enter the call sign (local repeater).
Usable characters are; A to Z
to 9 and some symbols (!, ", #, $, %, &, ', (, ), *, +, ,,
-, ., /, :, ;, <, =, >, ?, @, [, \, ], ^, _).
u Repeater ID
Enter the repeater identity code within 1 to 15.
The repeater ID code is an identification number
allocated in each repeater, and a different code
must be allocated for each repeater that operates
in the same zone.
IMPORTANT!:
NEVER duplicate the ID number in the zone.
A unique ID number within 1 to 15 range must
be entered. Otherwise the communications be-
tween local repeaters won't function properly.
The same repeater ID code can be allocated to
the repeater if the repeater operates in a differ-
ent zone.
i Config
(Local repeater configuration)
Selects the connected local repeater type
for each [LOCAL RPT— CONT I/O] connec-
data)
tor.
Click [Z] button then select the repeater type from
the displayed list. The selected repeater type is dis-
played in the text box below.
The displayed contents cannot be edit.
o Check box((1) to (4))
Click to display the check mark, "4," in the corre-
sponding connector name. The names correspond
to [CONT I/O] connectors on the ID-RP2C rear
panel
((1), (2), (3) and (4) from the left)
IMPORTANT!:
When no check mark is displayed, the local re-
peater cannot be operated even if the repeater
is connected to the system.
indication
(capital letters only)
(voice or
.
!0 Unit initial
Enter the local repeater initial
each connected local repeater to [LOCAL RPT—
CONT I/O] connector.
This initial is an identical initial for each unit, and
follows the call sign.
, 0
e.g.: The "C" is the initial of JA3YUA_C.
Usable characters are A to D
IMPORTANT!
The initial "A" must be applied to both the initial
voice repeater (ID-RP2V or other model) and
the initial data repeater (currently ID-RP2D
only). NEVER duplicate the initial with any ad-
ditional data or voice repeaters installed at the
site. Otherwise the communications between
local repeaters won't function properly.
!1 Use Local Server
Turn the local server (e-mail, WEB server, etc.)
connection availability to the ID-RP2C ON and
OFF.
Remove the check mark (4) when no local server
is connected.
Without the check mark (4) set, an Un-connect-
able command is automatically sent when the
packet is received at the local server.
NOTE: Gateway connection is excluded with
this setting.
Therefore, remove the check mark (4) when no
local server is connected even when connecting
a gateway server.
!2 Use Assist 1/2
This setting is for microwave link repeaters.
(1) and (2) connectors for the microwave link re-
peaters are available.
Apply the check mark (4) into the corresponding
initial's check box to activate the microwave link re-
peater.
!3 Always TX
(Continuous transmission)
Apply the check mark (4) when continuous test
transmission is required, such as when the micro-
wave link repeater installation, parabolic antenna
adjustment.
Remove the check mark (4) in regular operation.
