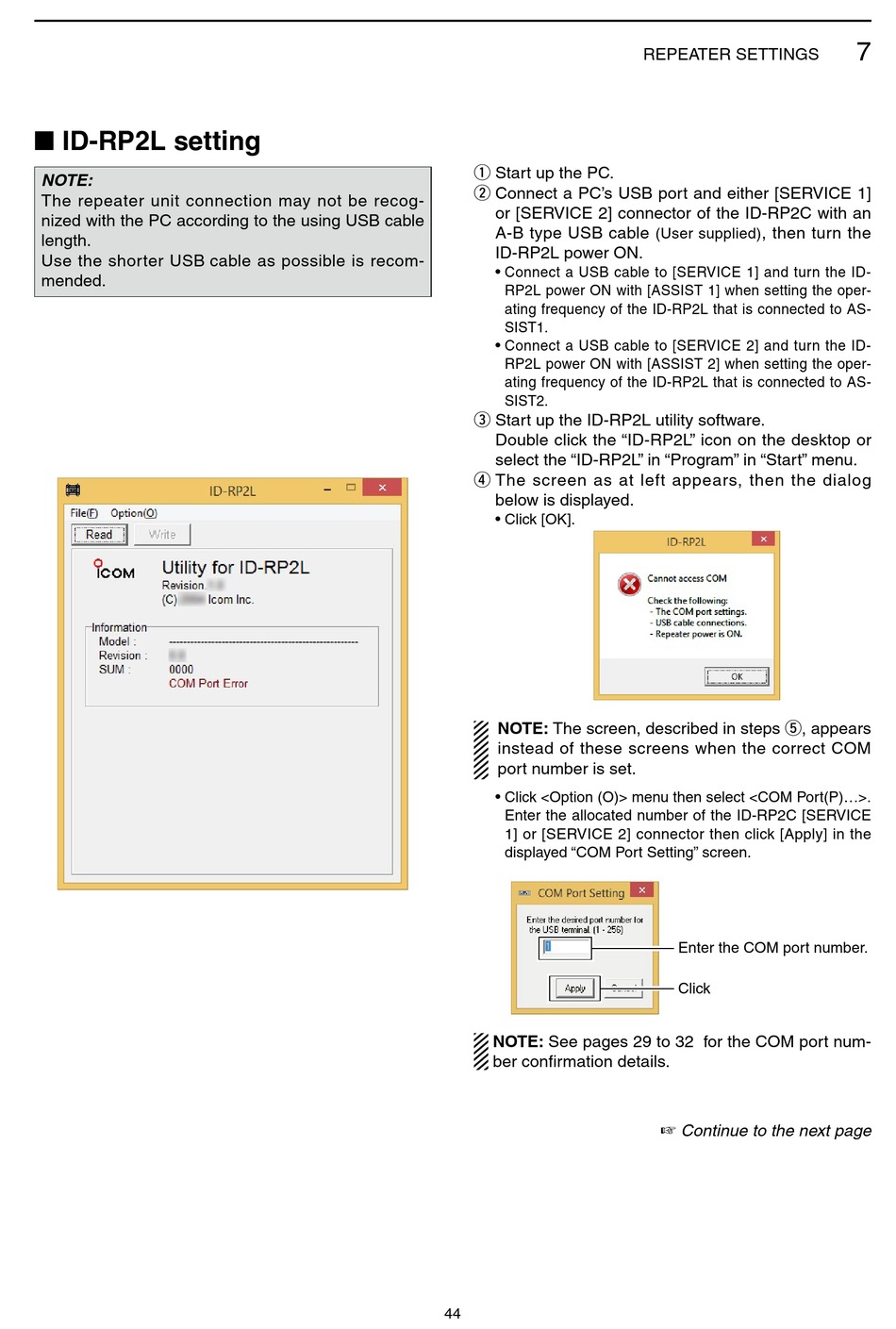

ID-RP2L setting

■
NOTE:
The repeater unit connection may not be recog-
nized with the PC according to the using USB cable
length.
Use the shorter USB cable as possible is recom-
mended.
q Start up the PC.
w Connect a PC's USB port and either [SERVICE 1]
or [SERVICE 2] connector of the ID-RP2C with an
A-B type USB cable
ID-RP2L power ON.
• Connect a USB cable to [SERVICE 1] and turn the ID-
RP2L power ON with [ASSIST 1] when setting the oper-
ating frequency of the ID-RP2L that is connected to AS-
SIST1.
• Connect a USB cable to [SERVICE 2] and turn the ID-
RP2L power ON with [ASSIST 2] when setting the oper-
ating frequency of the ID-RP2L that is connected to AS-
SIST2.
e Start up the ID-RP2L utility software.
Double click the "ID-RP2L" icon on the desktop or
select the "ID-RP2L" in "Program" in "Start" menu.
r The screen as at left appears, then the dialog
below is displayed.
• Click [OK].
NOTE: The screen, described in steps t, appears
instead of these screens when the correct COM
port number is set.
• Click <Option (O)> menu then select <COM Port(P)...>.
Enter the allocated number of the ID-RP2C [SERVICE
1] or [SERVICE 2] connector then click [Apply] in the
displayed "COM Port Setting" screen.
NOTE: See pages 29 to 32 for the COM port num-
ber confirmation details.
44

REPEATER SETTINGS

, then turn the
(User supplied)
Enter the COM port number.
Click
+ Continue to the next page
