882 Video Test Instrument User Guide (Rev A.35)
This image displays pseudo-random noise using 24-bits-per-pixel color depth.
Used with analyer to verify the analyzer's pseudo-random noise analysis capability. The
PRN_5 image introduces 5 pixel errors per color component, while the PRN_9 image
introduces 9 pixel errors per color component.

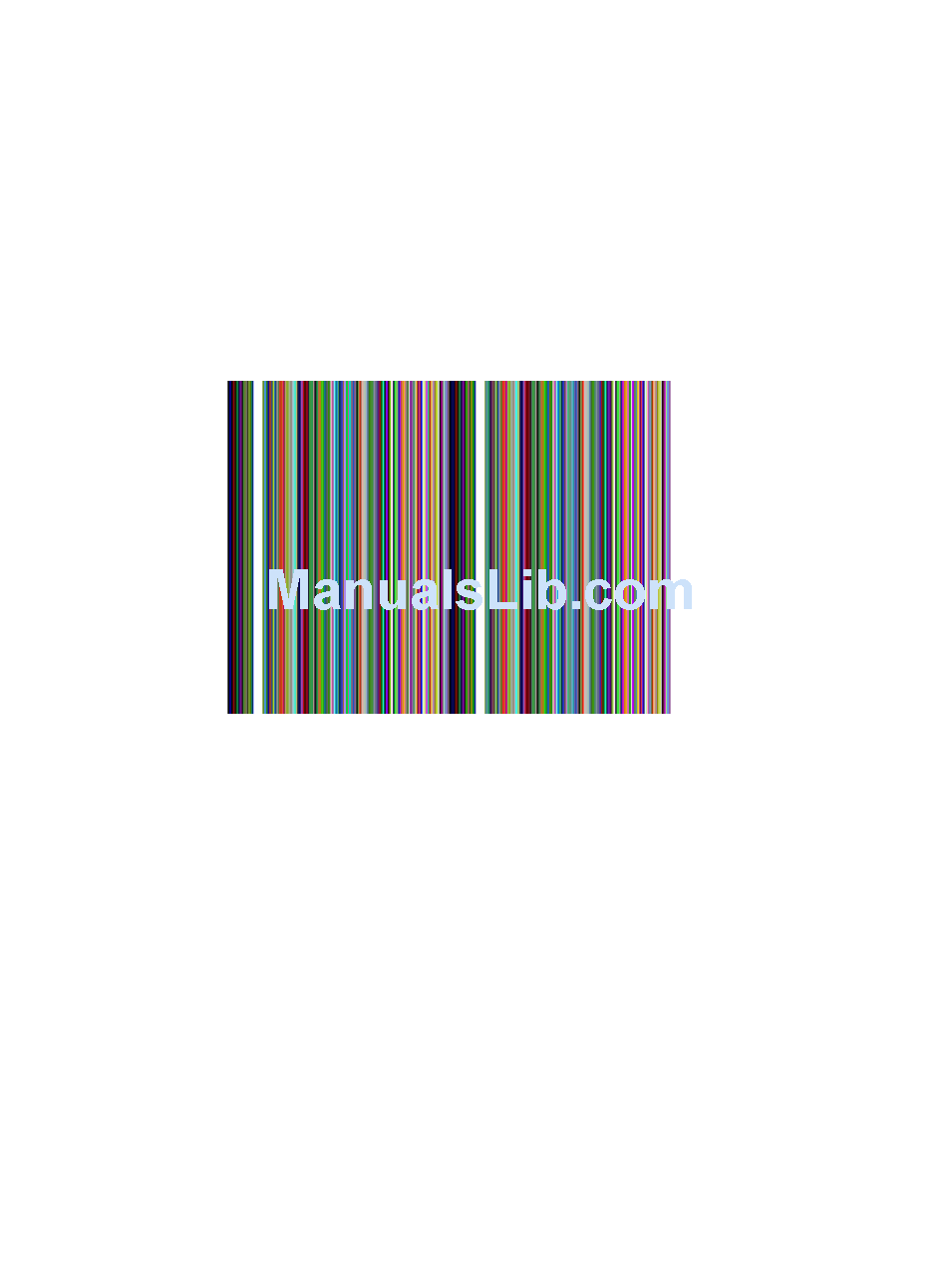

The PRN_5 image is shown below.
'
This image is intended for TV formats, but can be displayed with any format up to 100
MHz. The image looks like two vertical lines followed by a wide vertical bar on a display's
screen. The first line is a sine-squared modulated pulse that fades from black to red and
