P10
Description
PacketRx
Description
PacketTx
Description
624 Appendix B Image Reference

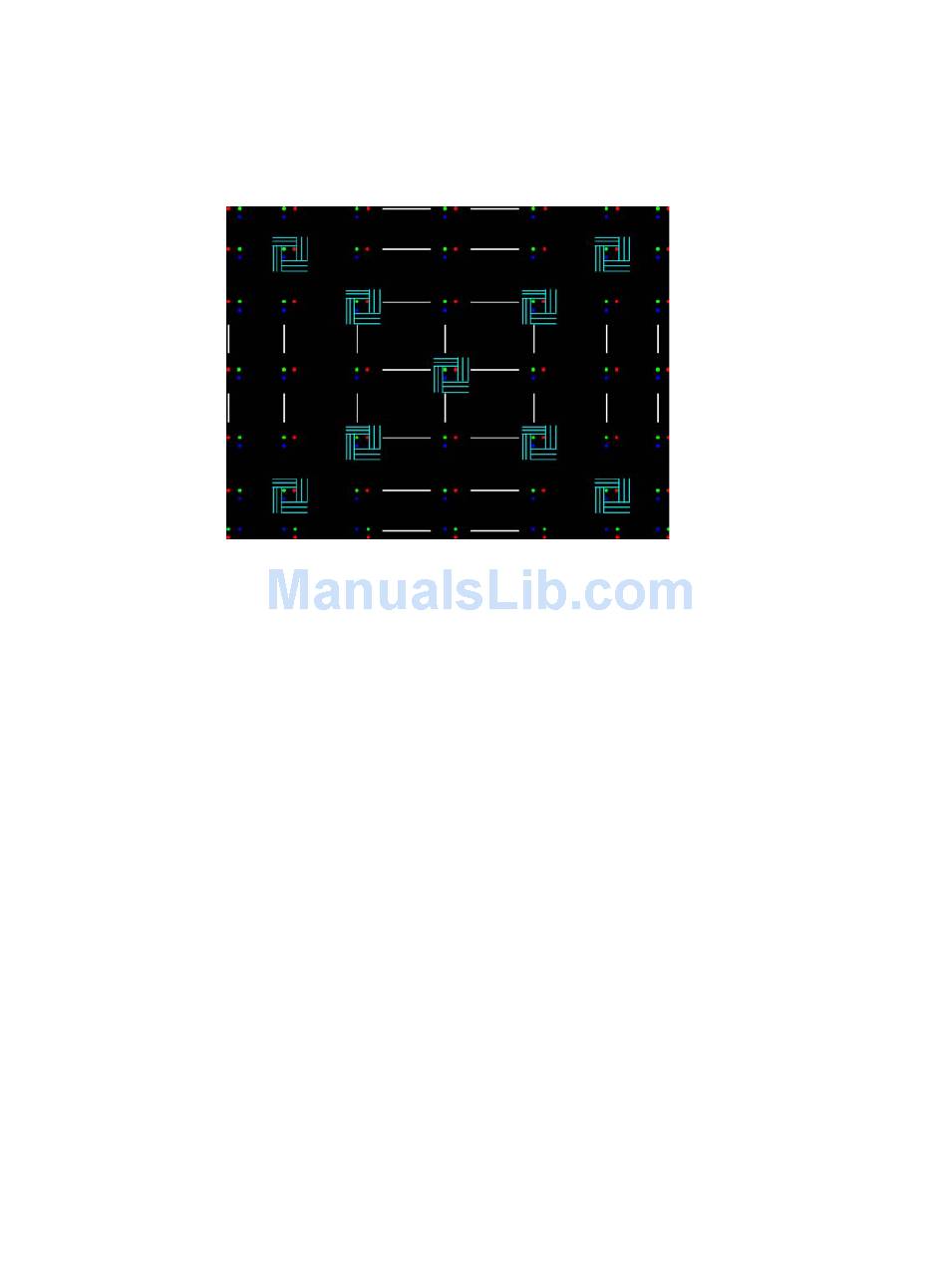

Special test image developed per customer specifications. There are four versions of this
image.
After pressing the Contents key and then the Options key you then enable More and use
the +/- increment keys to proceed through the subimages to select up to 4 different
versions of this image.
Displays the InfoFrame data received by HDMI receiver. For more information, see
"Testing HDMI transmit device InfoFrame
Displays the InfoFrame data transmitted from the HDMI transmitter. For more information,
see "Viewing InfoFrame contents (882
capability" on page 286.
only)" on page 308.
