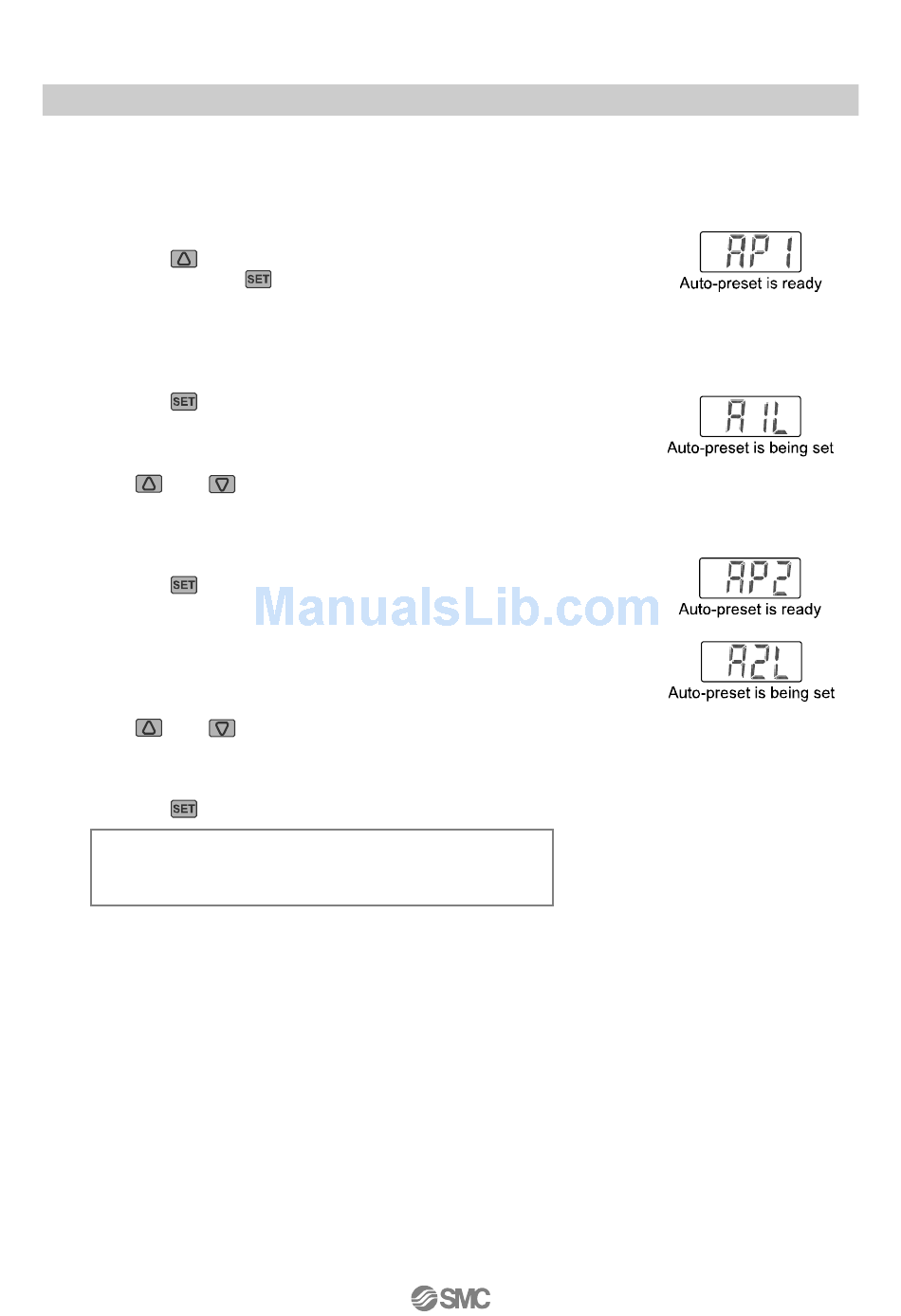

○Auto-preset
When auto-preset is selected in initialize, the set pressure can be calculated and memorized from
measured value. The set value is automatically optimized by repeating the suction and release of the object
for the setting.
1, Selection of auto-preset OUT1
•Press the
button in Measurement mode to select channel,
and then, press the
2, Preparation of OUT1 device
•Prepare the device for which the pressure of OUT1 is set.
3, Setting of auto-preset value of OUT1
•Press the
button to display [A1L].
•After measurement starts, operate the device and change the pressure.
•When the pressure change is detected, a set value will appear
automatically.
(The and
in case OUT1 setting is not necessary, measurement is stopped and [AP2]
will appear.)
4, Selection of auto-preset OUT2
•Press the
button to display [AP2].
5, Preparation and setting of OUT2 device
•Prepare the device for which the pressure of OUT2 is set, and perform
the setting of OUT2 in the same manner as that for OUT1.
•After [A2L] is displayed and measurement starts, when the pressure
change is detected, a set value will appear automatically.
(The and
in case OUT2 setting is not necessary, measurement mode returns.)
6, Completion of setting
•Press the
button and complete auto-preset mode. After that, measurement mode returns.
The set value are displayed in auto-preset as follows.
ON = A - (A - B)/4
OFF = B + (A - B)/4
button to display [AP1].
buttons are pressed simultaneously for 1 second or longer
buttons are pressed simultaneously for 1 second or longer
A = Max. pressure
B = Min. pressure
-23-
No.PS##-OMH0006-C
