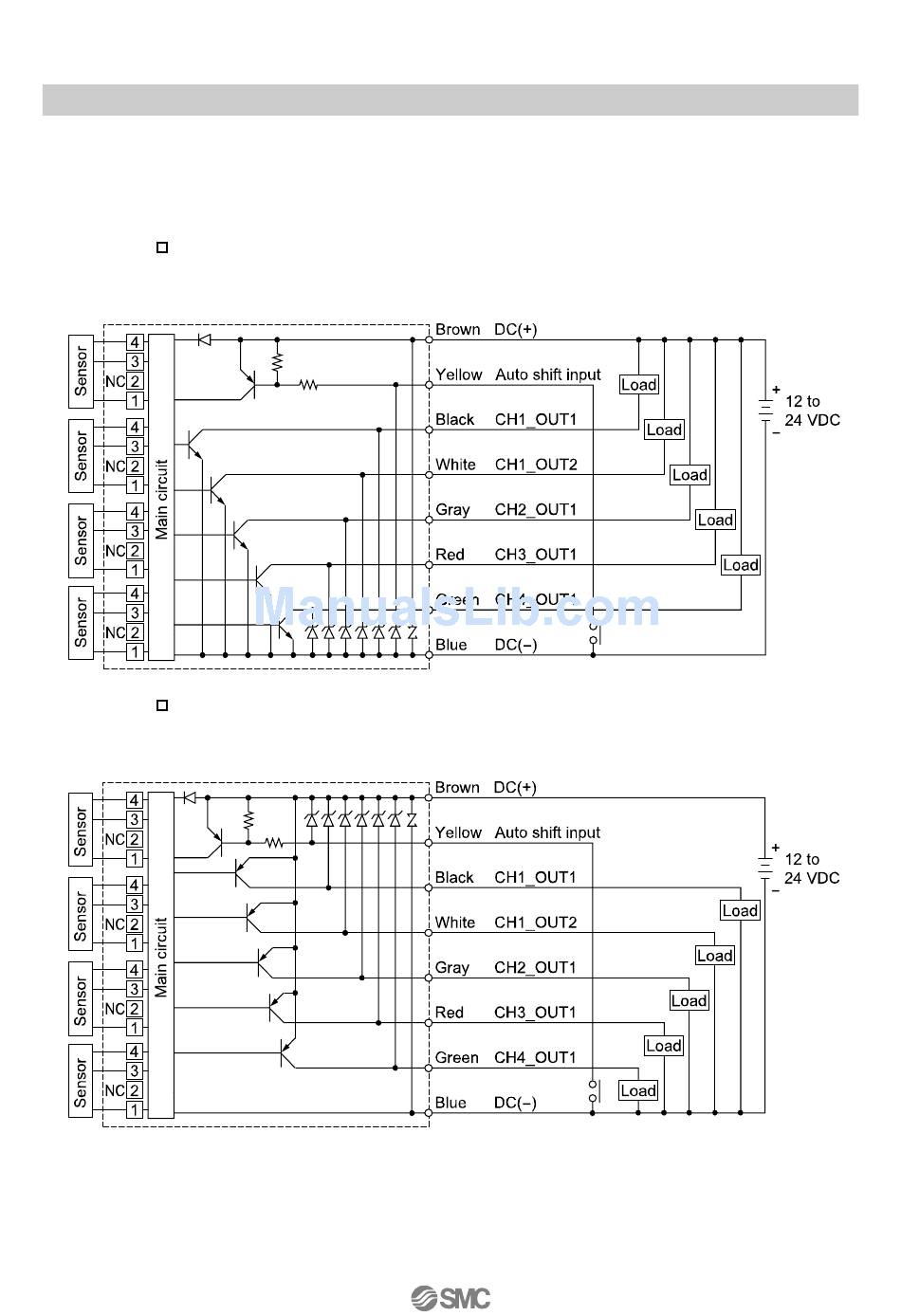

■Internal circuit and wiring example

○Output specification
When the lead wire with SMC power and output lead wire (Model: ZS-26-A) is used, the colors of wire
(Brown, Blue, White, Gray, Red, Green Yellow) will apply as shown on circuit diagram.
PSE200-(M) : NPN open collector 5 outputs + Auto-shift 1 input
Max. 30 V, 80 mA
Residual voltage 1 V or less
PSE201-(M) : PNP open collector 5 outputs + Auto-shift 1 input
Max. 80 mA
Residual voltage 1 V or less
-17-
No.PS##-OMH0006-C
