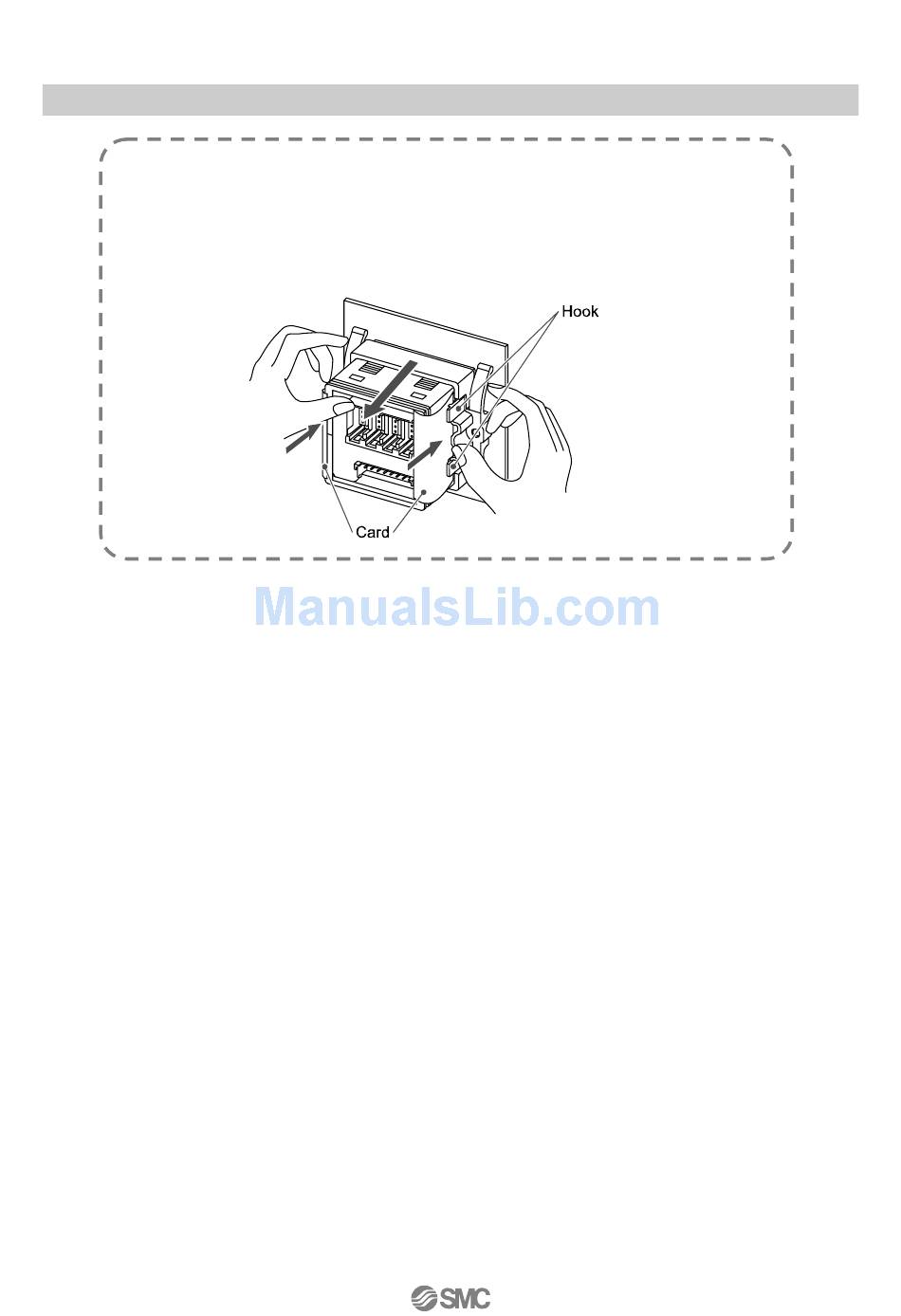

Notice when removing to the controller
●The Controller with the panel mount adapter can be removed from facility after
removing two screws as shown in a figure, by making insert the suitable thin card for
the hook of both the sides, pull a panel mount adapter to the front, and remove it.
If panel mount adapter is drawn forward with hook caught, the adapter and
Controller may be damaged.
-14-
No.PS##-OMH0006-C
