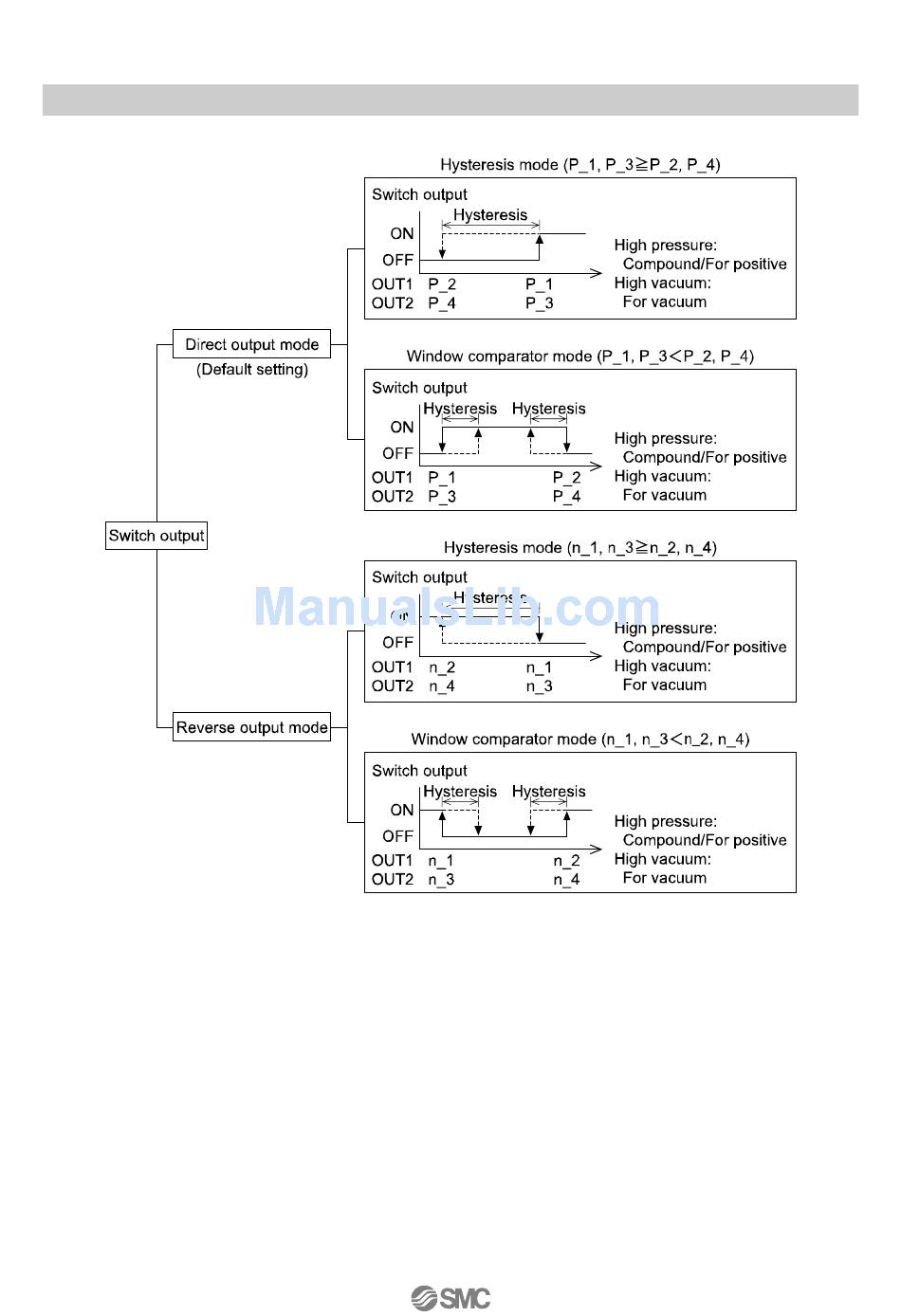

•List of output mode
•If input pressure fluctuates around the set point when hysteresis is set at 2 digits or less in hysteresis
mode, switch output may cause chattering.
•Hysteresis is fixed at 3 digits in window comparator mode. When the pressure is set, the space of 7
digits at min. needs to be taken.
→The space below 7 digits does not allow the operation.
-20-
No.PS##-OMH0006-C
