- Page 1 No. PF※※-OMK0004-F PRODUCT NAME Flow sensor MODEL / Series / Product Number PFMV5##...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions Model Indication and How to Order Summary of Product parts Definition and terminology Mounting and Installation Installation Piping Wiring Troubleshooting Specifications Specifications Characteristics data Dimensions No. PF※※-OMK0004-F... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
- Page 5 Operator This operation manual is intended for those who have knowledge of machinery using pneumatic equipment, and have sufficient knowledge of assembly, operation and maintenance of such equipment. Only those persons are allowed to perform assembly, operation and maintenance. Read and understand this operation manual carefully before assembling, operating or providing maintenance to the product.
- Page 6 Caution ■Do not touch the terminals and connectors while the power is on. Otherwise electric shock, malfunction or damage to the product can result. ■After maintenance is complete, perform appropriate functional inspections and leak tests. Stop operation if the equipment does not function properly or there is a leakage of fluid. When leakage occurs from parts other than the piping, the product might be faulty.
- Page 7 ●Product handling Installation Tighten to the specified tightening torque. If the tightening torque is exceeded the mounting screws and brackets may damaged. If the tightening torque is insufficient, the product may be displaced and the mounting screws may come loose ”Mounting and Installation”.) (Refer to page Ensure that the FG terminal is connected to ground when using a commercially available switch-mode...
- Page 8 Wiring Do not pull the lead wires. In particular, never lift a product equipped with fitting and piping by holding the lead wires. Otherwise damage to the internal parts can result, causing malfunction. Avoid repeatedly bending or stretching the lead wire, or placing heavy loads on it Repeated bending stress or tensile stress can cause damage to the sheath, or breakage of the wires.
- Page 9 Environment Do not use the product in area that is exposed to corrosive gases, chemicals, sea water, water or steam. Otherwise failure or malfunction can result. Do not use in a place where the product could be splashed by oil or chemicals. If the product is to be used in an environment containing oils or chemicals such as coolant or cleaning solvent, even for a short time, it may be adversely affected (damage, malfunction, or hardening of the lead wires) Do not use in an area where electrical surges are generated.
- Page 10 Adjustment and Operation Do not short-circuit the load. When the product load is short circuit, generated excess current lead to cause the damage of the product. Supply the power when there is no flow. If using the product to detect very small flow rates, warm up the product for 10 to 15 minutes first. There will be a drift on the analogue output of approximate 2 to 30% immediately after supply is turn on.
-
Page 11: Model Indication And How To Order
Model Indication and How to Order -10- No. PF※※-OMK0004-F... - Page 12 Option without L-type brackets with 2 L-type brackets : Each accessory is not assembled with the product, but shipped together. Accessories/Part number If an accessory is required separately, order using the following part numbers. Part number Description Remarks ZS-36-A1 1 station: 2 L-type brackets With mounting screws (M3 x 15 L) 2 pcs.
-
Page 13: Summary Of Product Parts

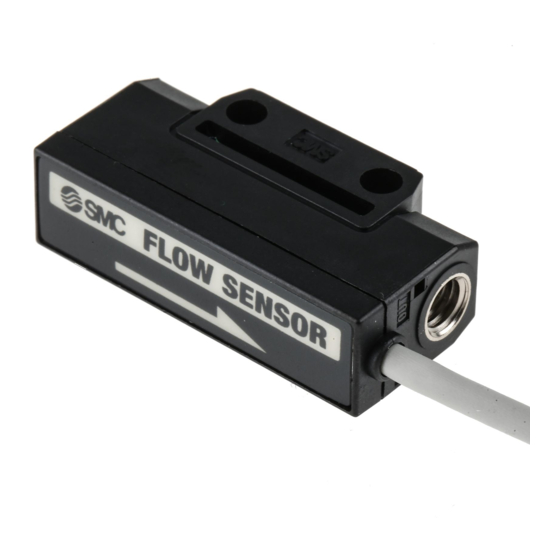

Summary of Product parts Item Description Piping port Connection port for piping. Body The body of the product. Mounting hole Used to mount the product on a DIN rail or directly, to a panel. Lead wire Lead wire to supply power and transmit output signals. -12- No. -
Page 14: Definition And Terminology
■Definition and terminology Terminology Definition A type of variable output that has a value proportional to the measured Analogue output quantity. When the analogue output is in the range of 1 to 5 V, it will vary continuously, following the change of flow. Stands for "full span"... -
Page 15: Mounting And Installation
Mounting and Installation ■Installation When the product is installed in a vertical direction, a natural convection is generated due to the sensor characteristics around the zero flow range, so there is a possibility that an error up to approximately 3%F.S. might be generated. - Page 16 Manifold mounting Mount the bracket using the mounting screws supplied. The required tightening torque is 0.32 ± 0.02 Nm. Mounting in series using the mounting brackets is not suitable for all models, depending on which fitting type is used. Install the product (with bracket) using the M4 screws (4 pcs.). Bracket thickness is approximately 1 mm.
-
Page 17: Piping
Avoid sudden changes in the piping size on the IN side of the sensor. Use this product within the specified operating pressure and temperature ranges. Use this product within the rated flow range. Proof pressure is 500 kPa. PFMV5 series recommended fitting list One-Touch fitting/Series KQ2 Type Tube dimension mm... -
Page 18: Wiring
■Wiring Wiring of connector Connections should only be made with the power supply turned off. Use separate routes for the product wiring and any power or high voltage wiring. Otherwise, malfunction may result due to noise. Ensure that the FG terminal is connected to ground when using a commercially available switch-mode power supply. -
Page 19: Troubleshooting
Troubleshooting Troubleshooting If an operation failure occurs with the product, use the chart below to find out the cause of the problem. If none of the countermeasures seem to be applicable, or a replacement product operates normally when installed, the product may be faulty. A product can be damaged by the operating environment (system configuration etc). -
Page 20: Specifications
Specifications ■Specifications Model PFMV505 PFMV510 PFMV530 PFMV505F PFMV510F PFMV530F Dry air, N Applicable fluid (air quality class to ISO8573-1 1.1.2 to 1.6.2, JIS B8392-1 1.1.2 to 1.6.2) 1 Rated flow range 0 to 0.5 0 to 1 0 to 3 -0.5 to 0.5 -1 to 1 -3 to 3... -
Page 21: Characteristics Data
■Characteristics data ●Analogue output characteristics (Non-linear output) -20- No. PF※※-OMK0004-F... - Page 22 ●Pressure loss ●Nozzle diameter and flow characteristics (Approximate values) Refer to catalog for details. -21- No. PF※※-OMK0004-F...
-
Page 23: Dimensions
■Dimensions (in mm) PFMV5□□ PFMV5□□ + L-type bracket Mount on one side Mount on both sides -22- No. PF※※-OMK0004-F... - Page 24 Revision history A: Revise contents partly several. B: Complete revision. C: Revise contents partly several. D: Contents revised in several places. E: Contents revised in several places. [September 2016] F: Contents revised in several places. [August 2018] 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note:...
