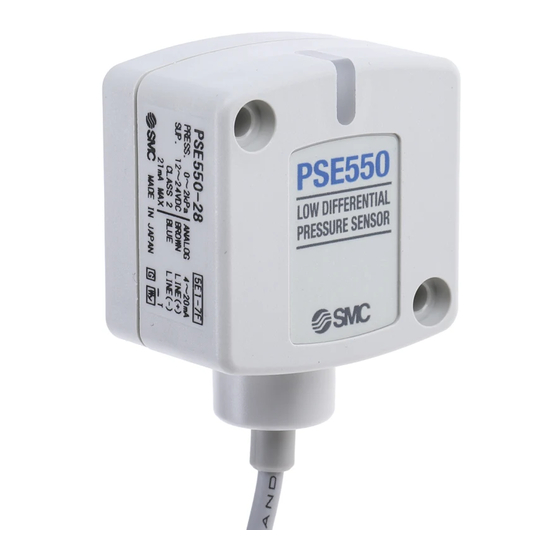

Pressure sensor
Hide thumbs Also See for PSE550:
Table of Contents

Advertisement

Quick Links

No.PS※※-OMG0009-C
PRODUCT NAME

Pressure Sensor

MODEL / Series / Product Number
PSE550

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSE550 and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks PSE550

Summary of Contents for SMC Networks PSE550

  • Page 1: Pressure Sensor

    No.PS※※-OMG0009-C PRODUCT NAME Pressure Sensor MODEL / Series / Product Number PSE550...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions Model Identification and How to Order Definition and terminology Mounting and Installation Piping Wiring Troubleshooting Specification Specifications Dimensions No.PS※※-OMG0009-C...

  • Page 3: Safety Instructions

    Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
  • Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
  • Page 5 Operator This operation manual is intended for those who have knowledge of machinery using pneumatic equipment, and have sufficient knowledge of assembly, operation and maintenance of such equipment. Only those persons are allowed to perform assembly, operation and maintenance. Read and understand this operation manual carefully before assembling, operating or providing maintenance to the product.
  • Page 6 ■NOTE ○Follow the instructions given below when designing, selecting and handling the product. ●The instructions on design and selection (installation, wiring, environment, adjustment, operation, maintenance, etc.) described below must also be followed. Product specifications The direct current power supply to combine should be UL approved as follows. Circuit (of Class2) which is of maximum 30 Vrms (42.4 V peak) or less, with UL1310 Class2 power supply unit or UL1585 Class2 transformer.
  • Page 7 Wiring Do not pull the lead wires. In particular, never lift a Pressure Sensor equipped with fitting and piping by holding the lead wires. Avoid repeatedly bending or stretching the lead wire, or placing heavy load on them. Repetitive bending stress or tensile stress can cause the sheath of the wire to peel off, or breakage of the wire. If the lead wire can move, fix it near the body of the product.
  • Page 8 Adjustment and Operation Do not short-circuit the load. If using the product to detect very small pressure rates, warm up the product for 20 to 30 minutes first. There will be a drift on the analogue output of approximate 1% immediately after the power supply is turned on, within 10 minutes.

  • Page 9: Model Identification And How To Order

    Model Indication and How to Order ○Option Description Part number Remarks Bracket ZS-30-A With M3x5 L (2 pcs.) Connector for pressure sensor controller ZS-28-C 1 pc. ■Definition and terminology Terms Meaning Abbreviation for full span and full scale; means the maximum fluctuation range of F.S.

  • Page 10: Mounting And Installation

    Mounting and Installation ■Piping ○Piping connections Cut the air tube perpendicularly. Grasp the air tube and insert it to resin firmly by 8 mm or more from the end the resin piping. The pulling force necessary for the piping inserted by 8 mm or more is approximate 25N. Insert the air tube for low pressure to Lo piping and the air tube for high pressure to Hi piping.
  • Page 11 When disconnecting the connector, push down the lever by thumb to disengage the lever claw from the square groove. Then pull the connector straight out. PSE300 series ○Internal circuit and wiring example Output specification PSE550 Voltage output: 1 to 5 V Output impedance: Approx. 1 kΩ PSE550-28 Current output: 4 to 20 mA Allowable load impedance: 500 Ω...

  • Page 12: Troubleshooting

    Troubleshooting ○Cross-reference for troubleshooting Problem Possible cause Investigation method Countermeasure Check if the analogue output line is Incorrect wiring Correct the wiring. connected with a load. (1) Check if the proper load is connected. Non-compliance (2) Check if input impedance of input Connect a proper load.

  • Page 13: Specification

    Specification ■Specifications Model No. PSE550 PSE550-28 Rated differential pressure range 0 to 2 kPa  Operating pressure range -50 to 50 kPa Extension analogue output range -0.2 to 0 kPa Withstand pressure 65 kPa Applicable Air, inert gases and incombustible gases Power supply voltage 12 to 24 VDC±10%, ripple (p-p) 10% or less (Protected against inverse connection)
  • Page 14 ○Analogue output PSE550 PSE550-28 -13- No.PS※※-OMG0009-C...

  • Page 15: Dimensions

    ■Dimensions ○Body dimensions ○Mounting by bracket -14- No.PS※※-OMG0009-C...
  • Page 16 Revision history A: Complete revision. B: Limited warranty and Disclaimer and measurement laws are added. C: Modified errors in text. [July 2016] 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.

This manual is also suitable for:

Pse550-28
