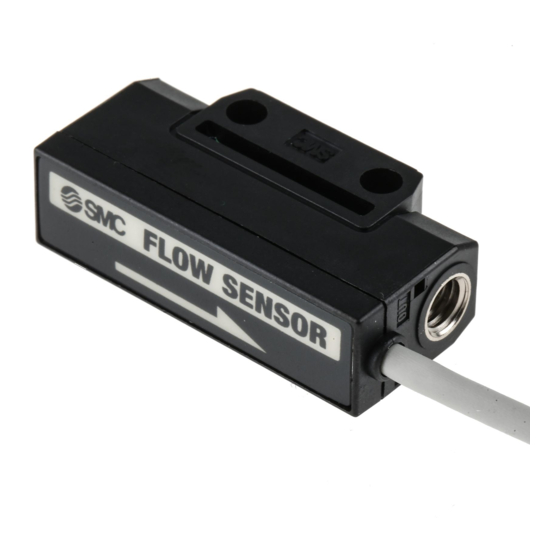

Flow sensor
Hide thumbs Also See for PFMV5 Series:

Advertisement

No.PF##-OMK0004-B
Flow sensor
PRODUCT NAME
PFMV5##
MODEL/ Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFMV5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMC Networks PFMV5 Series

  • Page 1 No.PF##-OMK0004-B Flow sensor PRODUCT NAME PFMV5## MODEL/ Series...
  • Page 2: Table Of Contents

    Table of Contents Safety Instructions Model Indication Method Names of Individual Parts Definition and terminology Mounting and Installation Installation Piping Wiring Troubleshooting Specification Specifications Flow characteristic chart Dimensions No.PF##-OMK0004-B...
  • Page 3: Safety Instructions

    Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of Caution Warning " " " " Danger . They are all important notes for safety and must be followed in addition to International "...
  • Page 4 Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
  • Page 5 Operator ♦This operation manual has been written for those who have knowledge of machinery and apparatus that use pneumatic equipment and have full knowledge of assembly, operation and maintenance of such equipment. ♦Please read this operation manual carefully and understand it before assembling, operating or providing maintenance service to the product.
  • Page 6 ■NOTE ○Follow the instructions given below when designing, selecting and handling the product. ●The instructions on design and selection (installation, wiring, environment, adjustment, operation, maintenance, etc.) described below must also be followed. ∗Product specifications •The direct current power supply to combine should be UL approved as follows. Circuit (of class 2) which is of maximum 30 Vrms (42.4 V peak) or less, with UL 1310 class 2 power supply unit or UL 1585 class 2 transformer.
  • Page 7 ●Product handling ∗Installation •Tighten to the specified tightening torque. If the tightening torque is exceeded the mounting screws and brackets may be broken. If the tightening torque is insufficient, the product can be displaced and loosen the mounting screws. (Refer to "Mounting and Installation" on page 12 to 13.) •Be sure to ground terminal FG when using a commerically available switch-mode power supply.
  • Page 8 ∗Wiring •Do not pull the lead wires. In particular, never lift a product equipped with fitting and piping by holding the lead wires. Otherwise damage to the internal parts can result, causing malfunction. •Avoid repeatedly bending or stretching the lead wire, or placing heavy load on them. Repetitive bending stress or tensile stress can cause the sheath of the wire to peel off, or breakage of the wire.
  • Page 9 •Do not expose the product to direct sunlight. If using in a location directly exposed to sunlight, shade the product from the sunlight. Otherwise failure or malfunction can result. •Keep within the specified fluid and ambient temperatures range. The fluid temperature range and ambient temperature range is 0 to 50 Operation under low temperature fleads to cause damage or operation failure due to frozen moist in the fluid or air.
  • Page 10: Model Indication Method

    Model Indication Method No.PF##-OMK0004-B...
  • Page 11: Names Of Individual Parts

    Names of Individual Parts Piping port: Connection port for piping. Body: Flow switch itself. Through hole: Used to mount the flow switch on a DIN rail or a panel directly. -10- No.PF##-OMK0004-B...
  • Page 12: Definition And Terminology

    ■ Definition and terminology Initial Terms Meaning It reads “full span” or “full scale”, and indicates varied analog output range at rated value. For example, when analog output is 1 to 5V, F.S.=5[V]-1[V] F.S. (Full span, Full scale) =4[V], (ref. 1%F.S.=4[V]x1%=0.04[V]) Non-linear output Indicates non linear output.
  • Page 13: Mounting And Installation

    Mounting and Installation ■ Installation Direct mounting Mounting on one side Mount on both sides •Mount with the set screws M3 (2 pcs.) for direct installation. •Thread tightening torque is 0.32±0.02 Nm □ Manifold mounting (using ZS-36-A •Thread tightening torque is 0.32±0.02 Nm •Mounting in series using the mounting brackets is not suitable for all models, depending on which fitting type is used.
  • Page 14: Piping

    Piping During installation of the product to the pipe, hold the body with specified spanner. •Tightening torque to mount the fitting is 1 to 1.5 Nm. PFMV5 series recommended fitting list One-Touch fitting ■ Male Connector (One-Touch Male Connector)/KQ2H04-M5 ■ Hexagon Socket head Male Connector/KQ2S04-M5 ■...
  • Page 15: Troubleshooting

    Troubleshooting Troubleshooting Applicable product: PFMV5 If operation failure happens at a product, please seek a cause of your trouble with the following chart by tracing failure applicable to your case. If the cause you reached seems not to be applicable to your case, and the product operates normally after replacing the failed one with a new one, the product would be broken.
  • Page 16: Specification

    Specification ■Specifications Model PFMV505 PFMV510 PFMV530 PFMV505F PFMV510F PFMV530F Dry air, N Measured fluid (Air quality class is ISO8573-1 1.1.2 to 1.6.2 : 2001) Flow rate L /min 0 to 0.5 0 to 1 0 to 3 -0.5 to 0.5 -1 to 1 -3 to 3 (measurement range)
  • Page 17 Lead Wire Specifications Conductor Outside diameter 0.58 mm Material Cross-linked vinyl chloride (XL-PVC) Insulator Outside diameter 0.88 mm Colours Brown, Blue, Black Sheath Material Oil-resistant/Heat resistant vinyl +0.1 φ2.6 Finished outside diameter -0.15 -16- No.PF##-OMK0004-B...
  • Page 18: Flow Characteristic Chart

    Flow characteristic chart •Refer to catalog for details of flow characteristic. -17- No.PF##-OMK0004-B...
  • Page 19: Dimensions

    ■Dimensions With L-type bracket Mount on one side Mount on both sides -18- No.PF##-OMK0004-B...
  • Page 20 Revision history A: Make an overall revision URL http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2010 SMC Corporation All Rights Reserved No.EX##-OMK0004-B...
