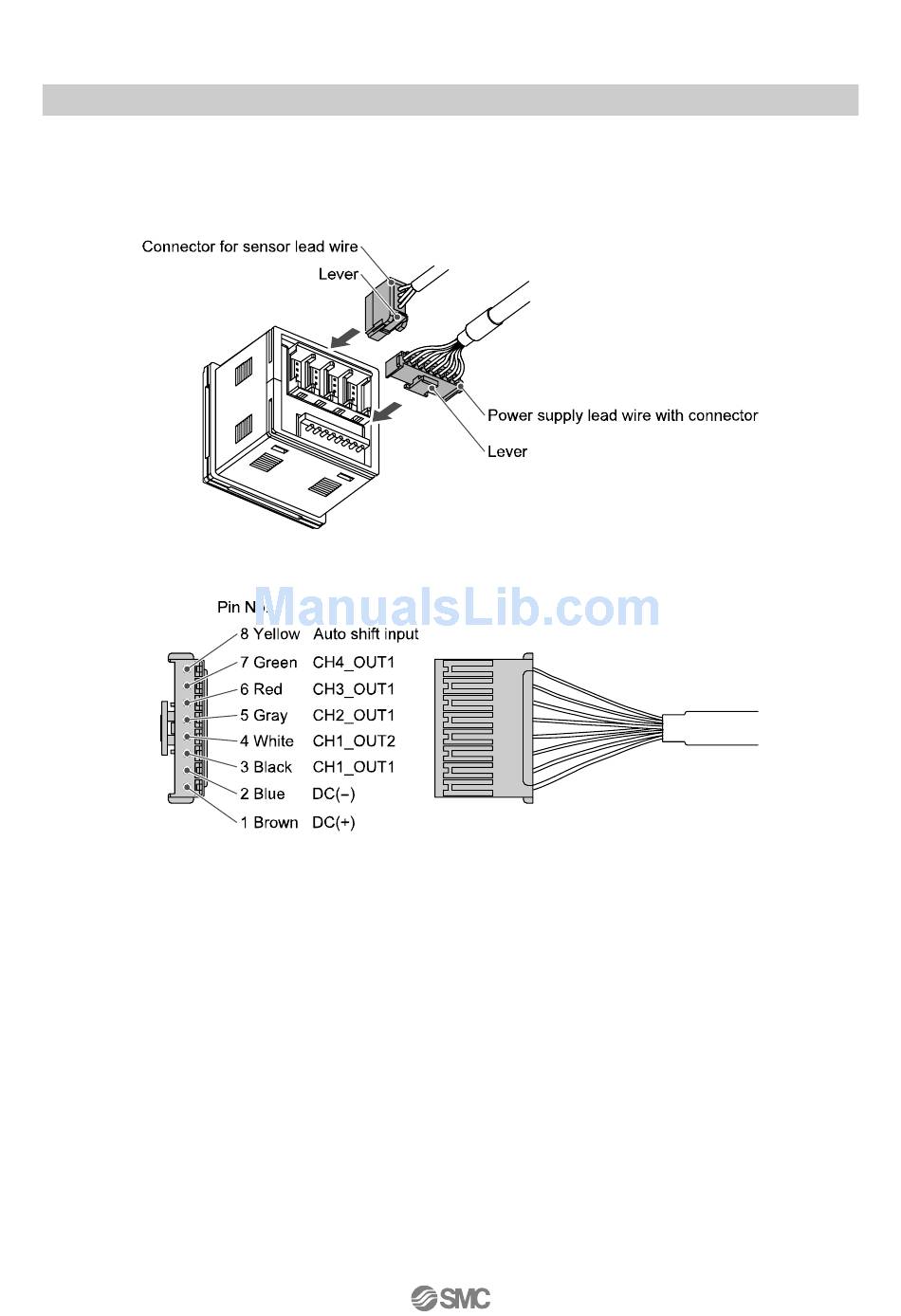

○Connector
Connecting/Disconnecting
•When connecting the connector, insert it straight onto the pin and lock the connector into the square
groove in the housing until connector clicks.
•When removing the connector, press down the lever with your thumb and pull the connector straight out.
Pin No. of the connector
-16-
No.PS##-OMH0006-C
