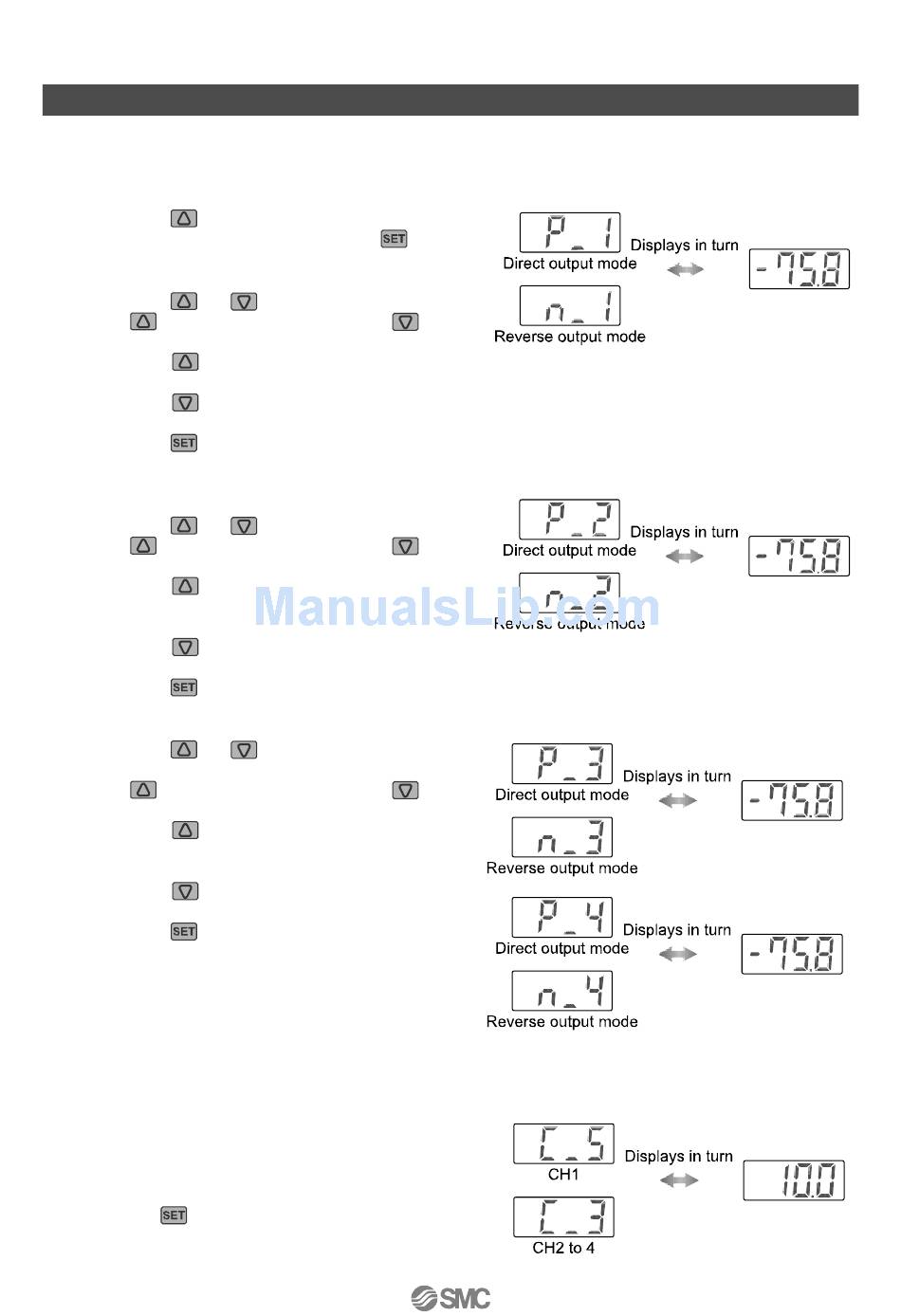

Pressure Setting

○Manual setting
Manually set a set value of the controller. Pressure setting is made for respective channel.
1, Selection of OUT1 [P_1] setting mode
•Press the
button during the Measurement mode
to select channel, and then, press the
to display set values.
•[P_1] or [n_1] and set value are displayed in turn.
•Press the
or
The button is for increase and the
is for decrease.
Press the button once to increase by one figure, and press it continuously to keep set figure
increased.
Press the button once to decrease by one figure, and press it continuously to keep set figure
decrease.
•Press the
button to finish the setting.
2, Selection of OUT1 [P_1] setting mode
•[P_2] or [n_2] and set value are displayed in turn.
•Press the
or
The button is for increase and the
is for decrease.
Press the button once to increase by one
figure, and press it continuously to keep set figure
increased.
Press the button once to decrease by one figure, and press it continuously to keep set figure
decrease.
•Press the
button to finish the setting.
3, Selection of OUT2 [P_3, P_4] setting mode (only CH1)
•Press the
or
value as in 1, 2.
The button is for increase and the
is for decrease.
Press the button once to increase by one
figure, and press it continuously to keep set figure
increased.
Press the button once to decrease by one figure,
and press it continuously to keep set figure decrease.
•Press the
button to finish the setting.
4, Auto-shift compensation value setting
•[C_5] ([C_3] for CH2 to CH4) and auto-shift
corrected Value will displayed in turn.
Without auto-shift input setting, Correction values
displays Zero.
•Press the
button to return to the measurement.
button
button to change the set value.
button
button to change the set value.
button
button to change the set
button
