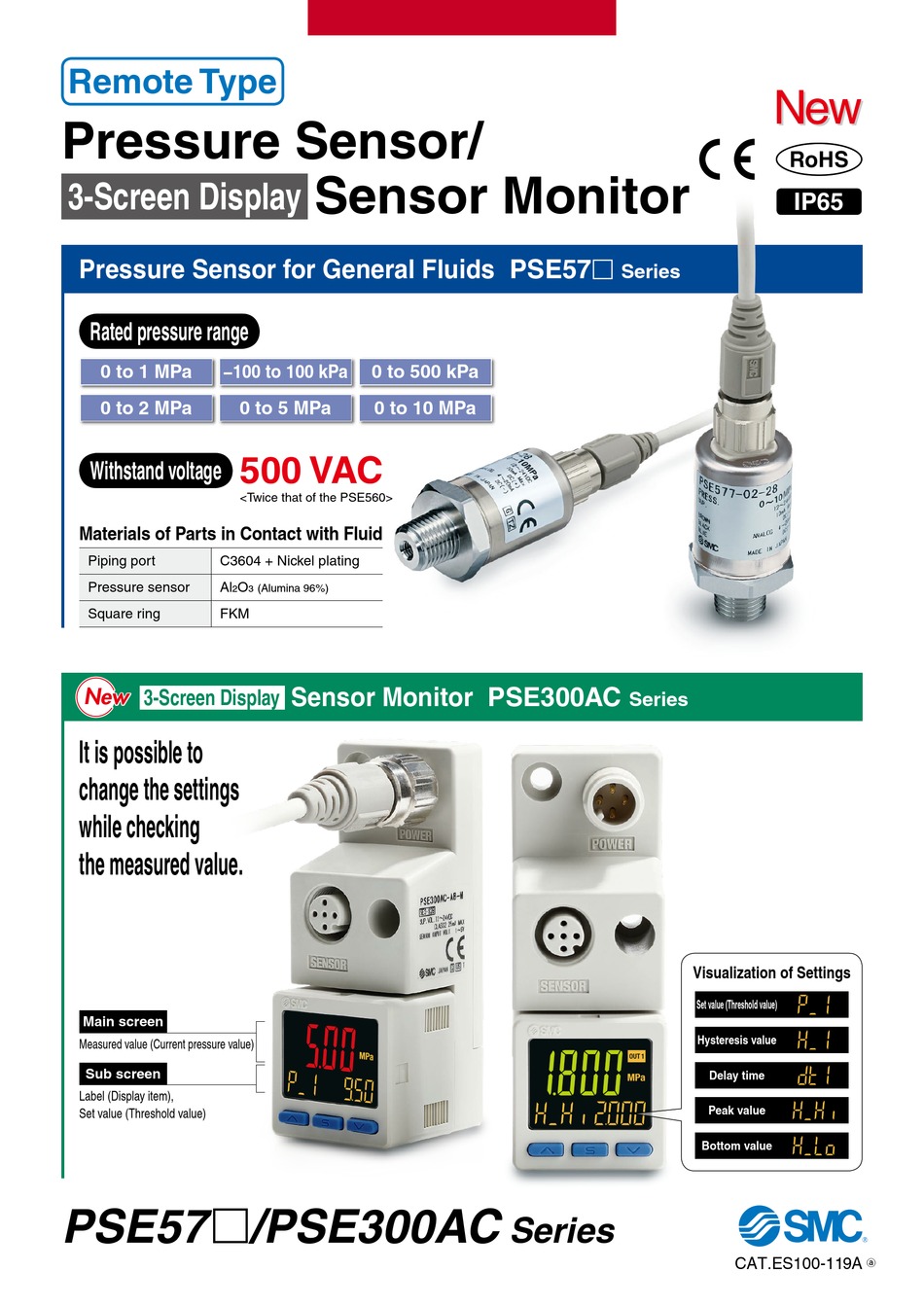

Remote Type
Pressure Sensor/
3-Screen Display

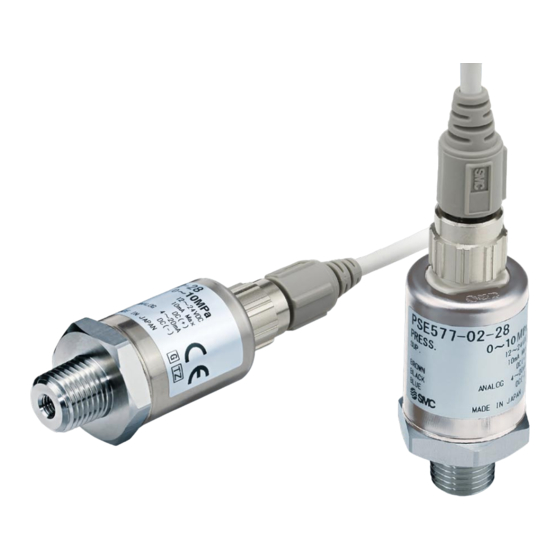

Pressure Sensor for General Fluids PSE57
Rated pressure range
0 to 1 MPa
−100 to 100 kPa
0 to 2 MPa
Withstand voltage
Materials of Parts in Contact with Fluid
Piping port
C3604 + Nickel plating
Pressure sensor
Al
2
Square ring
FKM
New
New
3-Screen Display
It is possible to
change the settings
while checking
the measured value.
Main screen
Measured value (Current pressure value)
Sub screen
Label (Display item),
Set value (Threshold value)
PSE57 /PSE300AC
Sensor Monitor
0 to 500 kPa
0 to 5 MPa
0 to 10 MPa
500 VAC
<Twice that of the PSE560>
O
(Alumina 96%)
3
Sensor Monitor PSE300AC
Series
Series
Series
RoHS
IP65
Visualization of Settings
Set value (Threshold value)
Hysteresis value
Delay time
Peak value
Bottom value
CAT.ES100-119A
a
Advertisement
Table of Contents
Related Manuals for SMC Networks PSE57 Series
Summary of Contents for SMC Networks PSE57 Series
- Page 1 Remote Type Pressure Sensor/ RoHS Sensor Monitor 3-Screen Display IP65 Pressure Sensor for General Fluids PSE57 Series Rated pressure range 0 to 1 MPa −100 to 100 kPa 0 to 500 kPa 0 to 2 MPa 0 to 5 MPa 0 to 10 MPa 500 VAC Withstand voltage...
- Page 2 Pressure Sensor for General Fluids PSE57 Series PSE570/573/574 PSE575/576/577 Materials of parts in Materials of parts in contact with fluid contact with fluid (1 MPa/100 kPa/500 kPa) (2 MPa/5 MPa/10 MPa) Pressure sensor Pressure sensor O-ring (Alumina 96%) Port size (Alumina 96%) + Grease...
-
Page 3: Screen Display
3-Screen Display Sensor Monitor PSE300AC Series Visualization of Settings Mode Examples Hysteresis mode The sub screen (label) PSE300AC Current model shows the item to be set. Set value Set value Normal output Reverse output (Threshold value) (Threshold value) Set hysteresis Hysteresis value Switches... - Page 4 Pressure Sensor for General Fluids PSE57 Series RoHS How to Order PSE57 0 Sensor range Option (Lead wire) Positive pressure [0 to 1 MPa] Lead wire and M12 connector Compound pressure [−100 to 100 kPa] (3 m), Straight Positive pressure [0 to 500 kPa] Positive pressure [0 to 2 MPa] Lead wire and M12 connector Positive pressure [0 to 5 MPa]...
-
Page 5: Analog Output
PSE57 Series Pressure Sensor for General Fluids Internal Circuits and Wiring Examples PSE57- PSE57--28 Brown DC (+) Brown DC (+) Voltage output type Current output type N.C. ∗ N.C. ∗ 1 to 5 V 4 to 20 mA 1 kΩ Black OUT Black OUT (Current output) –... -
Page 6: Sensor Monitor
Sensor Monitor 3-Screen Display PSE300AC Series RoHS How to Order PSE3 Input specification Output specification Voltage input Option (Power supply/Output lead wire) 2 output type (NPN or PNP switching type) Current input Straight lead wire Right angle lead wire Options/Part Nos. None Unit specification Description... - Page 7 PSE300AC Series Sensor Monitor 3-Screen Display Internal Circuits and Wiring Examples Setting of NPN open collector 2 outputs: Pressure sensor 3-wire type Setting of PNP open collector 2 outputs: Pressure sensor 3-wire type qDC (+) qDC (+) Brown DC (+) q Brown DC (+) q rAnalog rAnalog...
-
Page 8: Function Details
PSE300AC Series Function Details Auto-preset function (F4) The auto-preset function, when selected in the initial setting, calculates and stores the set value from the measured pressure. For example, if this function is used for suction verification, the optimum set value is determined automatically by repeating vacuum and break with the target workpiece several times. Suction Verification High Vacuum... - Page 9 PSE300AC Series Sensor Monitor 3-Screen Display Function Details Anti-chattering function (Simple setting mode or F1) A large bore cylinder or ejector consumes a large volume of air during operation and may experience a temporary drop in the supply pressure. This function prevents the detection of such temporary drops in the supply pressure as errors by changing the delay time setting. Available delay time settings 1 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, 5000 ms <Principle>...
- Page 10 Options / Connection Examples Power supply/Output lead wire ZS-31-C (Right angle 5 m) PSE300AC series ZS-31-B (Straight 5 m) To POWER To SENSOR PCA-1557743 (Assembly-type connector) Lead wire and M12 connector ZS-37-A (Straight 3 m) PCA-1557743 ZS-37-B (Right angle 3 m) (Assembly-type connector) PSE57...
-
Page 11: Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
