Summary of Product parts

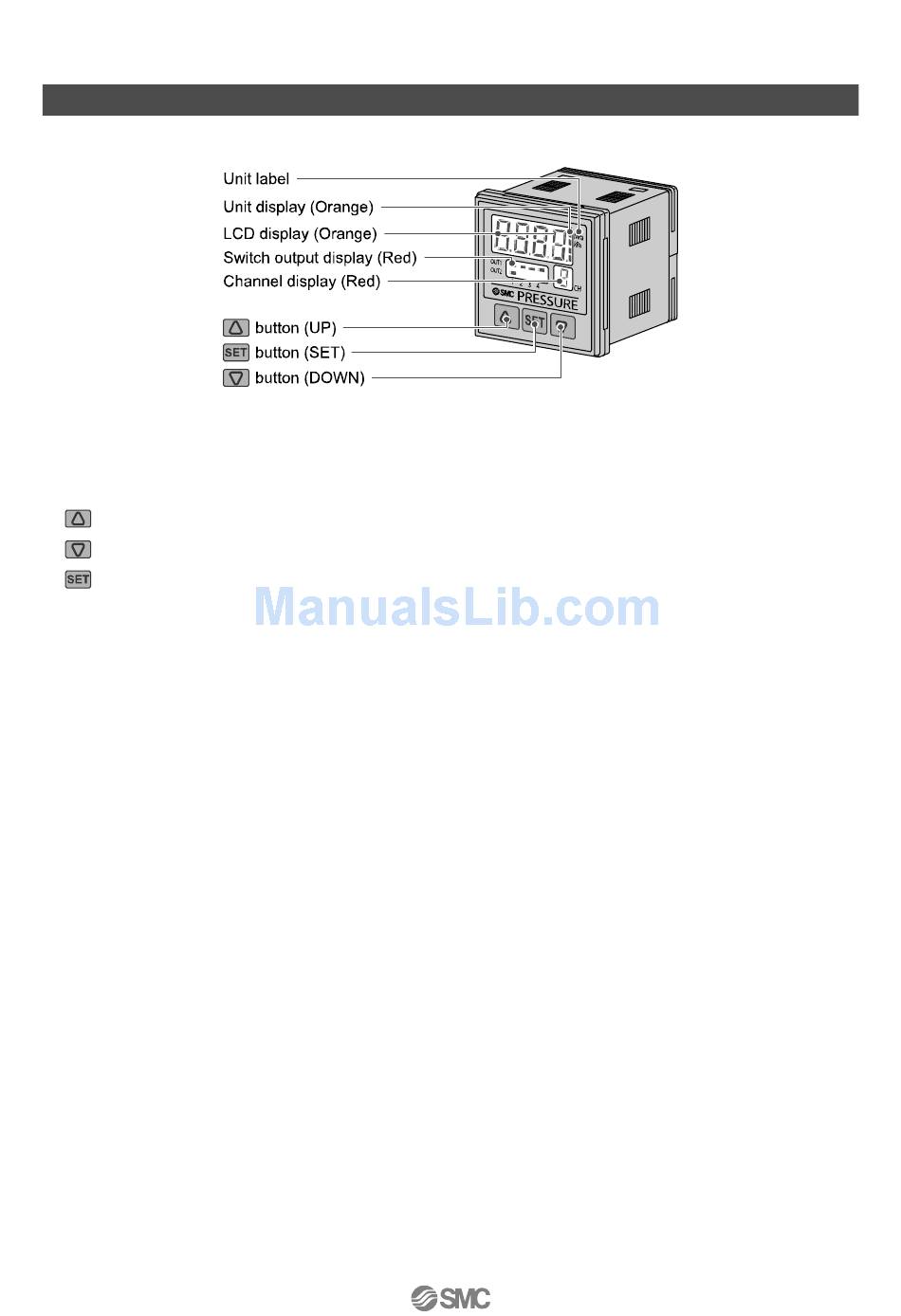

○Names of individual parts
Switch output display (Red): Lit when OUT1 (CH1 to CH4) and/or OUT2 (only CH1) is ON.
LCD display (Orange): Displays the current status of pressure, setting mode, selected indication unit and
button (UP): Selects a mode and increases a set ON/OFF value.
button (DOWN): Selects a mode and decreases a set ON/OFF value.
button (SET): Changes the mode and sets a set value.
Unit display (Orange): Lit ON the indicator of selected unit. For the Controller without unit selection function,
Unit label: Attach the unit label (kgf/cm
Channel display (Red): Indicate the CH1 to CH4 that is selected at that time.
error code.
the unit is fixed to SI (MPa or kPa).
2
, bar, psi, inHg, mmHg) with a unit selection function.
