■Wiring

○Connection
•Connections should only be made with the power supply turned off.
•Use separate routes for the Multi Channel Pressure Sensor Controller wiring and any power or high
voltage wiring. Otherwise, malfunction may result due to noise.
•Ensure that the FG terminal is connected to ground when using a commercially available switch-mode
power supply.
○Attaching the connector to the lead wire

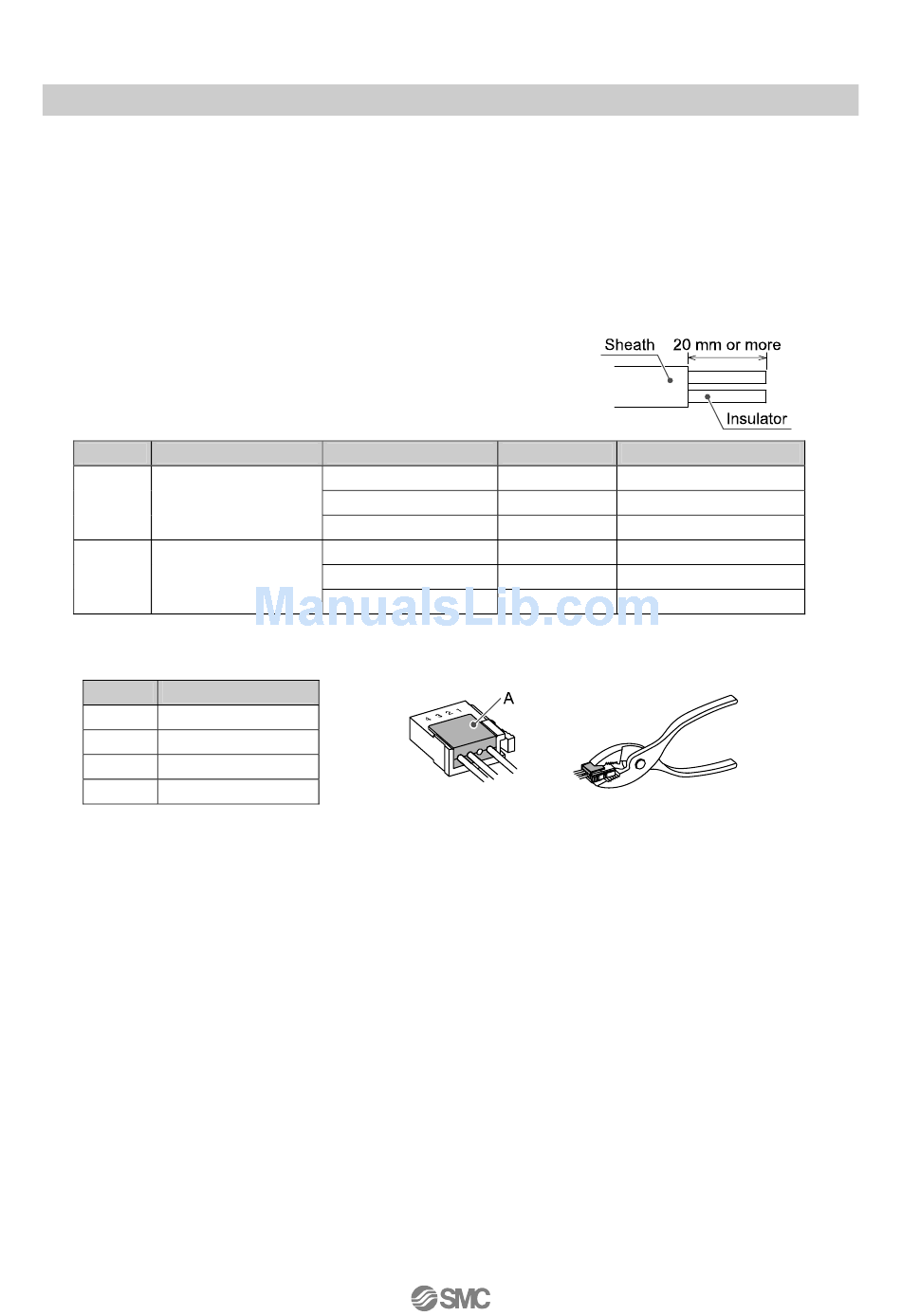

•Sensor wire is stripped as shown in the right figure.
(Refer to the table below for correspondence between connector
and electrical wire gauge.)
Lead wire table
AWG No. Conductor size (mm
26-24 0.14-0.2
(28)
22-20 0.3-0.5
•Do not cut the insulator.
•The core of the corresponding color shown in the following table is put into the pin of the number
stamped on the connector for sensor connection to the back.
Pin No. Wire color
1 Brown (DC+)
2
3 Blue (DC-)
4 Black (IN: 1 to 5 V)
•It checks that the above-mentioned preparation work has been performed correctly, and A part shown in
right figure is pushed by hand and makes temporary connection.
•A part center is straightly pushed in by tools, such as pliers.
•Re-use cannot be performed once it connects the connector for sensor connection completely. When you
fail in the connection mistake of a core and a pin, or the plug of wire, please use the new connector for
sensor connection.
•When the sensor is not connected correctly, [-----] or [---] can be displayed.
2
) Overall diameter (mm)
φ0.8 to φ1.0
φ1.0 to φ1.2
(0.08)
φ1.2 to φ1.6
φ1.0 to φ1.2
φ1.2 to φ1.6
φ1.6 to φ2.0
NC
Color of cover
Red
Yellow
Orange
Green
Blue
Gray
-15-
SMC product No. (1 pc.)
ZS-28-C
ZS-28-C-1
ZS-28-C-2
ZS-28-C-3
ZS-28-C-4
ZS-28-C-5
No.PS##-OMH0006-C
