Mounting and Installation
■Wiring
○Connector pin numbers

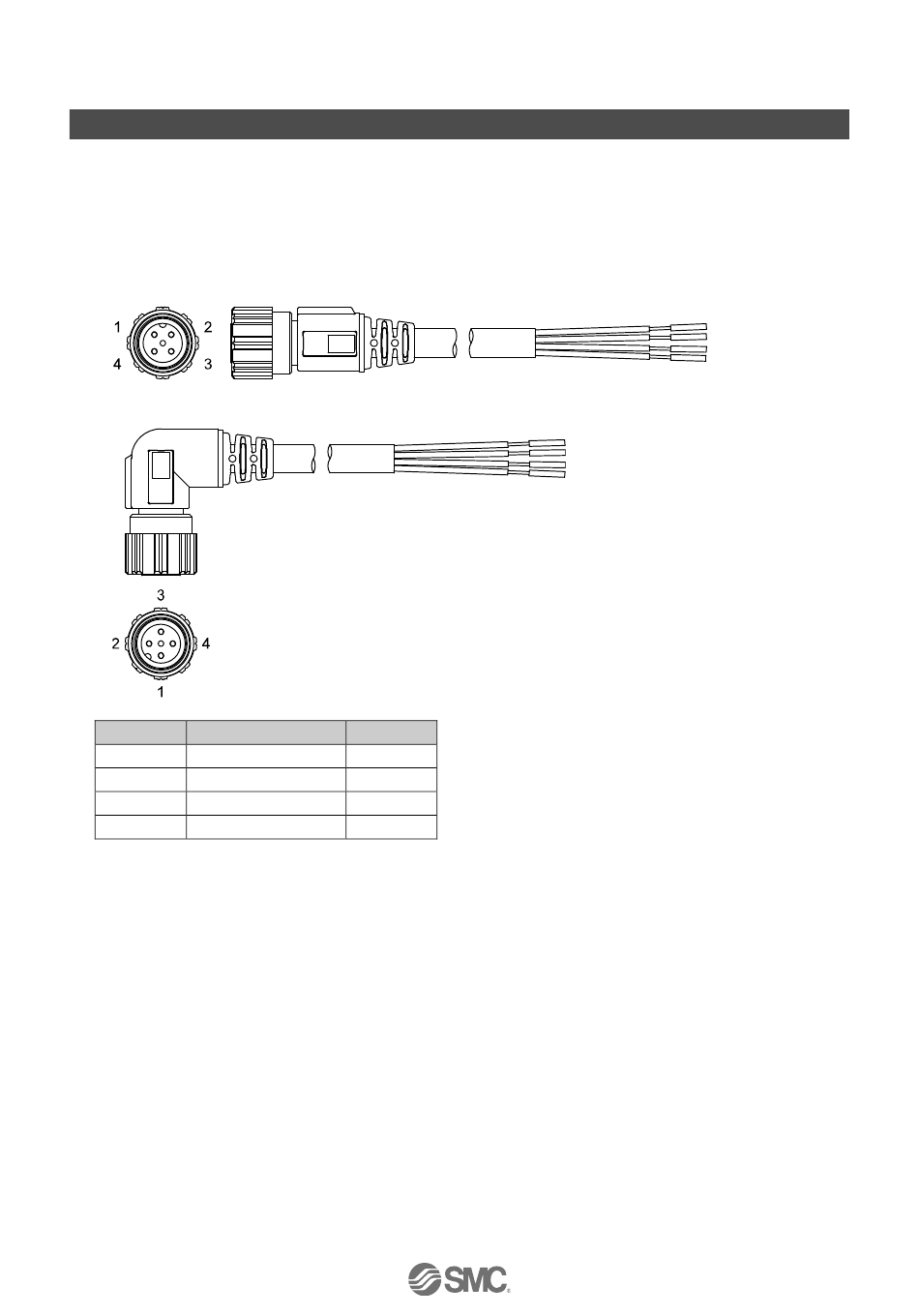

When the lead wire and connector (ZS-37-A or ZS-37-B) designated for the PSE570 is used, the wire
colours will apply as shown in the diagram.
Connector pin numbers (on the lead wire)
•ZS-37-A
•ZS-37-B
Pin No.
Content
1
DC(+)
2
N.C.
3
DC(-)
4
Analogue output
: The unconnected terminals are used in SMC, so please do not connect them.
Colour
Brown
White
Blue
Black
-10-
No.PS※※-OMT0006-B
