6.9.13 ADF hinge removal

Note: The removal shown is for the left ADF hinge. The right ADF hinge is removed in a similar manner.
1. Remove the ADF assembly. See

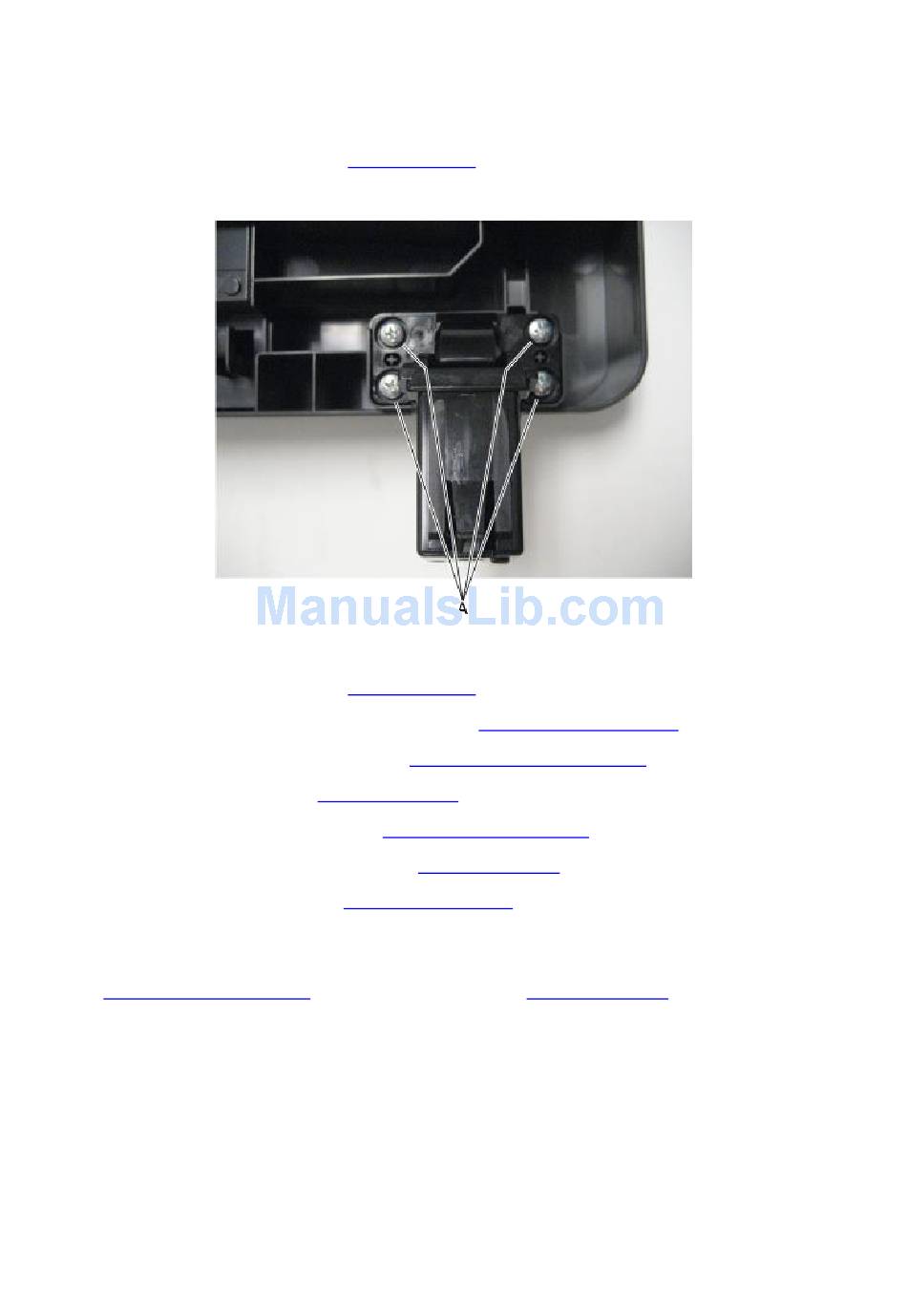

2. Remove the four screws (A) securing the ADF hinge to the ADF assembly.

6.9.14 Flatbed assembly removal

1. Remove the ADF assembly. See
2. Remove the scanner assembly from the MFP. See
3. Remove the control panel assembly. See
4. Remove the ADF cable. See
5. Remove the USB wireless cable. See
6. Remove the control panel USB cable. See
7. Remove the speaker cable. See
8. Remove the wireless control panel cover.
Installation note: After the new flatbed is installed, perform scanner manual registration, see
Scanner manual registration
